GS4.6AE SCHUKO GENERATOR

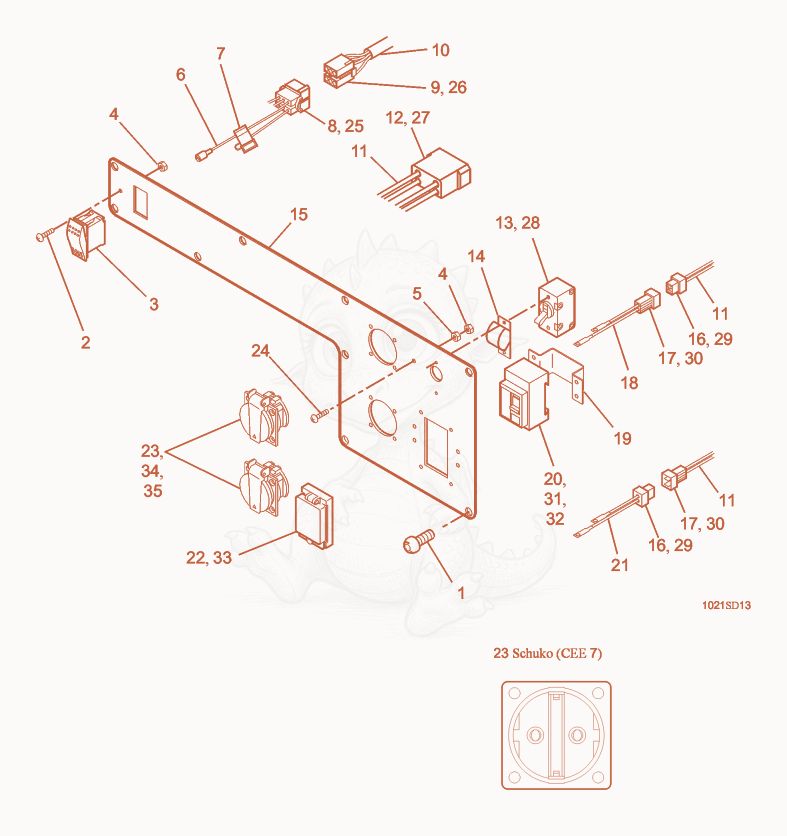

GS4.6AE Control Panel with Earth Leakage Circuit Breaker Diagram
- 15000085172Not stockedScrew×9
- SCREW M4 X 14 PHIL HD - 5000110405×1
- SWITCH-ROCKER,DPDT - 5000087078×1
- NUT-LOCK M4 HEX. - 5000010370×2
- NUT M4 8,HEX. - 5000010872×1
- 65000086159Not stockedWiring harness×1
- FUSE 15AMP,BLADE TYPE - 5000077219×1
- HOUSING-PLUG,6 PIN - 5000089113×1
- HOUSING-SOCKET,6 PIN - 5000089115×1
- 105000086156Not stockedWiring harness×1
- 115000110470Not stockedWiring harness×1
- HOUSING-CONNECTOR 4 POLE,PLG - 5000112058×1
- BREAKER-CIRCUIT,1-POLE,20A - 5000110362×1
- 145000111919Not stockedCover×1
- 155000110379Not stockedControl panel×1
- 165000112055Not stockedConnector housing×2
- HOUSING-CONNECTOR 2 POLE,PLG - 5000112056×2
- 185000110472Not stockedWiring harness×1
- 195000110476Not stockedBracket×1
- 205000110369Not stockedCircuit breaker×1
- 215000110473Not stockedWiring harness×1
- 225000110366Not stockedCover×1
- RECEPTACLE-SHKO,230V,16A,IP44 - 5000110358×2
- SCREW M4 X 20 PHIL HD - 5000110951×1
- 255000089114Not stockedPin×5
- SLEEVE 20-14 GA .084 DIA. - 5000089116×5
- 275000083679Not stockedTerminal×4
- SCREW M3 X 6 - 5000088237×2
- 295000088514Not stockedReceptacle terminal×2
- 305000083679Not stockedTerminal×2
- SCREW M4 X 14 PHIL HD - 5000110405×4
- NUT-LOCK M4 HEX. - 5000010370×4
- SCREW M3 X 8 C PHIL HD - 5000110636×4
- SCREW M4 X 14 PHIL HD - 5000110405×8
- NUT-LOCK M4 HEX. - 5000010370×8
