GPS8500-GENERATOR, NON-CARB

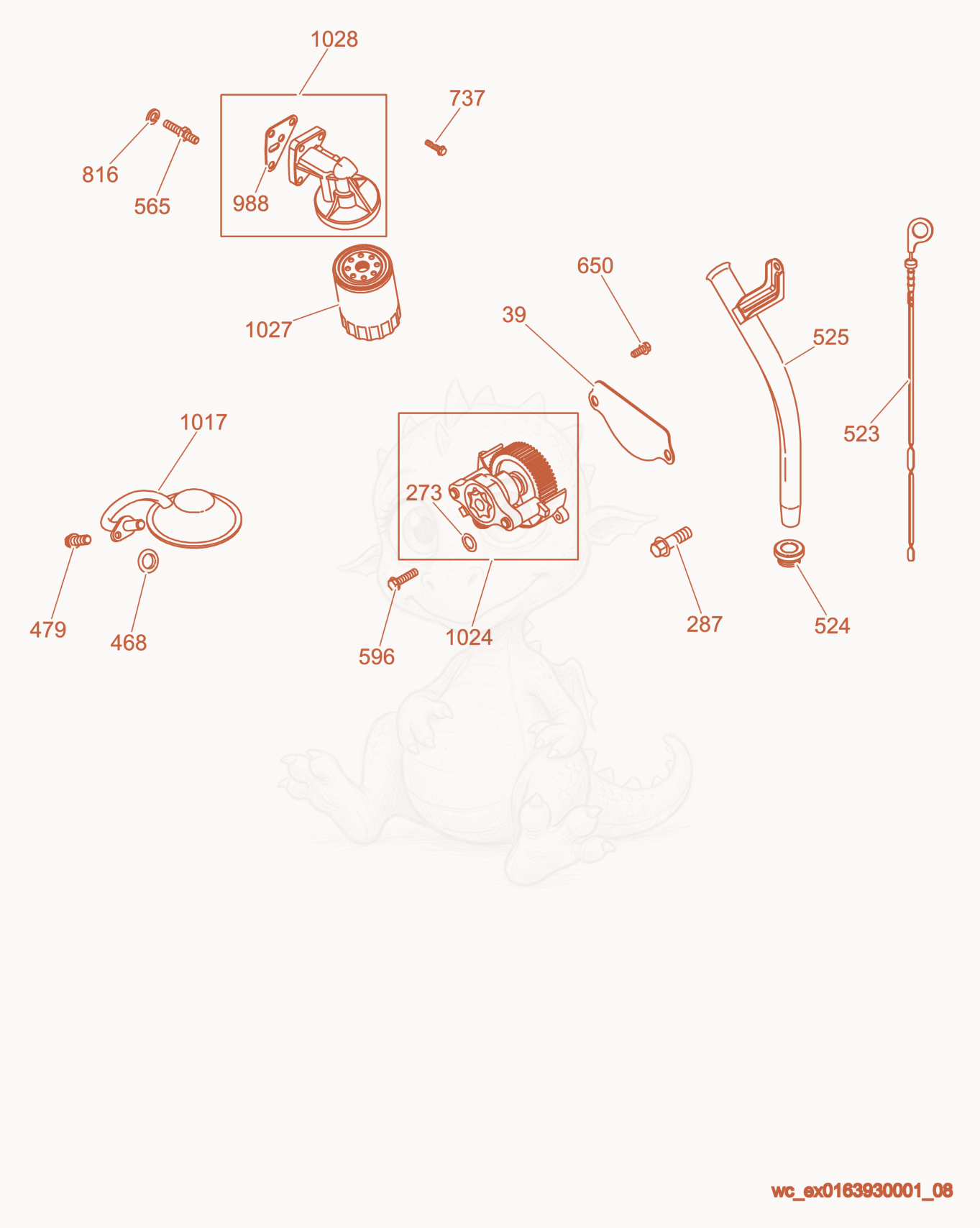

GPS8500 Dipstick/Oil Pump Diagram
- Plate - 5000110083×1
- O-ring - 5000118433×2
- screw - 5000118487×1
- O-ring - 5000118439×1
- 4795000080931Not stockedScrew×1
- Dipstick - 5000116503×1
- SEAL - DIPSTICK TUBE - 5000116501×1
- TUBE-OIL FILL - 5000116502×1
- Stud - 5000081025×2
- Screw - 5000118471×1
- 6505000208223Not stockedScrew×2
- Screw w/washer - 5000118431×3
- WASHER-LOCK - 5000081026×2
- GASKET-OIL ADAPTER - 5000079752×1
- COVER-OIL PUMP - 5000118459×1
- 10245000118501Not stockedOil pump×1
- 10275000160161Not stockedOil filter×1
- 10285000081023Not stockedAdapter×1
