GP5600A-PORTABLE GENERATOR

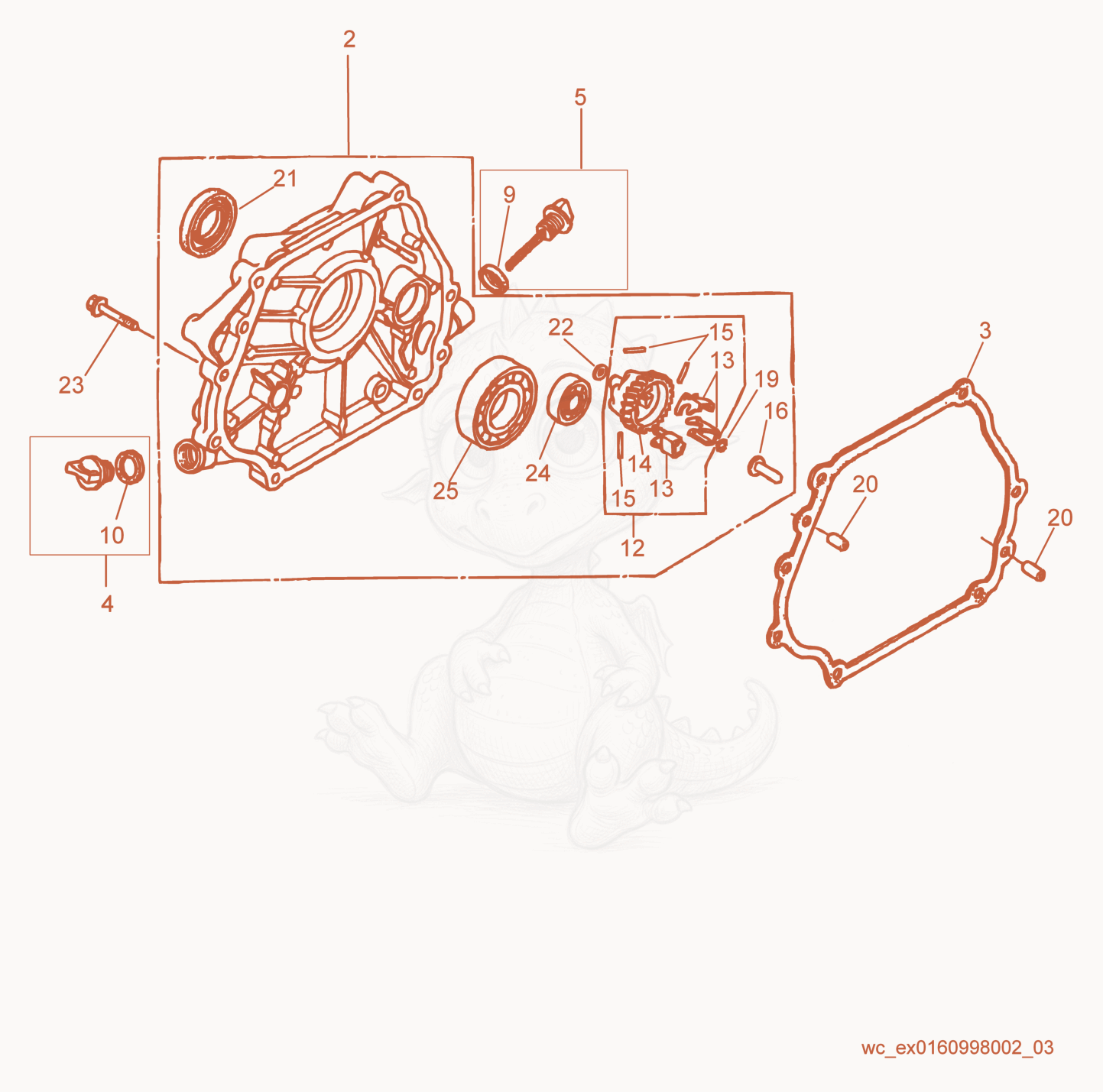

GP5600A Crankcase Cover Diagram

Exploded parts diagram of the Crankcase Cover of a Wacker Neuson GP5600A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25000082820Not stocked
    Cover×1
  • 35000082821Price
    GASKET-ENGINE CYLINDER COVER - 5000082821×1
  • 45000110111Price
    PLUG-OIL FILLER - 5000110111×1
  • 55000110113Price
    DIPSTICK-OIL - 5000110113×1
  • 95000070971Price
    GASKET - 5000070971×1
  • 105000070971Price
    GASKET - 5000070971×1
  • 125000082828Price
    GOVERNOR-ASSEMBLY - 5000082828×1
  • 135000075788Price
    WEIGHT-GOVERNOR - 5000075788×3
  • 145000082829Price
    HOLDER-GOVERNOR WEIGHT - 5000082829×1
  • 155000074634Price
    PIN-GOVERNOR WT RETAINER - 5000074634×3
  • 165000074632Price
    SLIDER-ENGINE GOVERNOR - 5000074632×1
  • 195000081615Price
    RET.RING 7.7MM,FORM C - 5000081615×1
  • 205000081617Price
    PIN 8 X 12,DOWEL - 5000081617×2
  • 215000075792Price
    SEAL-SHAFT 35 X 52 X 8,4B - 5000075792×1
  • 225000071639Price
    WASHER 6MM,PLAIN - 5000071639×1
  • 235000116734Price
    BOLT-FLANGE 8 X 40 - 5000116734×7
  • 245000074640Price
    BEARING-RADIAL BALL,6202 - 5000074640×1
  • 255000075801Price
    BEARING-RADIAL BALL,6207 - 5000075801×1
