GP5600A Generator, EPA w/Wheel Kit

GP5600 Piston Diagram

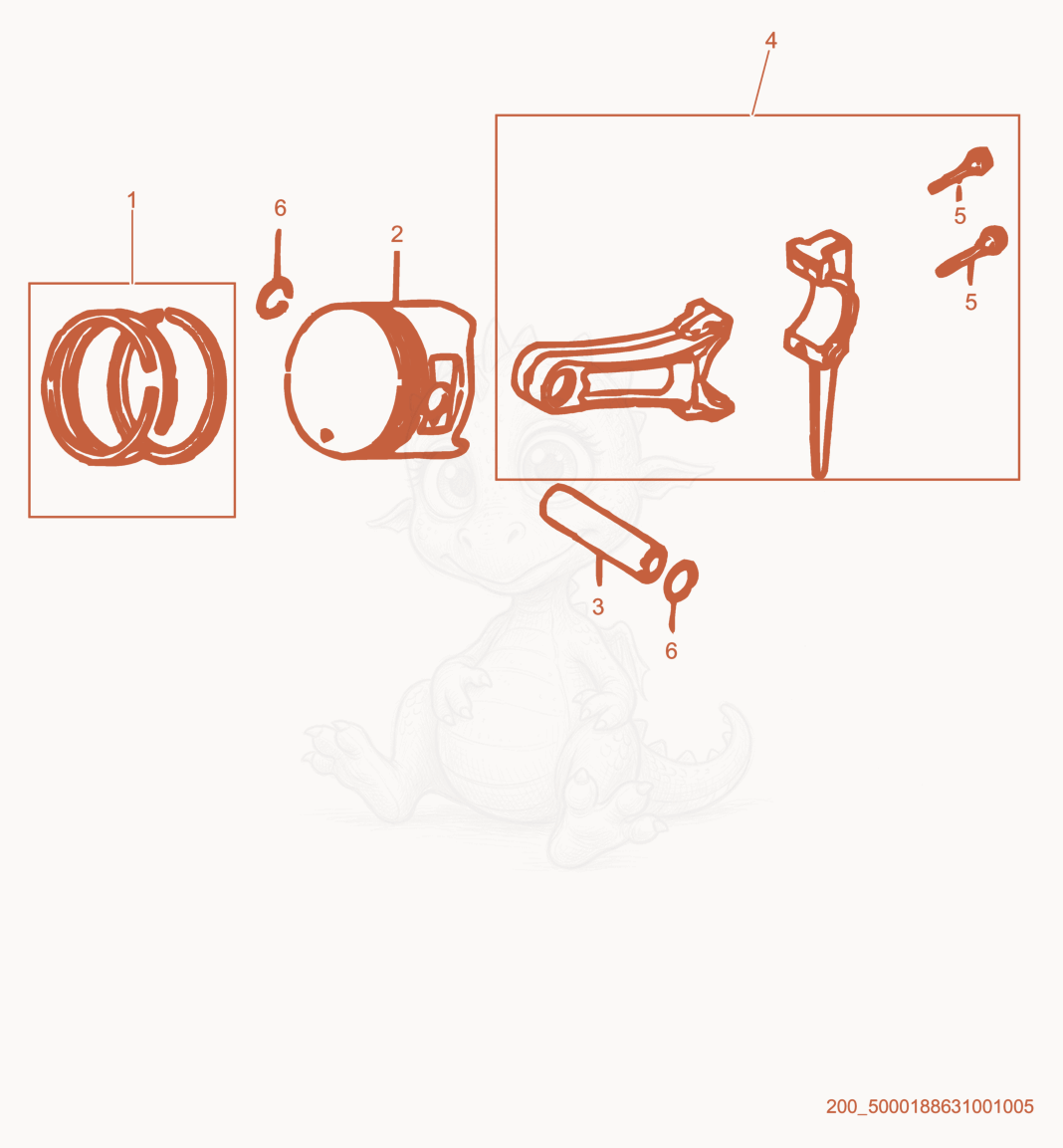

Exploded parts diagram of the Piston of a Wacker Neuson GP5600, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000217425Price
    PISTON RING SET(STD) - 5000217425Unknown×1
  • 15000217428Price
    PISTON RING SET(0.25) - 5000217428Unknown×1
  • 15000217431Price
    PISTON RING SET(0.50) - 5000217431Unknown×1
  • 15000217434Not stocked
    Set-piston rings×1
  • 25200000486Not stocked
    Piston×1
  • 25200000487Price
    Piston, .25 - 5200000487×1
  • 25200000488Price
    Piston (0.50) - 5200000488×1
  • 25200000489Price
    Piston, .75 - 5200000489×1
  • 35200000490Price
    Pin-piston - 5200000490×1
  • 45200000491Price
    Connecting rod cpl. (STD) - 5200000491×1
  • 45200000540Price
    Connecting rod cpl. (0.25 UNDER SIZE) - 5200000540×1
  • 55000075807Price
    SCREW-CONNECTING ROD - 5000075807×2
  • 65000075804Price
    RET.RING 22.44MM,FORM C - 5000075804×2
