GP3800A Generator, EPA

GP3800 Cylinder cpl. Diagram

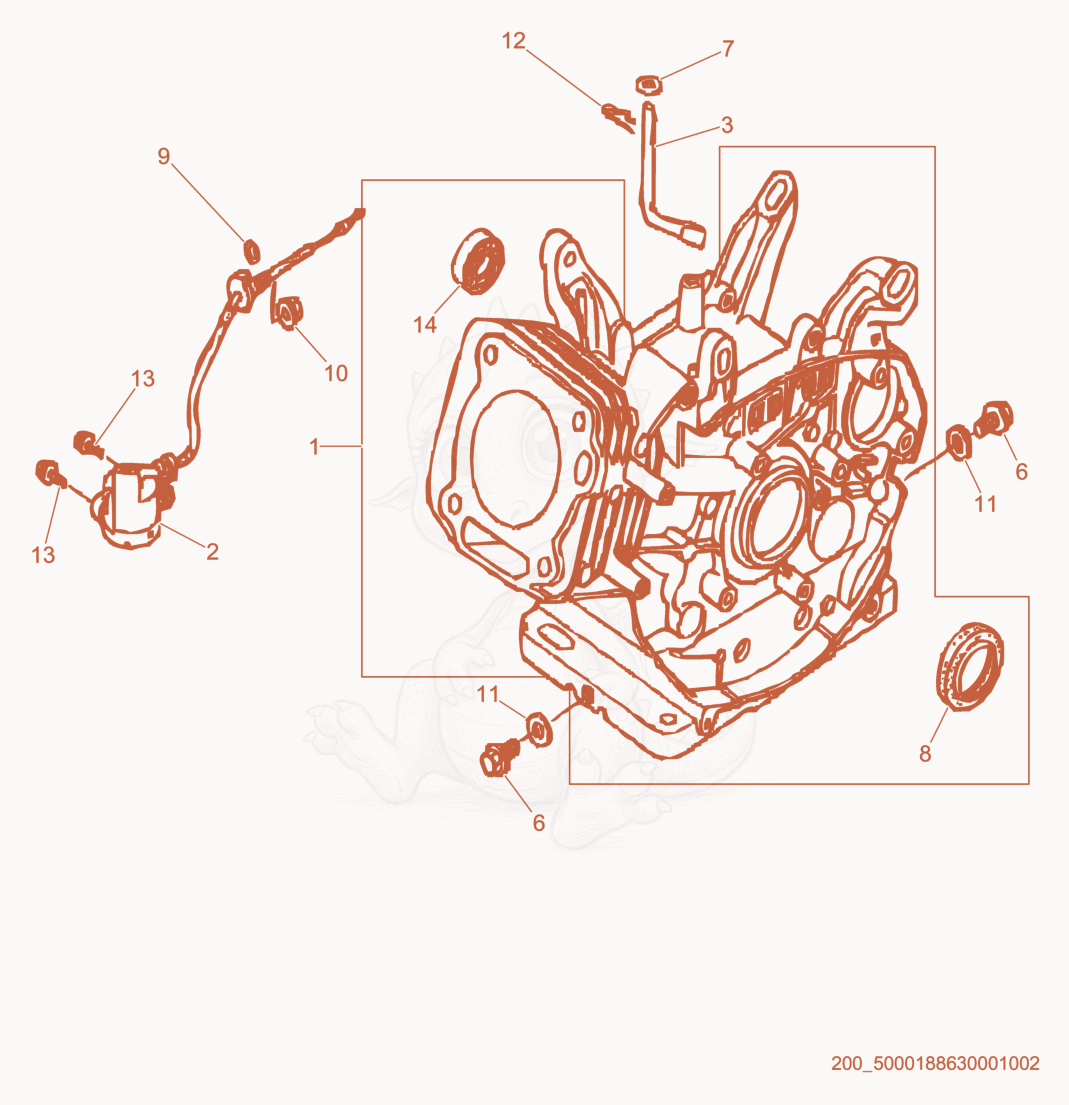

Exploded parts diagram of the Cylinder cpl. of a Wacker Neuson GP3800, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25000217492Price
    Switch oil safety - 5000217492×1
  • 35000074641Price
    Shaft - 5000074641×1
  • 75000074656Price
    Washer - 5000074656×1
  • 85000217495Price
    SEAL-ROTARY SHAFT 25 X 41 X 6 - 5000217495×1
  • 95000071082Price
    O-RING 14 X 1.3 - 5000071082×1
  • 105000072332Not stocked
    Flange nut×1
  • 115000053994Price
    SEAL-RING 12MM - 5000053994×2
  • 125000110110Price
    PIN-COTTER 10MM - 5000110110×1
  • 135000072333Price
    SCREW M6 X 12,HX.FLANGE - 5000072333×2
  • 145000074640Price
    BEARING-RADIAL BALL,6202 - 5000074640×1
