GP2600 GEN NON-CARB

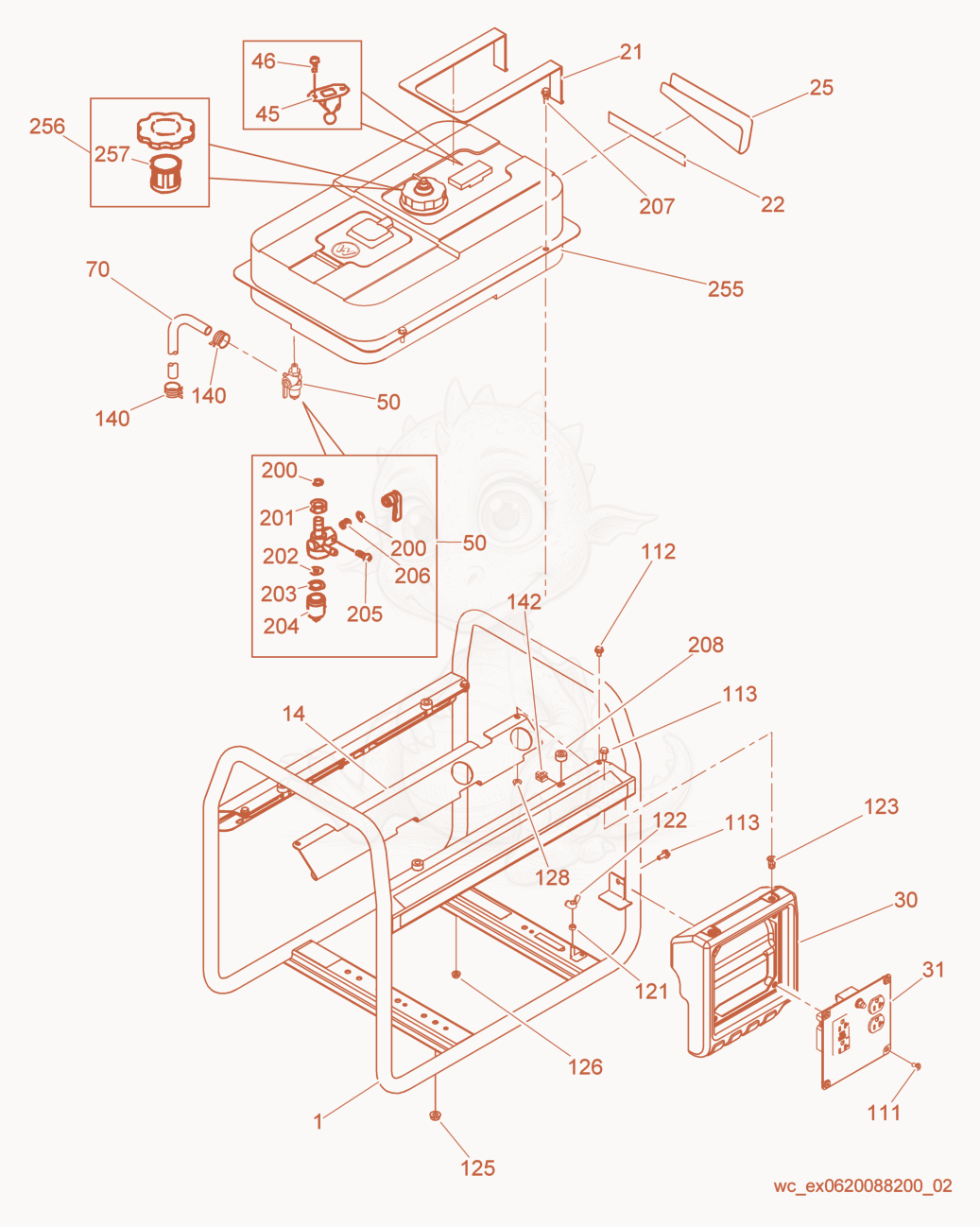

GP2600 Fuel Tank/Control Box/Frame Diagram
- 15000165333Not stockedFrame×1
- 145000171006Not stockedSupport bracket×2
- GASKET-TANK,DEFLECTOR,TOP - 5000172791×1
- GASKET-TANK,DEFLECTOR - 5000172793×1
- PANEL-FUEL DEFLECTOR - 5000172950×1
- BOX-CONTROL,SMALL,GP - 5000162719×1
- 315000171653Not stockedControl panel×1
- 455000213426Not stockedFuel gauge×1
- 465000215587Not stockedScrew×2
- STRAINER-FUEL - 5000084380×1
- 705000217786Not stockedFuel hose×1
- SCREW M6X10,SBHD,FLGE 10.9,BC - 5000162712×4
- SCREW M6 X 10,HX.HD,SER.FLG - 5000073164×6
- SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×3
- NUT M6 8,HEX - 5000010880×1
- NUT-WING M6,STAINLESS STEEL - 5000010895×1
- NUT-JACK THD.,INSERT - 5000089386×3
- NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×3
- NUT-LOCK M6,HEX,SERR,FLANGE - 5000029117×2
- NUT M6,FLANGED - 5000155519×6
- 1405000156532Not stockedHose clamp×2
- 1425000170184Not stockedClip nut×5
- 2005000205669Not stockedO-Ring×2
- 2015000213425Not stockedLock nut×1
- 2025000213424Not stockedFuel filter screen×1
- 2035000213423Not stockedO-Ring×1
- 2045000213422Not stockedCup×1
- 2055000205668Not stockedScrew×1
- 2065000205671Not stockedSpring×1
- 2075000215588Not stockedFlange bolt×4
- GASKET-RUBBER - 5000215589×4
- 2555000213435Not stockedFuel tank×1
- 2565000205144Not stockedTank cap×1
- FILTER-ENGINE FUEL - 5000053660×1
