GN165 Generator,Standard

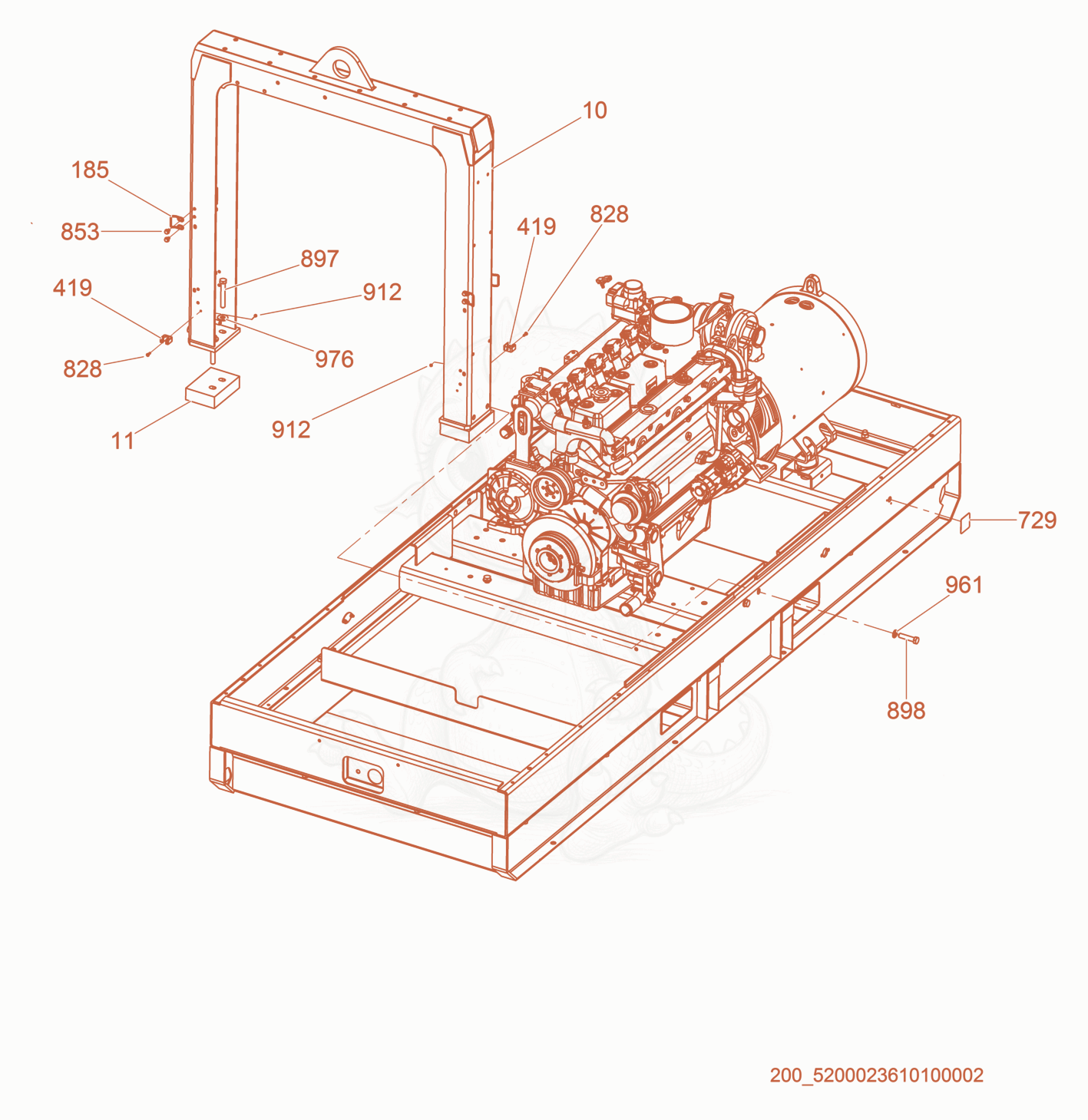

GN165 Lifting Device Diagram

Exploded parts diagram of the Lifting Device of a Wacker Neuson GN165, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 105200006402Price
    FRAME-LIFT STRUCTWLDMNT, P- 5000112007 - 5200006402×1
  • 205200023926Not stocked
    Spacer-Base,Lft Strt,GN180 P-500011200×2
  • 1855000158982Price
    LATCH STRIKE,WIRE - 5000158982×4
  • 4195000153747Price
    CLIP-SPRING HOLDER - 5000153747×2
  • 7295200022821Price
    LABEL-BLACK - 5200022821×1
  • 8285000154516Price
    SCREW M5X16-4.8-H PAN HD ZP - 5000154516×2
  • 8535000157021Price
    SCREW M8 X 14,HX.HD,SERR.FLG - 5000157021×8
  • 8975000011384Price
    SCREW M16 X 110 HX.HD. - 5000011384×4
  • 8985000011378Not stocked
    Hexagonal head cap screw×4
  • 9125000010369Price
    NUT-LOCK M5 HEX. - 5000010369×1
  • 9615000010618Price
    WASHER B17 FLAT - 5000010618×4
  • 9765000153532Price
    WASHER-LOCK M16 CON SPR,MZP - 5000153532×4
