G70 GENERATOR,URI 600V

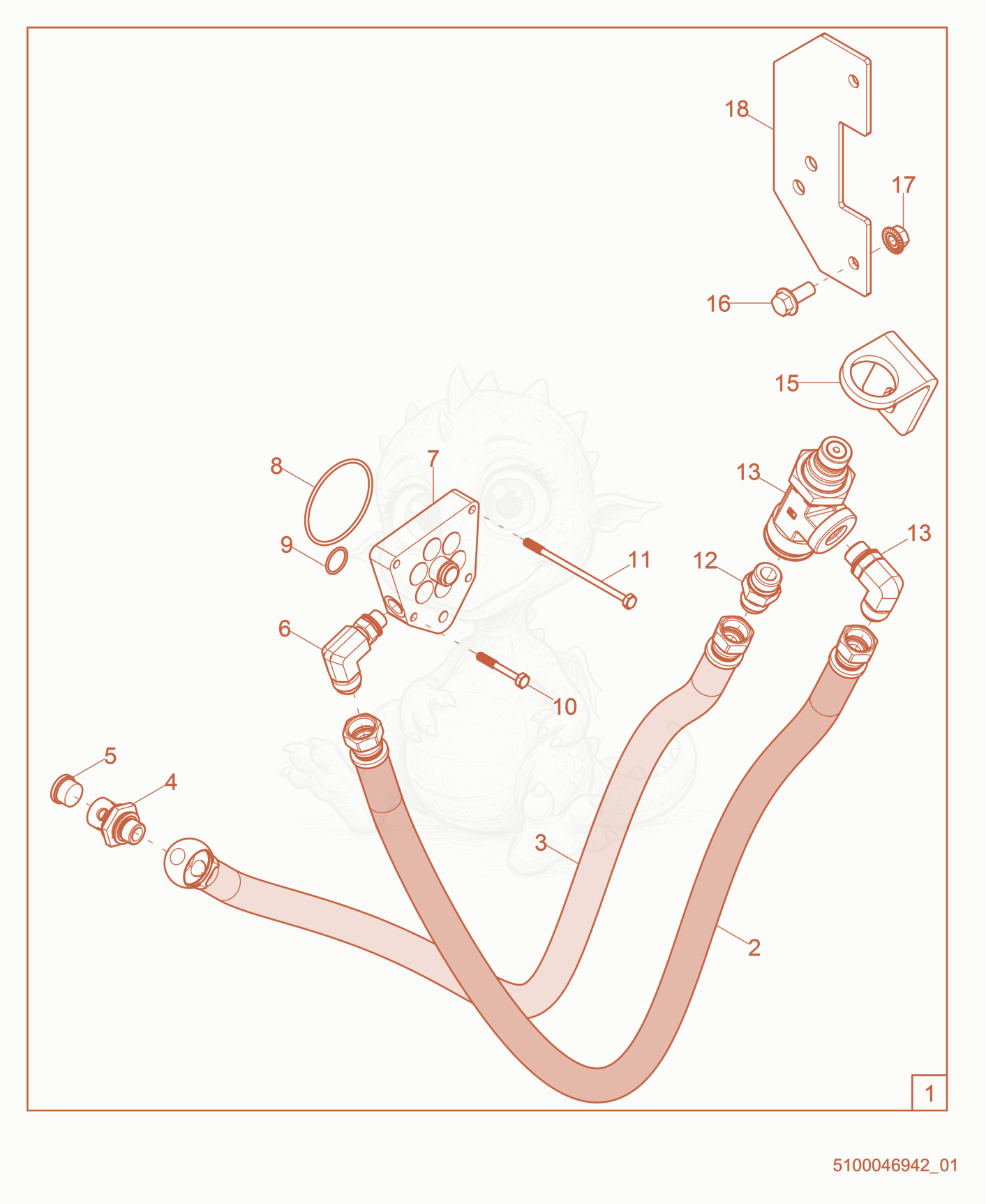

G70 Oil Drain Quick Fit Diagram

Exploded parts diagram of the Oil Drain Quick Fit of a Wacker Neuson G70, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100045105Not stocked
    Quick Fit Kit×1
  • 25100046059Not stocked
    oil hose×1
  • 35100046095Not stocked
    Oil Hose×1
  • 45100046171Not stocked
    Banjo fitting×1
  • 55100046170Not stocked
    Banjo fitting×1
  • 65100046091Not stocked
    Elbow fitting×1
  • 75100046090Not stocked
    Adapter×1
  • 85100046172Not stocked
    O-Ring×1
  • 95100046094Not stocked
    O-Ring×1
  • 105100046092Not stocked
    Screw×2
  • 115100046093Not stocked
    Screw×2
  • 125100044995Not stocked
    Adapter fitting×1
  • 135100044994Price
    ADAPTER, 90, 8M STOR,10M JIC - 5100044994×1
  • 145100044991Price
    VALVE, 1/2, #10 - 5100044991×1
  • 155100044990Not stocked
    Bracket×1
  • 165000116164Price
    SCREW M10X25 HEX,SER.FLG ZP - 5000116164×2
  • 175000089316Price
    NUT-LOCK M10,SERR.,FLANGE - 5000089316×2
  • 185100045103Price
    BRACKET-RPM QC,MG,MED P-5000112007 - 5100045103×1
