G70 Generator, URI CW T4F

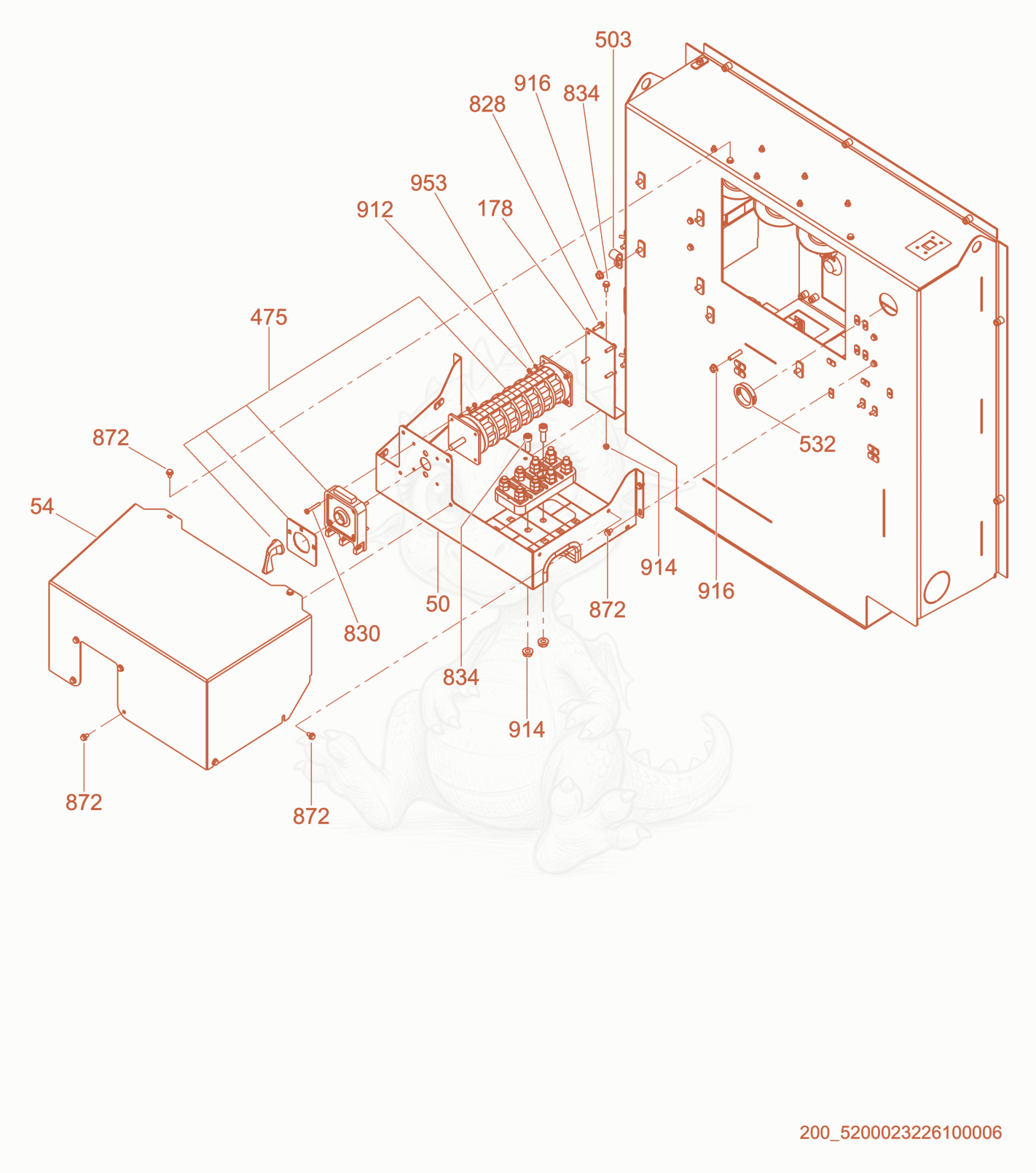

G70 Voltage Selector Switch Box Diagram

Exploded parts diagram of the Voltage Selector Switch Box of a Wacker Neuson G70, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 505100015744Price
    Panel-SS Box Bottom,ML P-176420 - 5100015744×1
  • 545100015743Price
    Panel-SS Box Top,ML P-176420 - 5100015743×1
  • 1785200024218Price
    Brket-Selector Swch Rear,25A P5000175420 - 5200024218×1
  • 4755000153059Not stocked
    Phase switch×1
  • 5035000153746Price
    CLAMP-TUBING .625 - 5000153746×1
  • 5325000153092Price
    BUSHING 1-5/8 IN. I.D. - 5000153092×1
  • 8285000154516Price
    SCREW M5X16-4.8-H PAN HD ZP - 5000154516×4
  • 8305000154518Price
    SCREW M5X35-4.8-H PAN HD ZP - 5000154518×4
  • 8345000029116Price
    SCREW M6 X 1 X 20,FLANGE LOCK - 5000029116×3
  • 8725000073164Price
    SCREW M6 X 10,HX.HD,SER.FLG - 5000073164×14
  • 9125000010369Price
    NUT-LOCK M5 HEX. - 5000010369×8
  • 9145000029117Price
    NUT-LOCK M6,HEX,SERR,FLANGE - 5000029117×3
  • 9165000030066Price
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×2
  • 9535000010625Price
    WASHER B5.3 FLAT - 5000010625×8
