G50-GENERATOR,SKID BASE

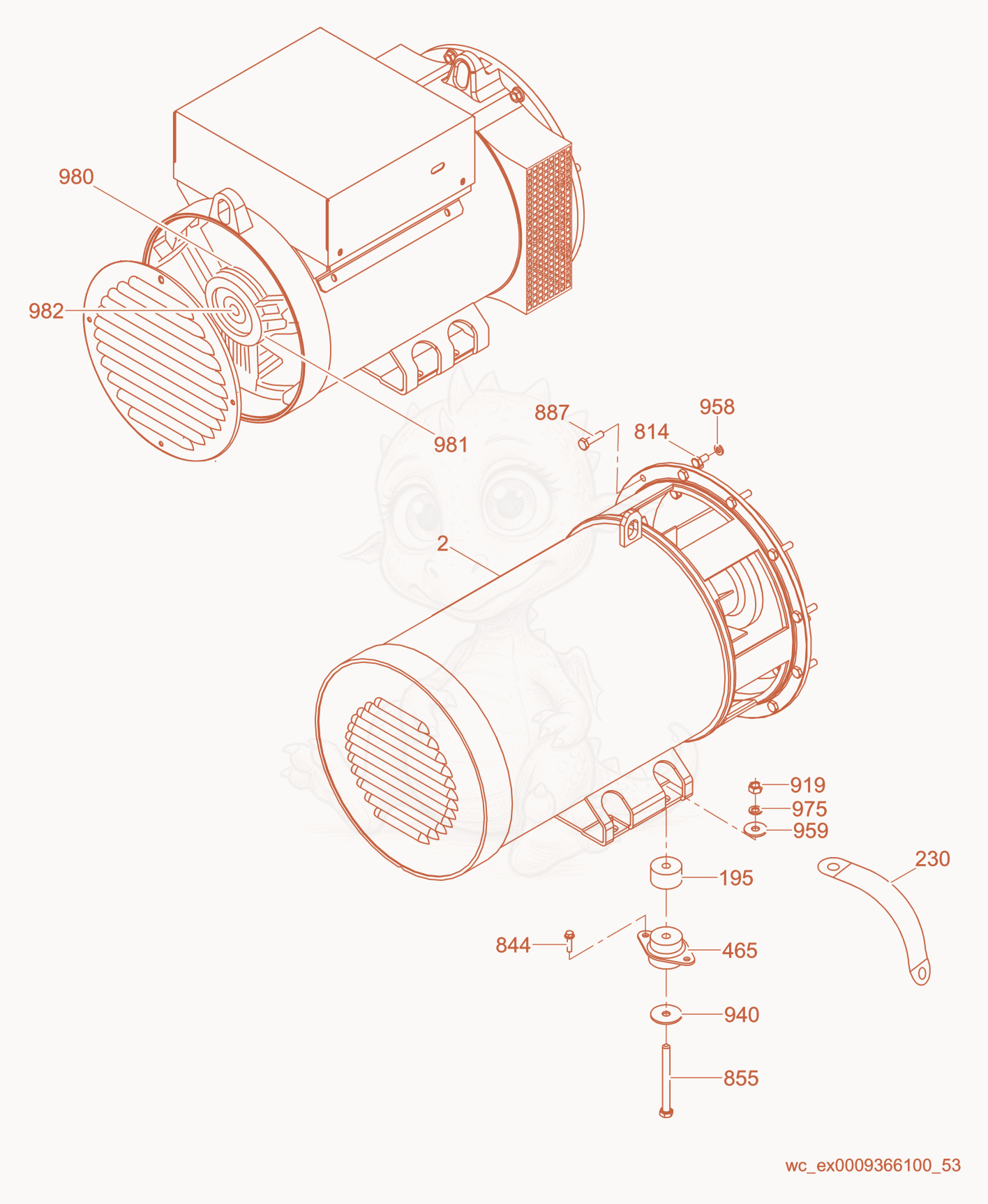

G50 Generator Mount cpl. Diagram

Exploded parts diagram of the Generator Mount cpl. of a Wacker Neuson G50, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25000176363Not stocked
    Generator cpl.×1
  • 1955000160696Price
    SPACER-DIA. 50 X 28.6 - 5000160696×1
  • 2305000152978Price
    STRAP-GROUND 10 - 5000152978×1
  • 4655000153064Not stocked
    Shockmount-rubber×2
  • 8145000155253Price
    SCREW 3/8-16X.75 HX HD GR8 PLN - 5000155253×8
  • 8445000154521Price
    SCREW M10X20-10.9 HX SFLG MZP - 5000154521×4
  • 8555000047860Price
    SCREW M12X130 HXHD - 5000047860×2
  • 8875000164524Price
    SCREW M10X40-10.9,SOC HD,PLAIN - 5000164524×12
  • 9195000010884Price
    NUT M12 8,HEX - 5000010884×2
  • 9405000153066Price
    WASHER-SNUBBER - 5000153066×2
  • 9585000154530Price
    WASHER M10 HARDENED BLK TP 200 - 5000154530×8
  • 9595000010376Price
    WASHER A13 FLAT - 5000010376×2
  • 9755000012648Price
    WASHER-LOCK B12 - 5000012648×2
  • 9805000176415Price
    KIT-DIODE,GENERATOR END - 5000176415×1
  • 9815000183341Price
    EXCITER STATOR - 5000183341×1
  • 9825000183344Price
    BEARING-REAR - 5000183344×1
