G4.6AE SCHUKO GENERATOR

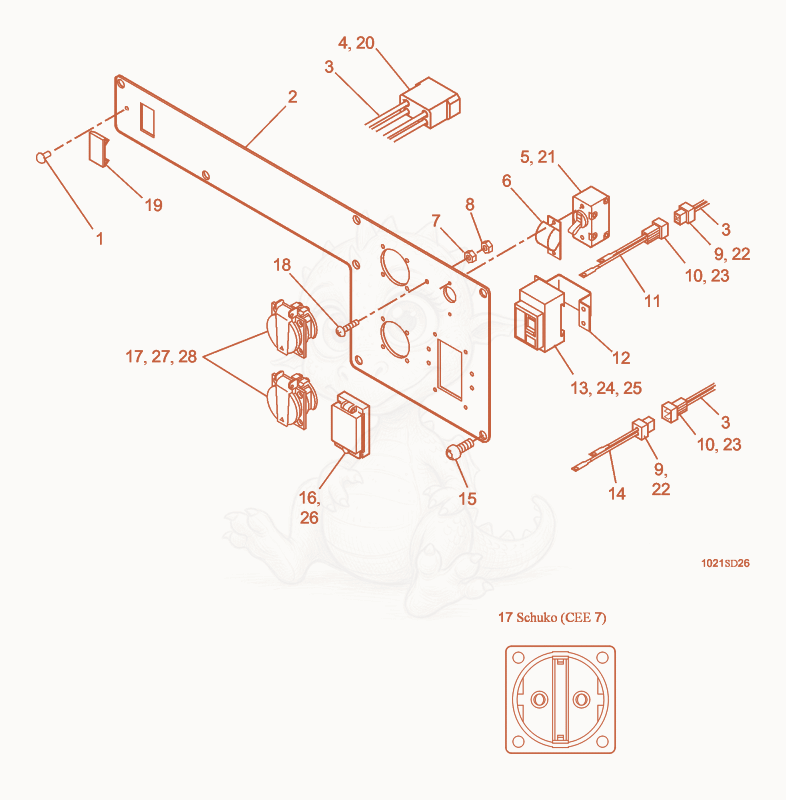

G4.6AE Control Panel with Earth Leakage Circuit Breaker Diagram
- 15000111204Not stockedCap plug×1
- 25000110379Not stockedControl panel×1
- 35000110470Not stockedWiring harness×1
- HOUSING-CONNECTOR 4 POLE,PLG - 5000112058×1
- BREAKER-CIRCUIT,1-POLE,20A - 5000110362×1
- 65000111919Not stockedCover×1
- NUT M4 8,HEX. - 5000010872×1
- NUT-LOCK M4 HEX. - 5000010370×1
- 95000112055Not stockedConnector housing×2
- HOUSING-CONNECTOR 2 POLE,PLG - 5000112056×2
- 115000110472Not stockedWiring harness×1
- 125000110476Not stockedBracket×1
- 135000110369Not stockedCircuit breaker×1
- 145000110473Not stockedWiring harness×1
- 155000085172Not stockedScrew×9
- 165000110366Not stockedCover×1
- RECEPTACLE-SHKO,230V,16A,IP44 - 5000110358×2
- SCREW M4 X 20 PHIL HD - 5000110951×1
- 195000110747Not stockedCover×1
- 205000083679Not stockedTerminal×4
- SCREW M3 X 6 - 5000088237×2
- 225000088514Not stockedReceptacle terminal×2
- 235000083679Not stockedTerminal×2
- SCREW M4 X 14 PHIL HD - 5000110405×4
- NUT-LOCK M4 HEX. - 5000010370×4
- SCREW M3 X 8 C PHIL HD - 5000110636×4
- SCREW M4 X 14 PHIL HD - 5000110405×8
- NUT-LOCK M4 HEX. - 5000010370×8
