G35

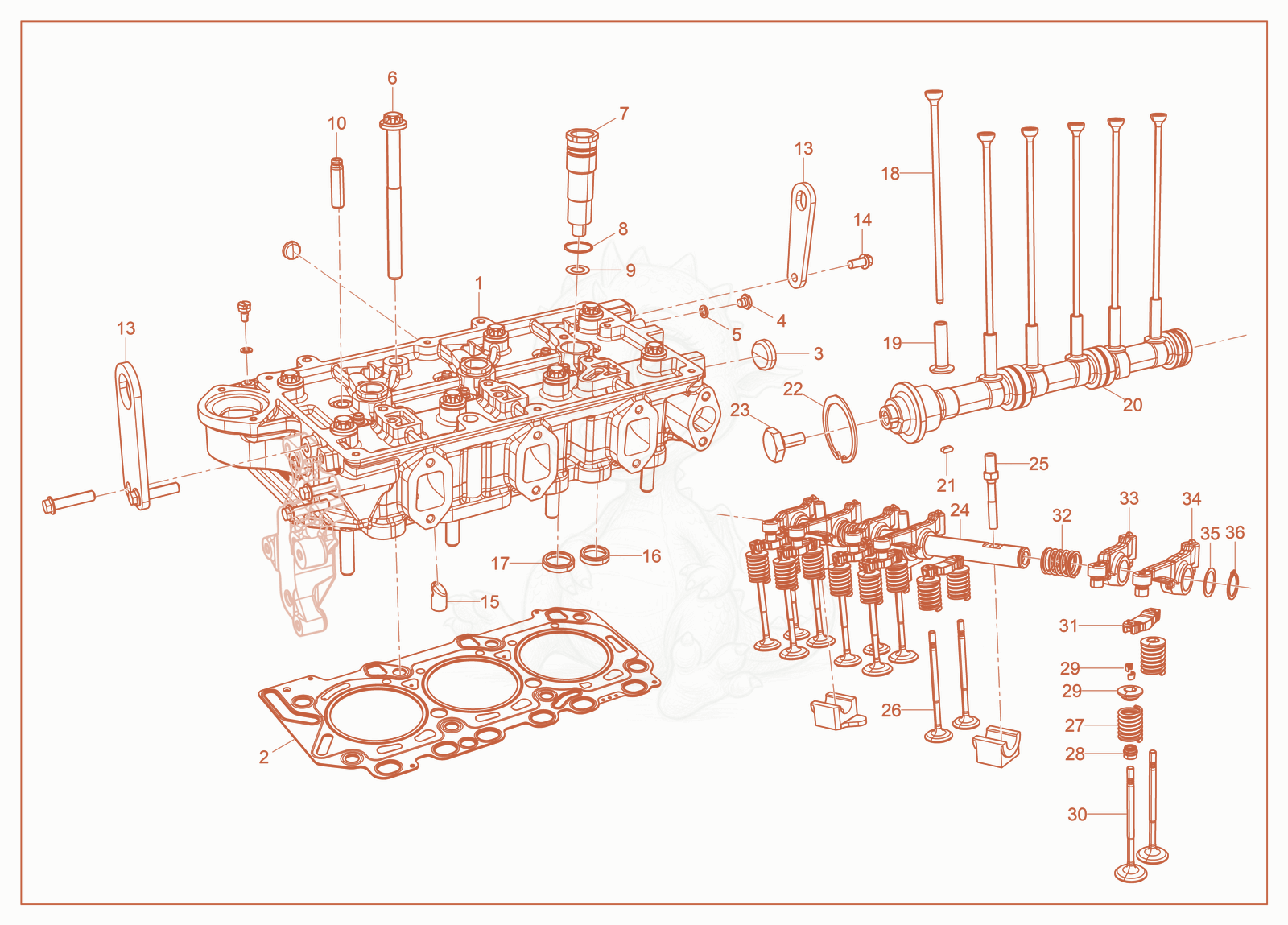

G35 Cylinder Head Diagram
- Cylinder head - 5100061851×1
- Cylinder head gasket 0,85 - 5100061852Unknown×1
- 25100061853Not stockedCylinder head gasket×1
- 25100061854Not stockedCylinder head gasket×1
- PLUG - 5000082335×1
- PLUG - 5200016310×1
- SEAL-RING - 5000082182×1
- BOLT - 5100039910×8
- SLEEVE - 5100016066×3
- 85100016067Not stockedO-ring×6
- GASKET - 5100016068×3
- Valve guide - 5100061730×12
- BRACKET-LIFTING- Kohler T4 - 5200016314×2
- BOLT M8 - 5000215693×4
- PLUG- Alignment - 5200016315×2
- Valve seat, exhaust - 5100061731×6
- Valve seat, intake - 5100061732×6
- ROD-PUSH - 5100029445×6
- 195100061739Not stockedTappet×6
- 205100030031Not stockedCamshaft×1
- 215200016381Not stockedKey×1
- SNAP RING - 5200016382×1
- BOLT - 5200016383×1
- ROCKER ARM ASSY - 5100061819×1
- Screw - 5100061740×3
- VALVE-EXHAUST - 5200016373×6
- 275100029448Not stockedSpring×12
- SEAL-RING - 5100029449×12
- RETAINER - 5200016377×12
- VALVE-INTAKE - 5200016374×6
- 315100029450Not stockedRocker bridge×6
- 325100029451Not stockedRocker shaft×2
- 335100029452Not stockedRocker arm×3
- 345100029453Not stockedRocker arm×3
- 355100029454Not stockedRocker arm×2
- RING-SEEGER - 5100029455×2
