G320 Generator, Standard T4i

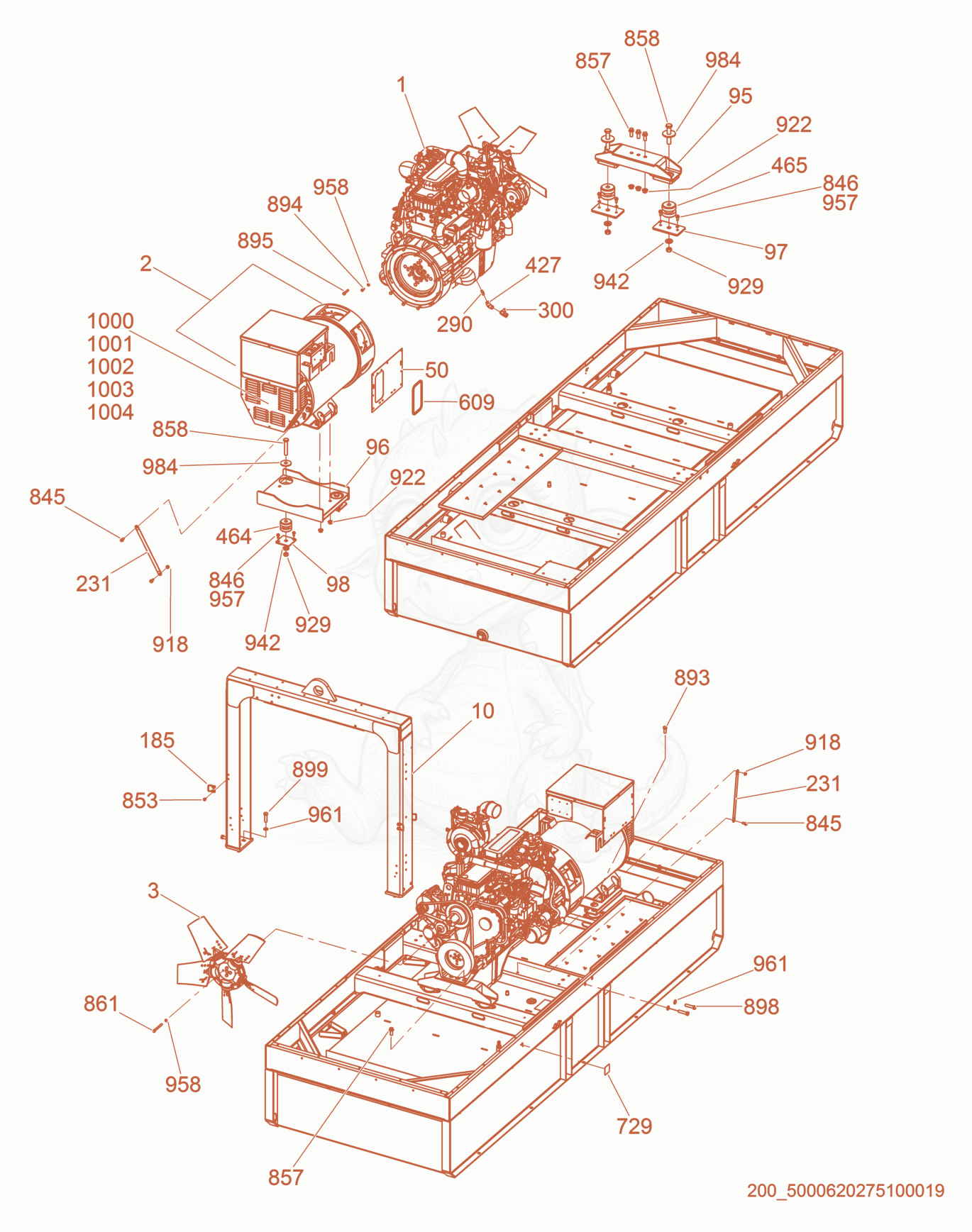

G320 Generator/Engine Diagram
- 15000193251Not stockedEngine-Cummins×1
- 25200016309Not stockedGenerator×1
- Fan-34 AirFoil, G320 - 5200001880×1
- Frame-Lift Structure, P- 5000112007 - 5200010167×1
- PANEL-GENERATOR,G240/180 - 5000174539×1
- 955200010540Not stockedBracket×1
- BRACKET, REAR MOUNT WELDMENT, G320 - 5200010541×1
- PLATE,ADAPTER,FRONT MOUNT P-5000176420 - 5200011483×2
- 985200011484Not stockedAdapter plate×2
- LATCH STRIKE,WIRE - 5000158982×3
- STRAP GROUND 15IN - 5000152979×1
- FITTING M22 X 1/2 NPT - 5000153962×1
- VALVE-BALL 1/2 MALE X FEMALE - 5000154305×1
- FITTING 1/2 STREET 45 - 5000154306×1
- 4645200010099Not stockedShockmount×2
- 4655200010110Not stockedShockmount×2
- SEAL TRIM EDGE LOCK BULK - 5000153252×1
- LABEL-BLACK - 5200022821×1
- SCREW M10 X 35 HX.HD. - 5000011438×8
- SCREW M8 X 14,HX.HD,SERR.FLG - 5000157021×6
- SCREW M16X40-10.9 HX SR FL MZP - 5000155246×3
- SCREW M16X40-10.9 HX SR FL MZP - 5000155246×3
- 8585200002521Not stockedHexagonal flange head screw×4
- 8585200002521Not stockedHexagonal flange head screw×4
- SCREW-M10 X 100 HX HD,GR 10.9 - 5000156270×4
- SCREW M16 X 35 HX.HD. - 5000011522×4
- SCREW 3/8-16 X .875 GR8,HX.HD. - 5000183123×8
- SCREW M10 X 55 HX.HD. - 5000011321×12
- 8985000011378Not stockedHexagonal head cap screw×4
- SCREW M16 X 60 HX.HD. - 5000011517×4
- NUT-LOCK M10,SERR.,FLANGE - 5000089316×2
- NUT M16-10.9 HX SER FLG MCH ZP - 5000155245×7
- 9295200004221Not stockedHexagon nut×4
- WASHER-SNUBBER, 2.5 OD X.76 ID - 5000183088×4
- WASHER B10.5 FLAT - 5000010621×8
- WASHER M10 HARDENED BLK TP 200 - 5000154530×12
- WASHER B17 FLAT - 5000010618×8
- WASHER-LOCK M16 CON SPR,MZP - 5000153532×4
- WASHER 3/4 NOM,FLAT STEEL - 5000025640×4
- EXCITER STATOR - 5200005593×1
- BEARING-REAR, 193252 - 5100028828×1
- RING-DIODE - 5000164609×1
- Main Stator cpl. -Gen 0193252 - 5100028632×1
- 10045100027224Not stockedRotor Assembly×1
