G3.3AI SCHUKO GENERATOR

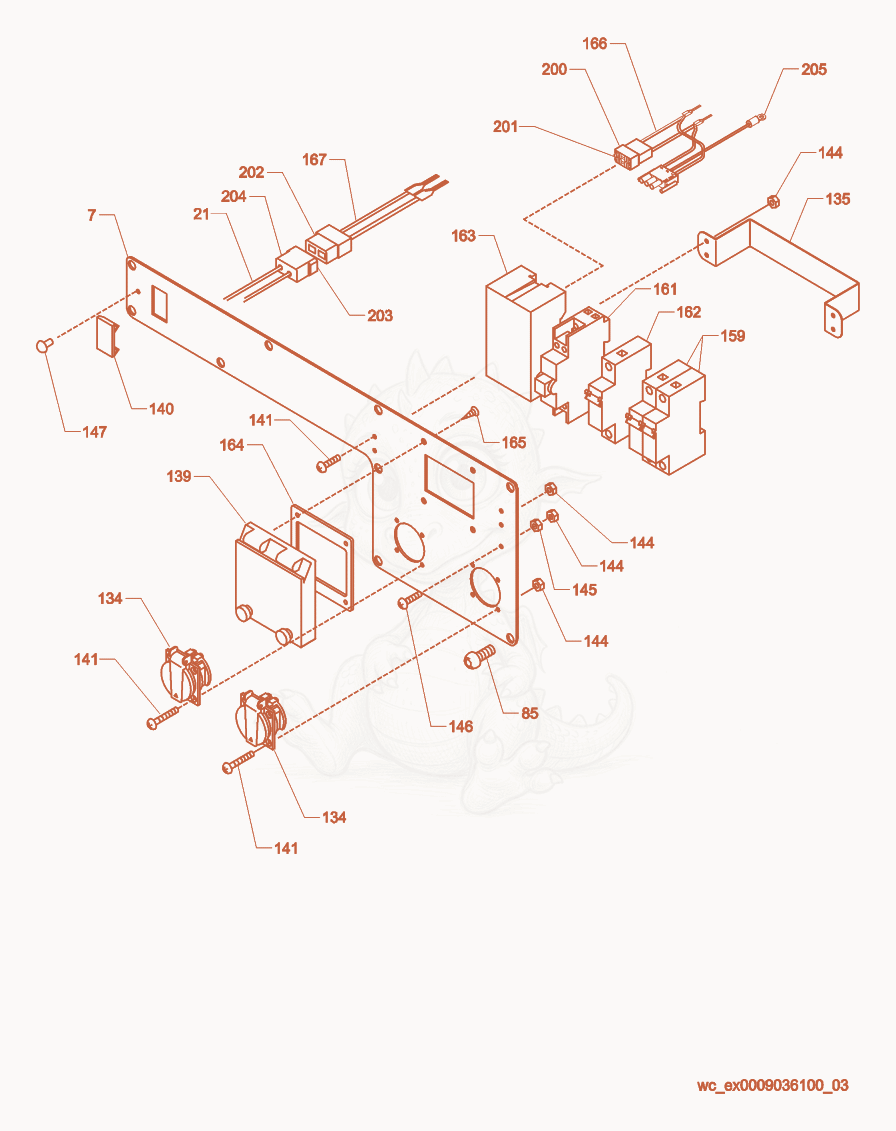

G3.3AI Control Panel Diagram
- PANEL-CONTROL,3.3-4.6AI - 5000117463×1
- 215000117461Not stockedWiring harness×1
- 855000085172Not stockedScrew×9
- RECEPTACLE-SHKO,230V,16A,IP44 - 5000110358×2
- 1355000117469Not stockedBracket×1
- 1395000110367Not stockedCover×1
- 1405000110747Not stockedCover×1
- SCREW M4 X 14 PHIL HD - 5000110405×12
- NUT-LOCK M4 HEX. - 5000010370×13
- NUT M4 8,HEX. - 5000010872×1
- SCREW M4 X 20 PHIL HD - 5000110951×1
- 1475000111204Not stockedCap plug×1
- BREAKER-1 POLE W/NEUTRAL,15AMP - 5000117466×1
- 1615000117456Not stockedSwitch×1
- RELAY-TRIP - 5000117459×1
- 1635000117470Not stockedModule×1
- 1645000117471Not stockedSpacer×1
- SCREW M4 X 12 - 5000088174×4
- 1665000117652Not stockedWiring harness×1
- 1675000117653Not stockedWiring harness×1
- HOUSING-CONNECTOR 4 POLE,PLG - 5000112058×1
- 2015000083679Not stockedTerminal×4
- 2025000112055Not stockedConnector housing×1
- 2035000088514Not stockedReceptacle terminal×2
- HOUSING-CONNECTOR 2 POLE,PLG - 5000112056×1
- 2055000028304Not stockedRing terminal×1
