G25-GENERATOR,COLD WEATHER

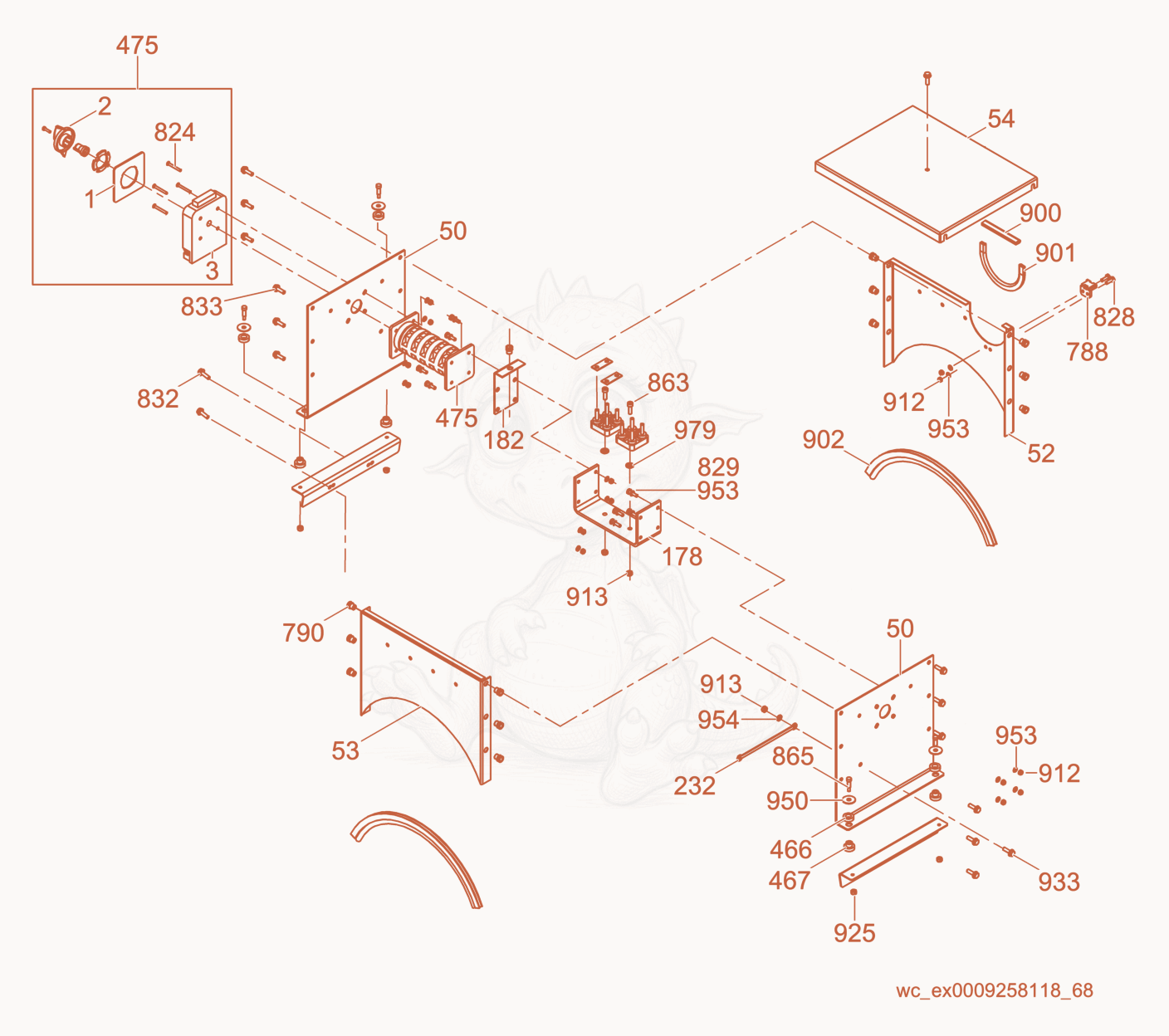

G25 Generator Box Diagram
- PLATE, ESCUTCHEON - 5000175082×1
- KNOB-ASSY. - 5000155477×1
- PADLOCK DEVICE - 5000175084×1
- 505000157195Not stockedGenerator box side panel×2
- 525000157984Not stockedGenerator box front panel×1
- 535000157983Not stockedGenerator box rear panel×1
- PANEL-GEN BOX TOP,SML - 5000157197×1
- 1785000153156Not stockedPhase switch bracket×1
- 1825000157198Not stockedBracket×1
- 2325000158020Not stockedWire-ground×1
- 4665000157957Not stockedRing spacer×4
- 4675000157958Not stockedBushing×4
- SWITCH-PHASE,63 AMP - 5000153058×1
- 7885000156284Not stockedCable tie×1
- 7905000111459Not stockedInsert×13
- 8245000155259Not stockedFlat head screw×4
- SCREW M5X16-4.8-H PAN HD ZP - 5000154516×2
- SCREW M5X20-4.8-H PAN HD - 5000154517×4
- 8325000080264Not stockedScrew×4
- SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×14
- SCREW M6 X 20 SOC.HD. - 5000011551×2
- 8655000157959Not stockedScrew×4
- 9005000153256Not stockedSeal×1
- 9015000157249Not stockedSeal×1
- 9025000157248Not stockedSeal-generator box×2
- NUT-LOCK M5 HEX. - 5000010369×8
- NUT-LOCK M6 HEX. - 5000010368×3
- 9255000157960Not stockedLock nut×4
- WASHER-FLT .058X.281X1.00 ZP - 5000156269×4
- WASHER B5.3 FLAT - 5000010625×18
- WASHER B6.4 FLAT - 5000010624×1
- WASHER-LOCK M8 - 5000118074×2
