G25-GENERATOR,SKID BASE

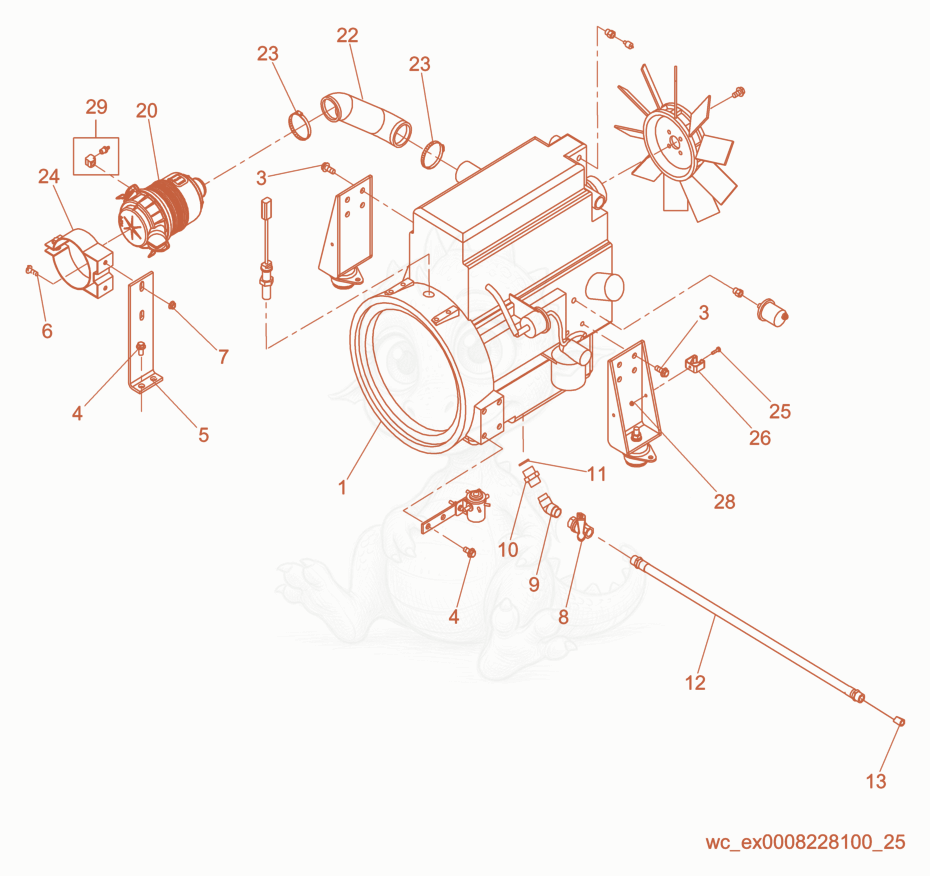

G25 Engine cpl. Diagram
- 15000152959Not stockedIsuzu engine×1
- SCREW M16X40-10.9 HX SR FL MZP - 5000155246×8
- SCREW M10X20-10.9 HX SFLG MZP - 5000154521×2
- 55000153016Not stockedAir filter bracket×1
- SCREW-M8 X 25 HX SER FLG ZP - 5000155213×2
- NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×2
- VALVE-BALL 1/2 MALE X FEMALE - 5000154305×1
- FITTING 1/2 STREET 45 - 5000154306×1
- FITTING-M20 MALE X 1/2 NPT - 5000154302×1
- SEAL M20 - 5000116110×1
- 125000155371Not stockedHose Kit×1
- 135000115812Not stockedOil tank cap×1
- 205000153069Not stockedAir cleaner filter×1
- 225000153055Not stockedAir filter hose×1
- CLAMP-THREADED,1.56-2.50 - 5000112287×2
- CLAMP-AIR FILTER,4 - 5000153072×1
- SCREW M5X16-4.8-H PAN HD ZP - 5000154516×1
- CLIP-SPRING HOLDER - 5000153747×1
- 285000017312Not stockedHexagon nut×1
- 295000153774Not stockedGauge×1
