G2.1A SCHUKO GENERATOR

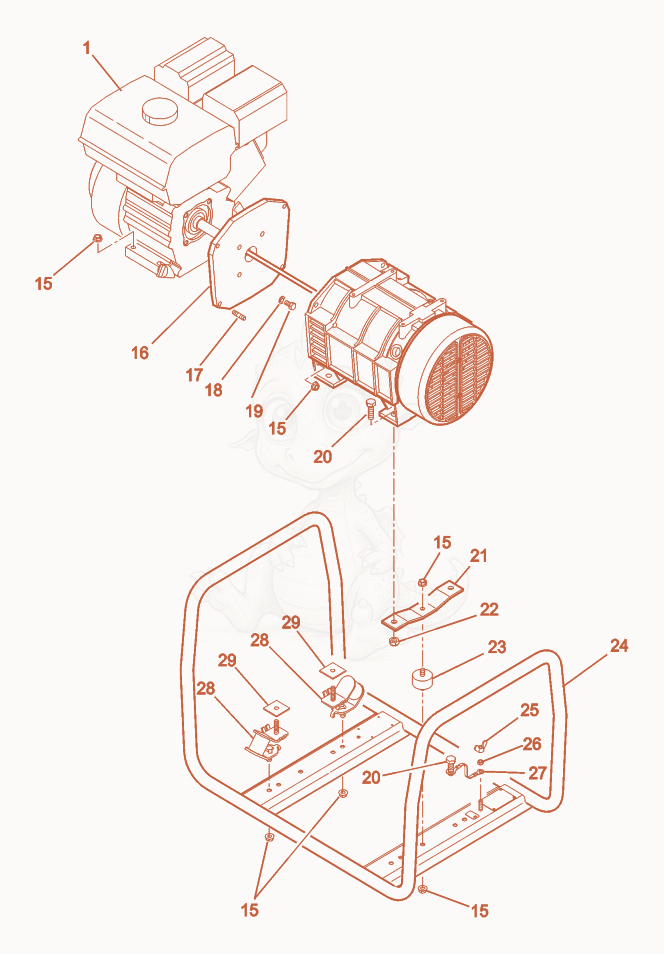

G2.1A Frame Diagram
- 15000111236Not stockedHonda engine×1
- NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×11
- 165000087824Not stockedAdapter×1
- 175000089664Not stockedStud×4
- WASHER-LOCK 5/16,MED - 5000025648×4
- SCREW 5/16-24 X 7/8 GR5,HX.HD. - 5000052203×4
- SCREW M10 X 30 HX.HD - 5000011439×1
- 215000088152Not stockedBracket×1
- NUT-LOCK M10 HEX. - 5000010365×1
- SHOCKMOUNT 40 X 20, 45 SHORE - 5000088535×1
- 245000087785Not stockedFrame×1
- NUT-WING M6,STAINLESS STEEL - 5000010895×1
- NUT M6 8,HEX - 5000010880×1
- WIRE-GROUND - 5000088180×1
- 285000087737Not stockedShockmount×2
- 295000089329Not stockedMounting bracket×2
