G180 MOBILE GENERATOR,STANDARD

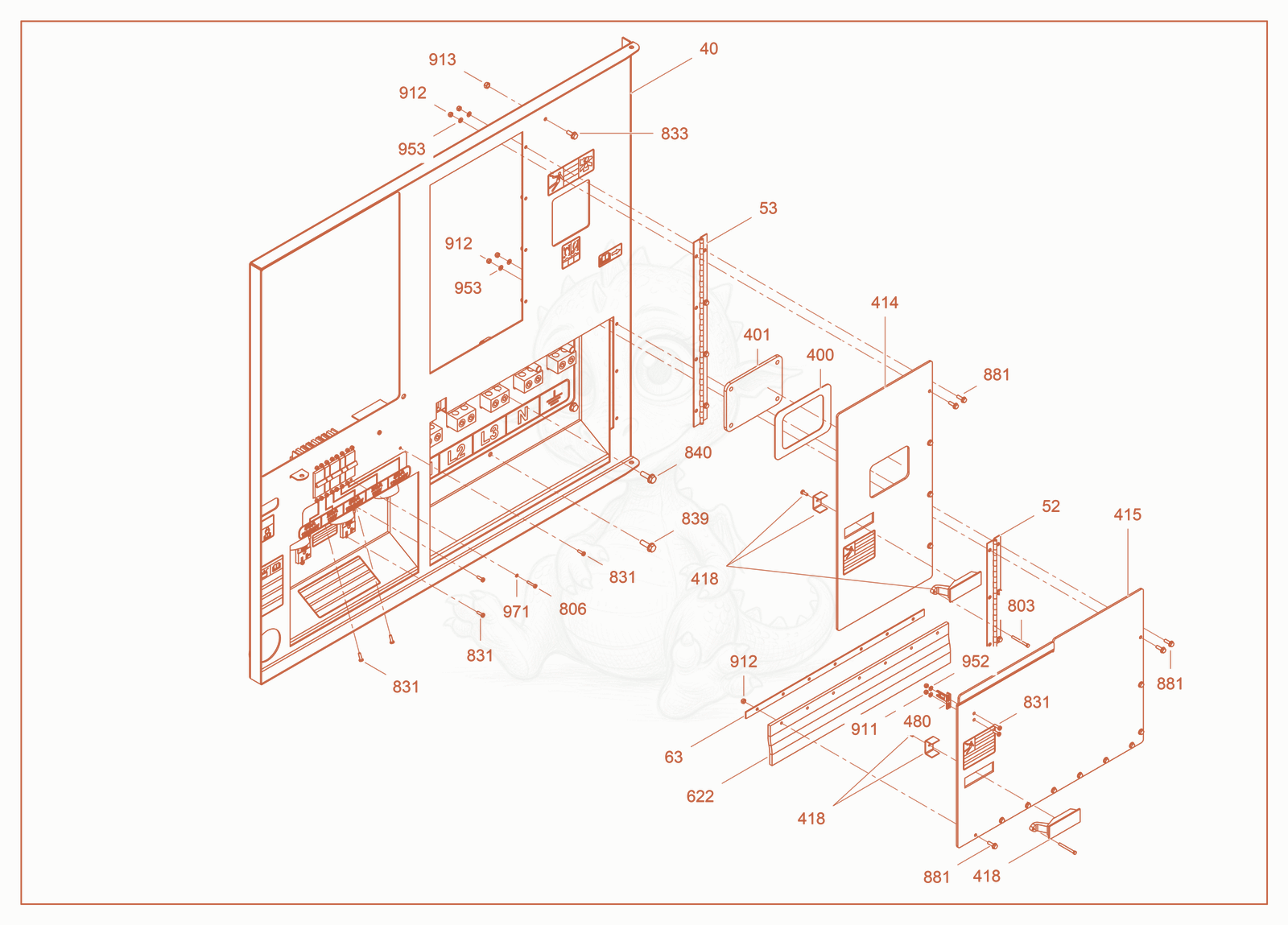

G180 Lug Box Diagram
- 405000171144Not stockedDoor×1
- HINGE ASSY,LUG DOOR - 5000171475×1
- HINGE ASSY - 5000171477×2
- PLATE-RETAINER,RUBBER FLAP - 5000171479×1
- GASKET-WINDOW - 5000171531×1
- DOOR-WINDOW - 5000171530×1
- DOOR-RECONNECTABLE PANEL - 5000171150×1
- DOOR-LUG BOX - 5000171149×1
- LATCH-NONLOCK,FLUSH,P.BTN - 5000158784×2
- KEY-LOCKOUT SWITCH (90) - 5000153080×1
- GUARD-LUG DOOR RUBBER FLAP - 5000171478×1
- 8035000160599Not stockedScrew×1
- 8065000154513Not stockedScrew×16
- SCREW M4 X 14 PHIL HD - 5000110405×14
- SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×1
- SCREW-M8 X 25 HX SER FLG ZP - 5000155213×3
- SCREW M8 X 30,HX.HD,SER.FLG - 5000085957×3
- SCREW M5X16 HX HD SERR FLG ZP - 5000159811×21
- NUT-LOCK M4 HEX. - 5000010370×2
- NUT-LOCK M5 HEX. - 5000010369×21
- NUT-LOCK M6 HEX. - 5000010368×1
- 9525000010628Not stockedFlat washer×2
- WASHER B5.3 FLAT - 5000010625×14
- WASHER-LOCK M3.5 ZP - 5000154532×16
