G155-GENERATOR,SKID BASE

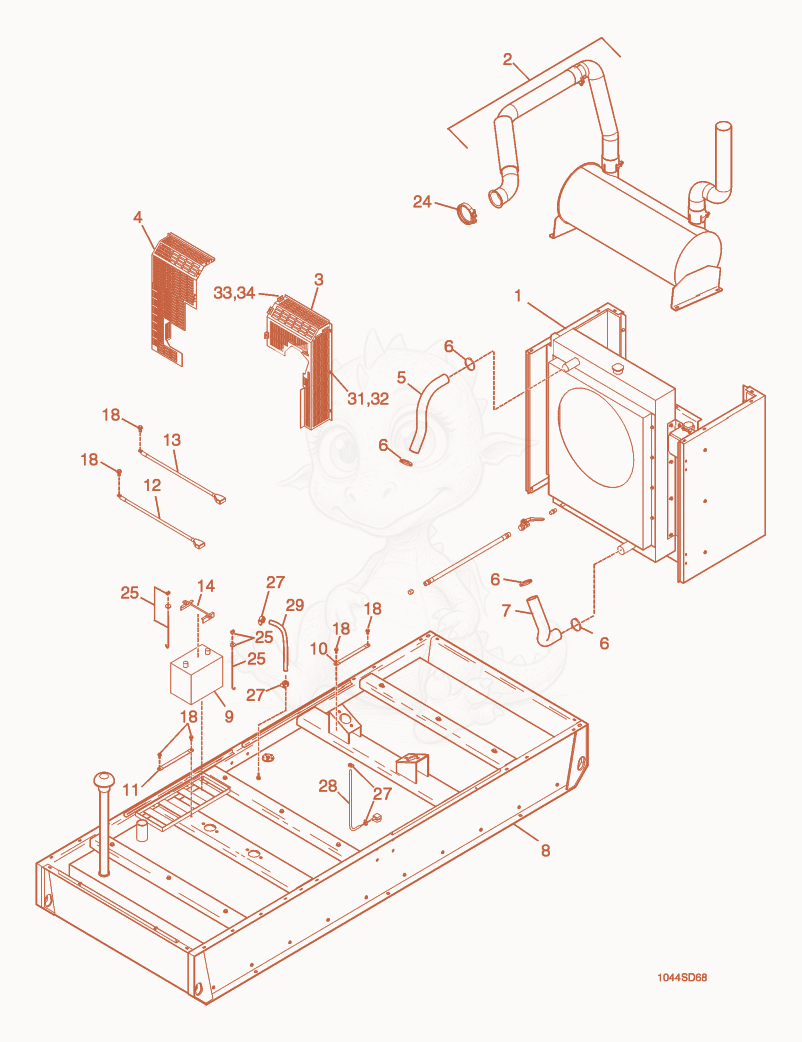

G155 Engine Shrouding Diagram

Exploded parts diagram of the Engine Shrouding of a Wacker Neuson G155, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 35000153188Not stocked
    Guard×1
  • 45000153189Not stocked
    Guard×1
  • 55000153187Not stocked
    Hose×1
  • 65000115173Not stocked
    Clamp×4
  • 75000153205Not stocked
    Hose×1
  • 85000152146Not stocked
    Frame cpl.×1
  • 95000153204Not stocked
    Battery×1
  • 105000115801Not stocked
    Strap×1
  • 115000115804Not stocked
    Strap×1
  • 125000115789Not stocked
    Battery cable×1
  • 135000153182Price
    CABLE-BATTERY,BLACK - 5000153182×1
  • 145000087760Not stocked
    Holder×1
  • 155000115255Not stocked
    Clip×1
  • 165000115638Not stocked
    Screw×1
  • 175000116124Price
    NUT-LOCK M12,HX.SER.FLG.ZP - 5000116124×1
  • 185000115613Not stocked
    Screw×11
  • 195000115621Not stocked
    Pan head screw×1
  • 205000152090Not stocked
    Washer×1
  • 215000152082Not stocked
    Lock nut×1
  • 225000115630Not stocked
    Lock nut×2
  • 235000115609Not stocked
    Screw×7
  • 245000115800Not stocked
    Clamp×1
  • 255000153203Price
    BOLT-J,BATTERY - 5000153203×2
  • 265000152132Not stocked
    Lock nut×3
  • 275000087559Not stocked
    Hose clamp×4
  • 285000115784Not stocked
    Fuel hose×1
  • 295000152151Not stocked
    Fuel hose×1
  • 305000152031Not stocked
    Washer×4
  • 315000152032Not stocked
    Lock washer×6
  • 325000116128Not stocked
    Screw×6
  • 335000115620Not stocked
    Lock nut×3
  • 345000115968Not stocked
    Screw×3
