G130 Generator,T4F, URI HVAC

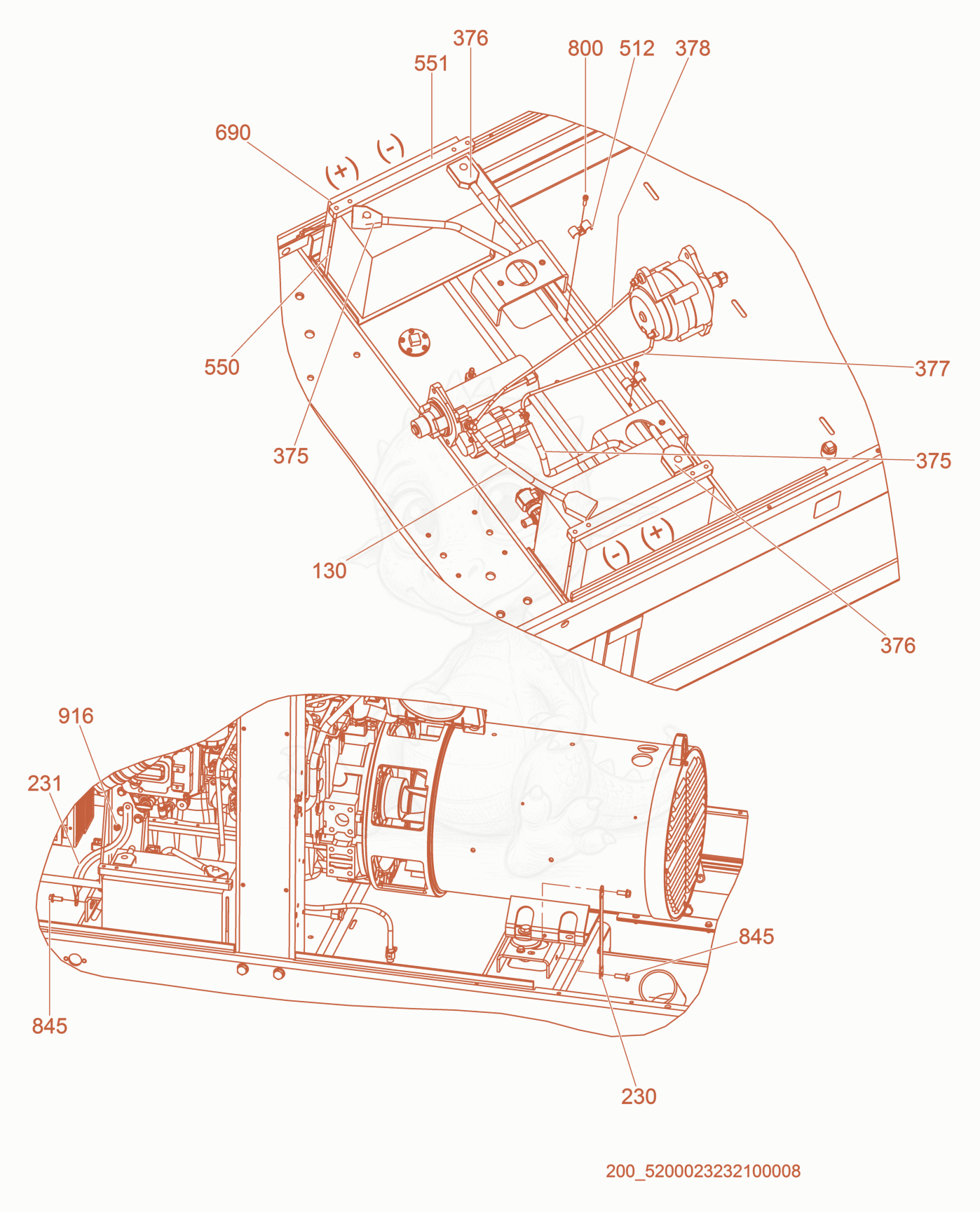

G130 Battery Diagram

Exploded parts diagram of the Battery of a Wacker Neuson G130, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1305200024358Price
    Cable-Battery,Assembly,Neg,ML,T4F - 5200024358×1
  • 2305000152978Price
    STRAP-GROUND 10 - 5000152978×1
  • 2315000152979Price
    STRAP GROUND 15IN - 5000152979×1
  • 3755200025052Price
    Cable-Battery,Positive,ML,T4F - 5200025052×1
  • 3765200025053Price
    Cable-Battery,Post to Post,ML,T4F - 5200025053×1
  • 3775200025054Price
    Cable-Alternator,Positive,ML,T4F - 5200025054×1
  • 3785200025055Price
    Cable-Alternator,Negative,ML,T4F - 5200025055×1
  • 5125200005586Price
    CLAMP-.625,DOUBLE TUBE,INSULATED - 5200005586×2
  • 5505000154319Price
    BOLT-L .25-10,BATTERY - 5000154319×2
  • 5515000159046Not stocked
    Battery bracket×2
  • 6905000159808Price
    BATTERY-WET,GR31 - 5000159808×2
  • 8005000011550Price
    SCREW M6 X 25 SOC.HD. - 5000011550×2
  • 8455000116164Price
    SCREW M10X25 HEX,SER.FLG ZP - 5000116164×3
  • 9165000030066Price
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×1
