G125-GENERATOR,SKID BASE

G125 Lug Plate cpl. Diagram

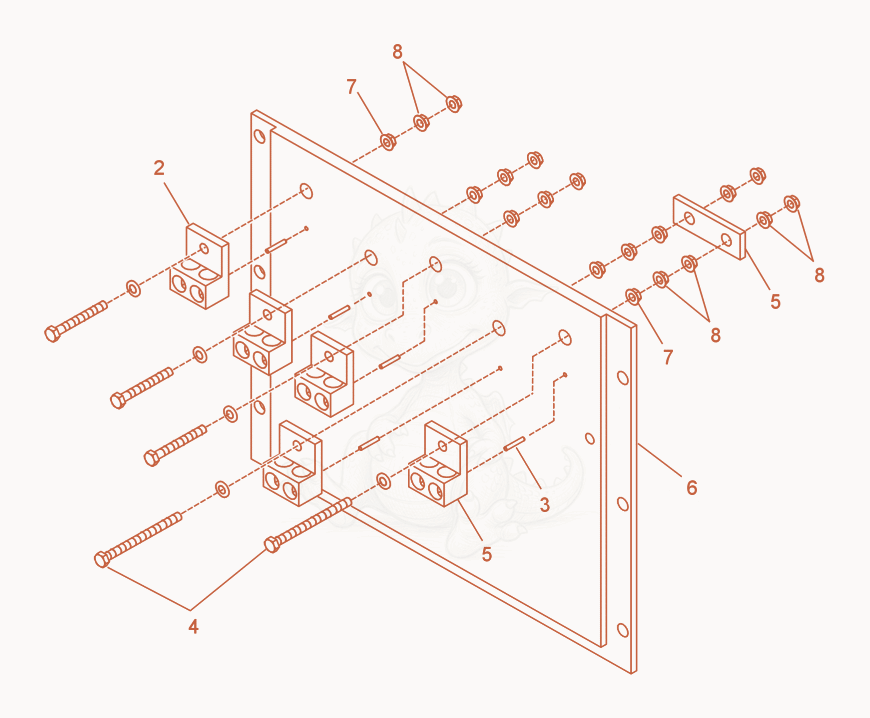

Exploded parts diagram of the Lug Plate cpl. of a Wacker Neuson G125, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25000154246Price
    TERMINAL-LUG,350 MCM - 5000154246×5
  • 35000155215Price
    PIN-ROLL 1/8 X 3/4 ZP - 5000155215×5
  • 45000155255Price
    SCREW 3/8-16 X 5.00-5 HX HD ZP - 5000155255×2
  • 55000151988Not stocked
    Connector×1
  • 65000151989Not stocked
    Plate×1
  • 75000155242Price
    NUT 3/8-16 HX SER FLG ZP - 5000155242×5
  • 85000154527Price
    NUT 3/8-16 HX HD JAM ZP - 5000154527×14
