G100 Generator,Custom,Exempt

G100 Lugs/Breakers/Receptacles Diagram

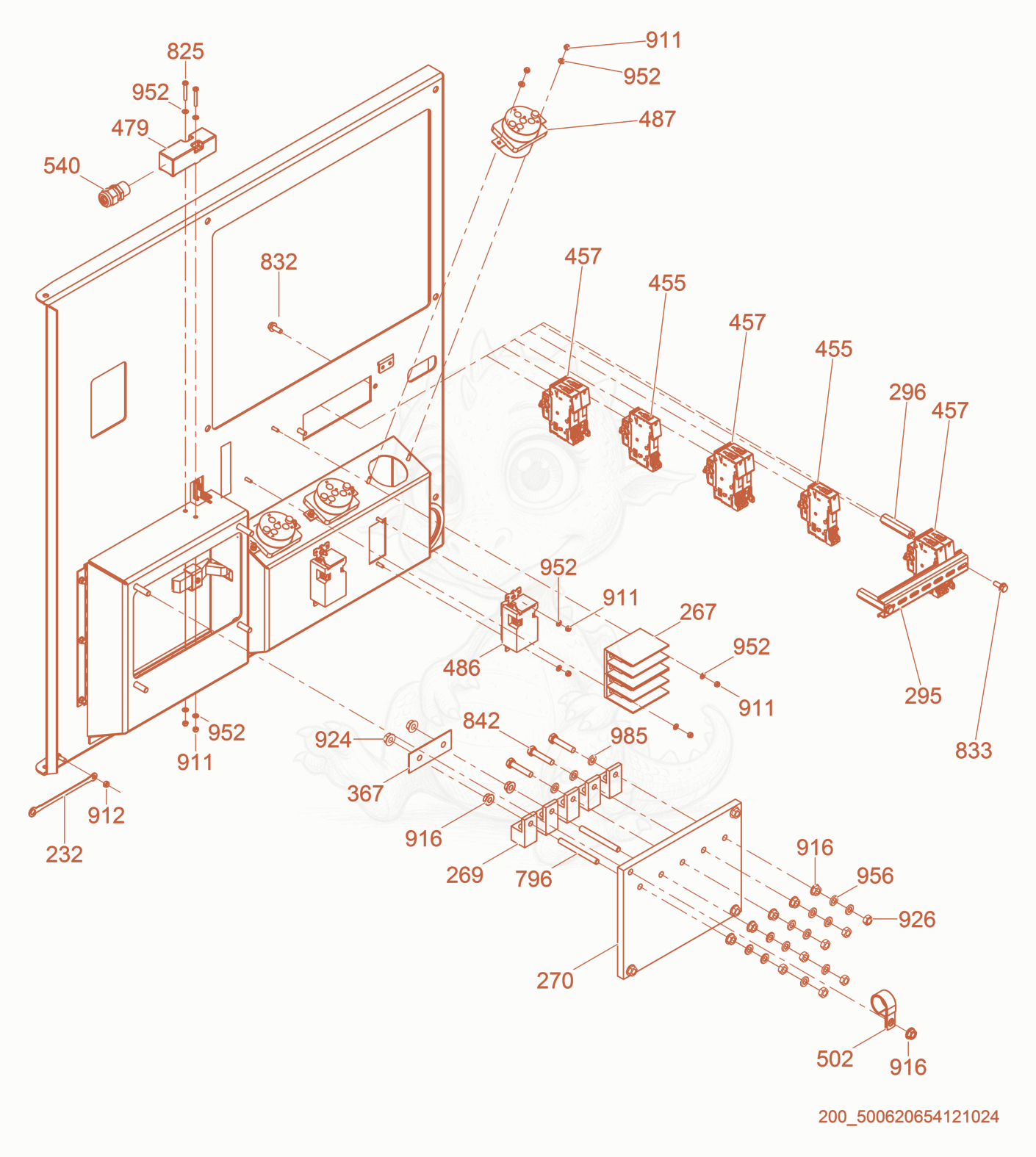

Exploded parts diagram of the Lugs/Breakers/Receptacles of a Wacker Neuson G100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 2325000160587Price
    WIRE-GROUND - 5000160587×1
  • 2675000160091Price
    TERMINAL-BLOCK - 5000160091×2
  • 2695200000991Price
    LUG-TERMINAL, 350 MCM - 5200000991×5
  • 2705200000974Price
    PLATE-LUG,GLASTIC,SML - 5200000974×1
  • 2955200012337Price
    Plate-DIN Rail - 5200012337×1
  • 2985200012338Price
    Spacer-DIN Rail - 5200012338×2
  • 3675000158074Price
    CONNECTOR-LO-N - 5000158074×1
  • 4555200023000Price
    Breaker-Toggle - 20A, 1 Pole - 5200023000×2
  • 4575200023001Price
    Breaker-Toggle - 50A, 2 Pole - 5200023001×3
  • 4795000153079Not stocked
    Lockout switch×1
  • 4865000089849Not stocked
    GFI Receptacle Kit×2
  • 4875000153277Price
    RECEPTACLE,50 AMP TWIST LOCK - 5000153277×3
  • 5025000183449Not stocked
    Tube clamp×1
  • 5405000153269Not stocked
    Strain relief×1
  • 7965000171214Price
    STUD M8 X 80 FULLY THREADED - 5000171214×2
  • 8255000154514Price
    SCREW M4X35-4.8-H PAN HD ZP - 5000154514×2
  • 8425000011450Price
    SCREW M8 X 60,HX.HD. - 5000011450×3
  • 9115000010370Price
    NUT-LOCK M4 HEX. - 5000010370×12
  • 9125000010369Price
    NUT-LOCK M5 HEX. - 5000010369×1
  • 9165000030066Price
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×13
  • 9245000010367Price
    NUT-LOCK M8 HEX - 5000010367×2
  • 9265000010882Price
    NUT M8 8,HEX - 5000010882×7
  • 9525000010628Not stocked
    Flat washer×14
  • 9565000010622Price
    WASHER-FLAT,M8,ZINC - 5000010622×24
  • 9855000160298Price
    WASHER-B8.4 FLAT,2THK,20 OD - 5000160298×3
