G100

G100 Enclosure Assembly Diagram

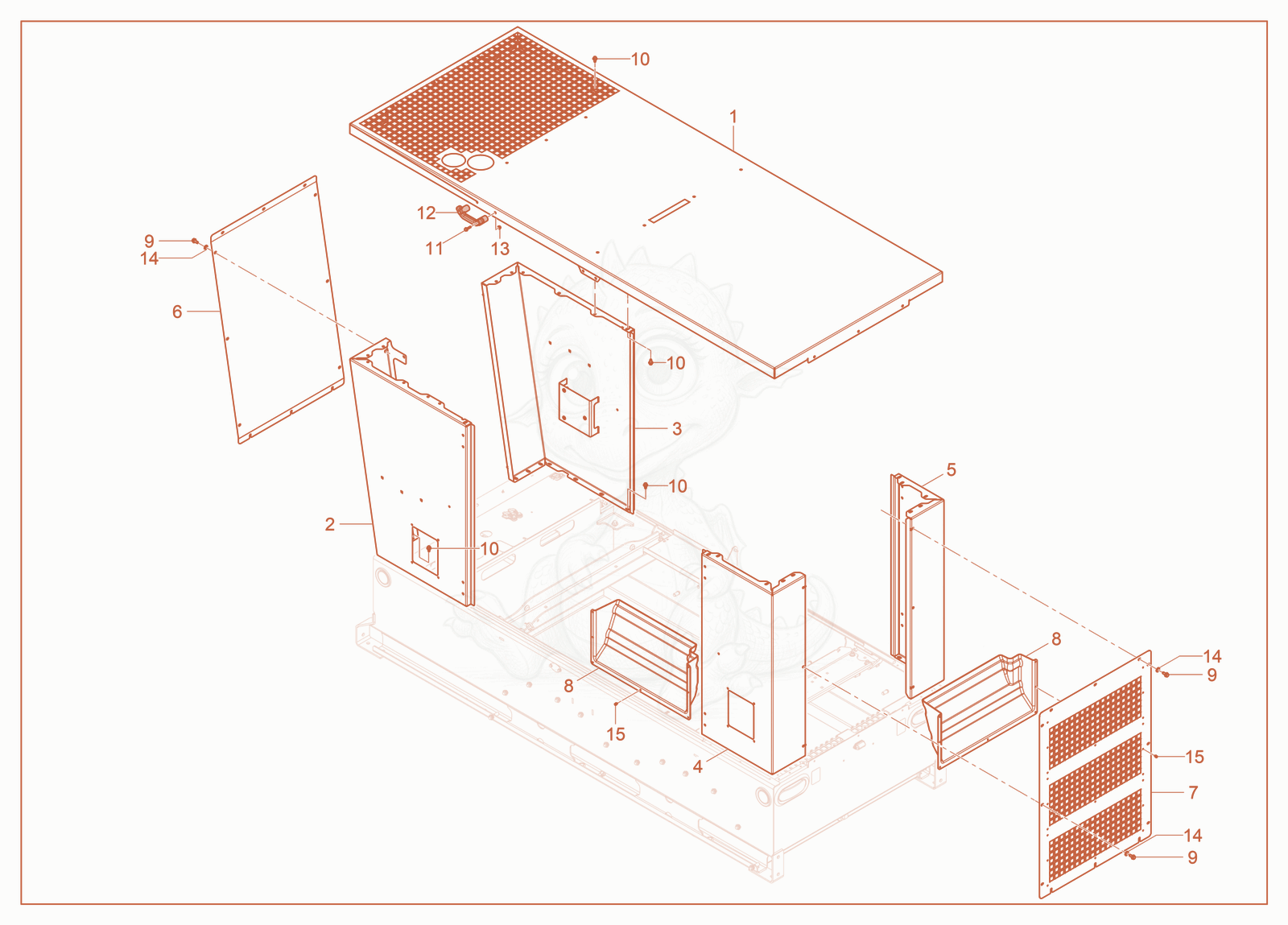

Exploded parts diagram of the Enclosure Assembly of a Wacker Neuson G100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100066445Not stocked
    Exterior panel, roof×1
  • 25100079602Not stocked
    Exterior panel×1
  • 35100079937Not stocked
    Exterior panel×1
  • 45100066367Not stocked
    Exterior panel×1
  • 55100066369Not stocked
    Exterior panel×1
  • 65100066370Not stocked
    Exterior panel×1
  • 75100066322Not stocked
    Exterior panel×1
  • 85100056863Price
    VENT-INTAKE - 5100056863×5
  • 95100061318Price
    SCREW-M8x20,THD.FRM,HEX.FLG-MAG565 - 5100061318×30
  • 105100058926Price
    SCREW-M8x16,THD.FRM,HEX.FLG.MGCT 565 - 5100058926×48
  • 115000154519Price
    SCREW M6X25 HX SER FLG CLR ZP - 5000154519×4
  • 125000117815Price
    HANDLE-PUMP - 5000117815×2
  • 135000155519Price
    NUT M6,FLANGED - 5000155519×4
  • 145100060862Price
    WASHER 5/16,SEALING - 5100060862×30
  • 155100060845Price
    RIVET .156 X .04-.335,AL,SOFT MATERIAL - 5100060845×35
