G100 MOBILE GENERATOR,STANDARD

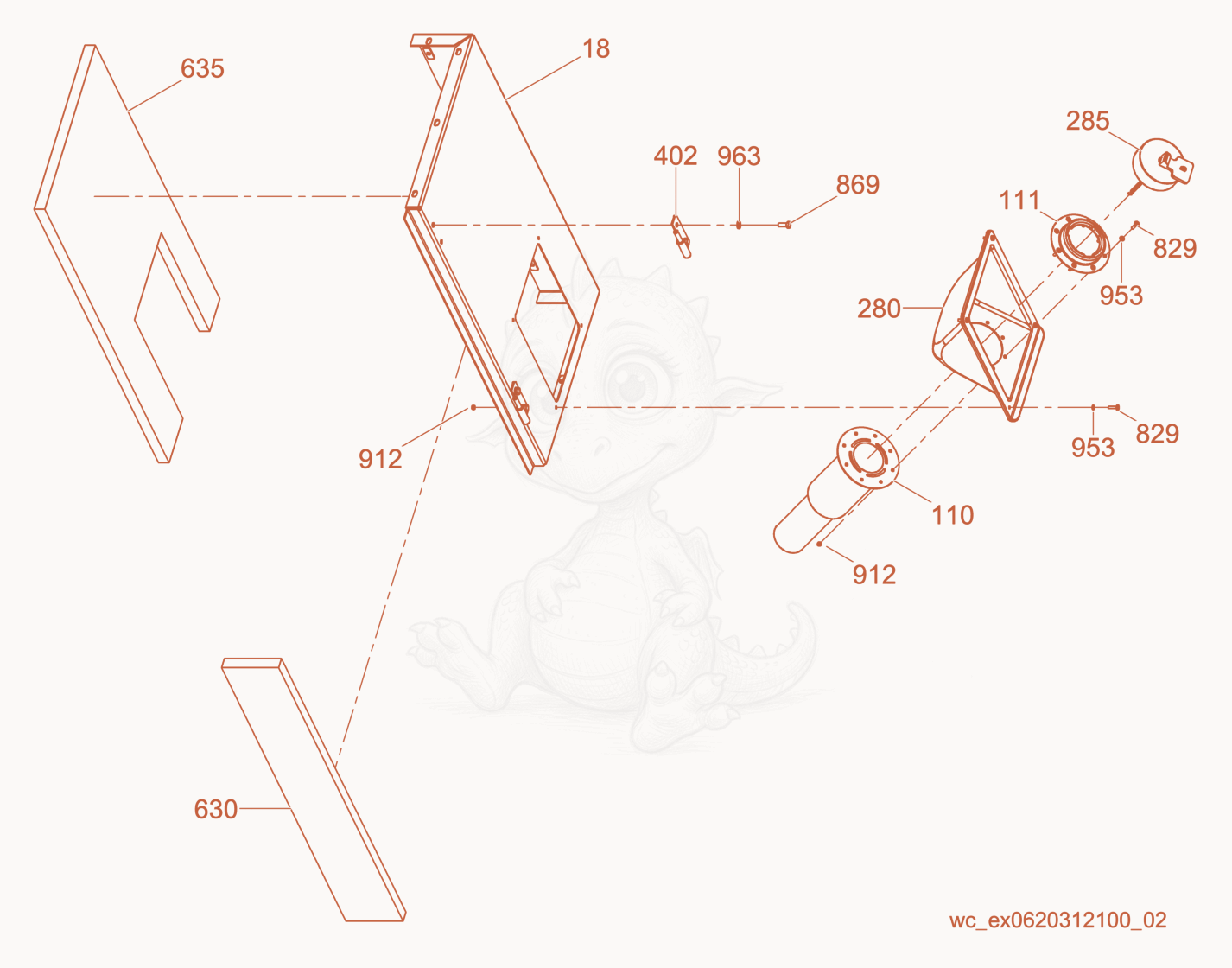

G100 Fuel Fill Corner Diagram

Exploded parts diagram of the Fuel Fill Corner of a Wacker Neuson G100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 185000173731Price
    PANEL-LR SIDE,ML, P-5000177670 - 5000173731×1
  • 1105000171488Price
    TUBE-FILLER WELDMENT P- 5000112007 - 5000171488×1
  • 1115000171487Price
    TUBE-FUEL CAP ADAPTOR P- 5000112007 - 5000171487×1
  • 2805000171136Price
    PORT-FUEL FILL - 5000171136×1
  • 2855000171137Price
    CAP-FUEL FILL - 5000171137×1
  • 4025200014957Not stocked
    Hinge pin×2
  • 6305000174503Price
    INSULATOR-REAR SIDE,ML - 5000174503×1
  • 6355000174504Price
    INSULATOR-CORNER,LR,ML - 5000174504×1
  • 8295000154517Price
    SCREW M5X20-4.8-H PAN HD - 5000154517×12
  • 8695000158897Price
    SCREW M8X20 HX.HD.,SST - 5000158897×4
  • 9125000010369Price
    NUT-LOCK M5 HEX. - 5000010369×12
  • 9535000010625Price
    WASHER B5.3 FLAT - 5000010625×12
  • 9635000158899Price
    WASHER M8 FLAT,SST - 5000158899×4
