EZ17-2

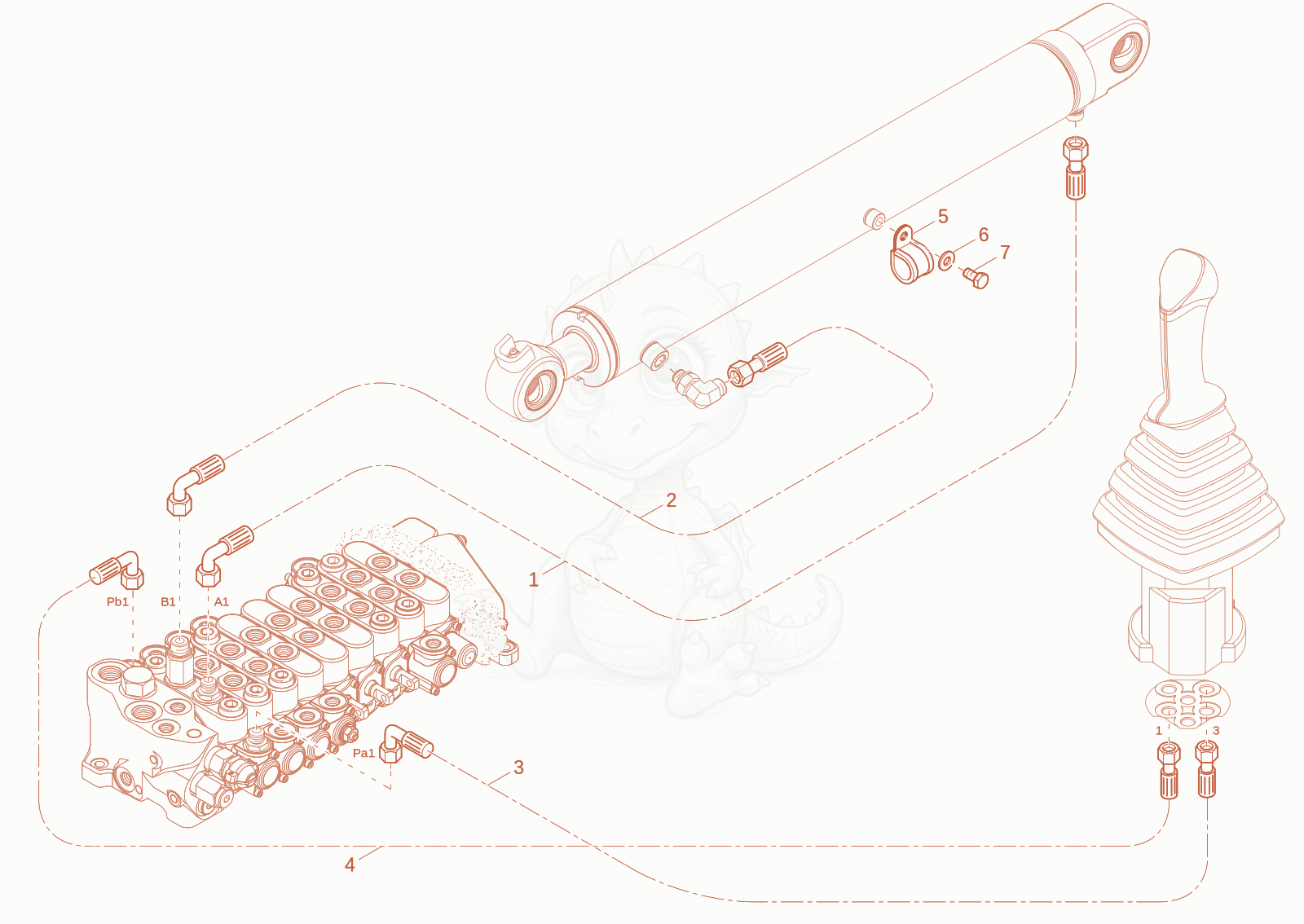

EZ17-2 LIFTING BOOM OPERATION Diagram

Exploded parts diagram of the LIFTING BOOM OPERATION of a Wacker Neuson EZ17-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000290961Price
    SLHYDR 2SC 10 PN12 90 PN10 0 L2200 S0 - 1000290961×1
  • 21000290965Price
    SLHYDR 2SC 8,0PN10 90 PN10 0 L2600 S0 - 1000290965×1
  • 31000290959Price
    SLHYDR 1SCP5,0PN8 90 PN8 0 L1450 0 - 1000290959×1
  • 41000290960Price
    SLHYDR 1SCP5,0PN8 90 PN8 0 L1500 0 - 1000290960×1
  • 51000083248Price
    hose clamp RSGU 1 23/20 - 1000083248×1
  • 61000015448Not stocked
    washer×1
  • 71000019136Not stocked
    hex screw×1
