ET42

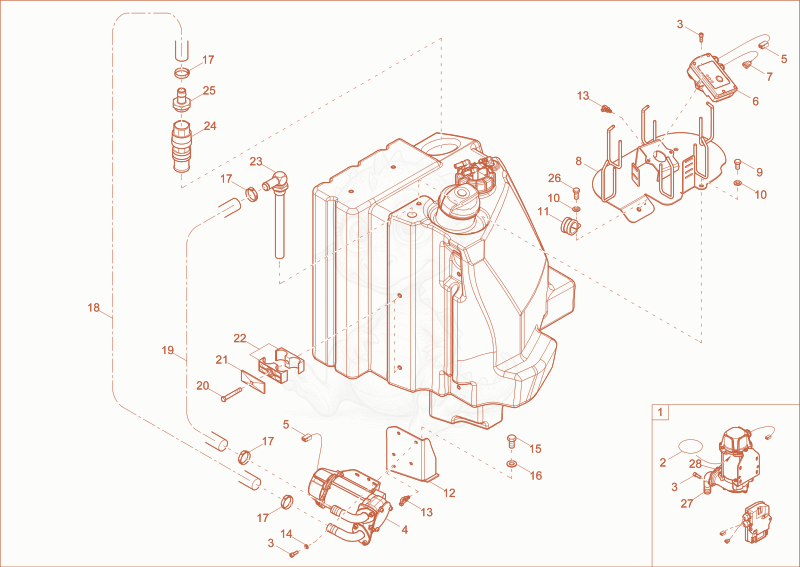

ET42 fuel fill pump (OPTION) Diagram
- Fuelfillpump 1000245451×1
- O-RING - 1000015705×1
- allen screw M5x16-8.8 A2C DIN912 - 1000085451×10
- Fuelpumpwithoutswitch 1000236487×1
- plug housing - 1000095324×2
- PUMP CONTROL - 1000245452×1
- plug sleeve housing - 1000095325×1
- 81000447814Not stockedplate×1
- 91000019136Not stockedhex screw×3
- 101000015448Not stockedwasher×4
- pipe clamp RSGU 1.30/20 - 1000272660×1
- 121000422299Not stockedbracket fuelfill pump×1
- 131000090083Not stockedcable strap×2
- Washer M5,3-DIN134 - 1000094967×4
- 151000013009Not stockedhex screw×2
- washer M10-DIN134 - 1000094974×2
- 171000341613Not stockedhose clamp×4
- suction hose diesel - 1000117960×3.2
- suction hose diesel - 1000117960×0.9
- hex screw M8x55-8.8 A2C-DIN931 - 1000085317×2
- cover plate - 1000083298×2
- 221000401876Not stockedclamp×2
- tankfilling - 1000449564×1
- non return valve - 1000265436×1
- hose sleeve - 1000072573×1
- 261000015343Not stockedhex screw×1
- 271000481676Not stockedhose fitting×1
- 281000481677Not stockedbracket×1
