ET24

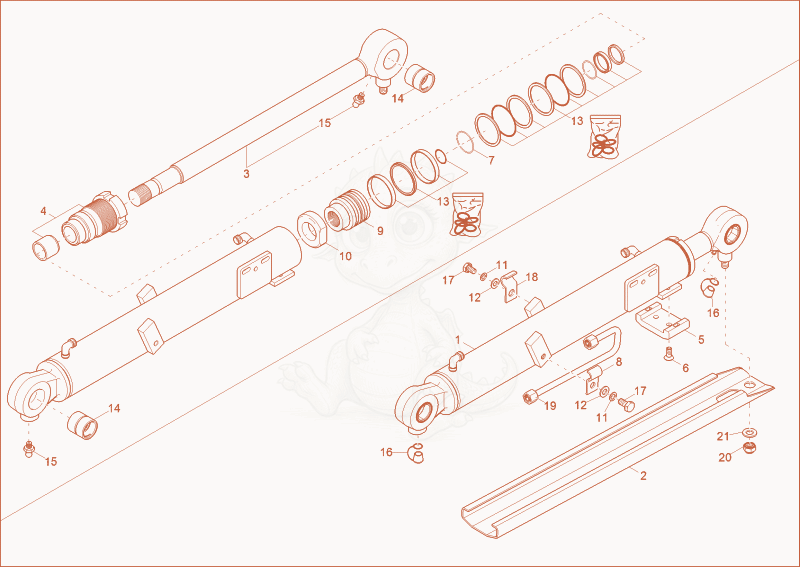

ET24 boom cylinder Diagram
- 11000273905Not stockedboom cylinder×1
- Protectingrail 1000274136×1
- PISTON ROD - 1000276827×1
- Guidebushing 1000276846×1
- guide-element - 1000295232×1
- 61000015373Not stockedcountersunk screw×2
- spring ring - 1000276934×1
- pipe clamp - 1000259454×1
- PISTON - 1000276842×1
- set nut - 1000276857×1
- 111000015438Not stockedlock washer×2
- washer 10,5 A2C DIN125 - 1000015432×2
- cylinder seal kit - 1000276851×1
- STEEL BUSHING - 1000165323×2
- 151000015475Not stockedgrease nipple×2
- 161000015480Not stockedcap grease nipple×2
- hex screw M10x20-8.8 A2C DIN933 - 1000085411×2
- pipe clamp - 1000246845×1
- pipe line - 1000259457×1
- 201000020127Not stockedhexagon nut×1
- 211000049219Not stockedwasher×1
