ET20

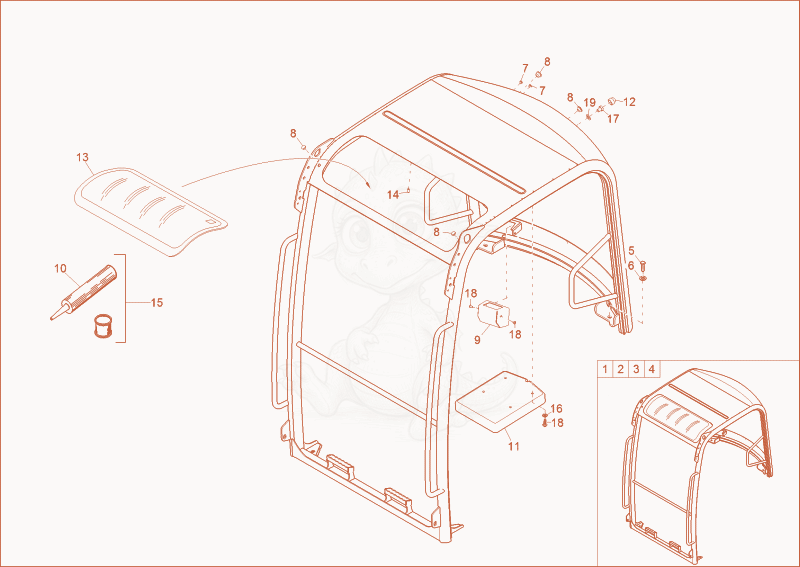

ET20 CABIN FRAME CANOPY Diagram
- Canopywithoutrearglass 1000254594×1
- Canopywithoutrearglass 1000285324×1
- 31000283486Not stockedcabin×1
- Canopywithrearglass 1000285323×1
- 51000015381Not stockedhex screw×4
- Nord-Lock disc NL12x25,4 - 1000094970×5
- 71000068932Not stockedblind plug×2
- blind plug - 1000075523×4
- switch cover - 1000276555×1
- 101000001352Not stockedglue cartridge×1
- documents box - 1000081206×1
- 121000067799Not stockedcover cap×1
- Roofglass 1000263523×1
- blind rivet nut - 1000279142×4
- 151000001353Not stockedglue kt×1
- washer - 1000233504×4
- Hex screw - 1000279182×1
- screw M6x12 ISO7380-2 - 1000165459×6
- Washer (Polyamid) - 1000093520×1
