ET20-2

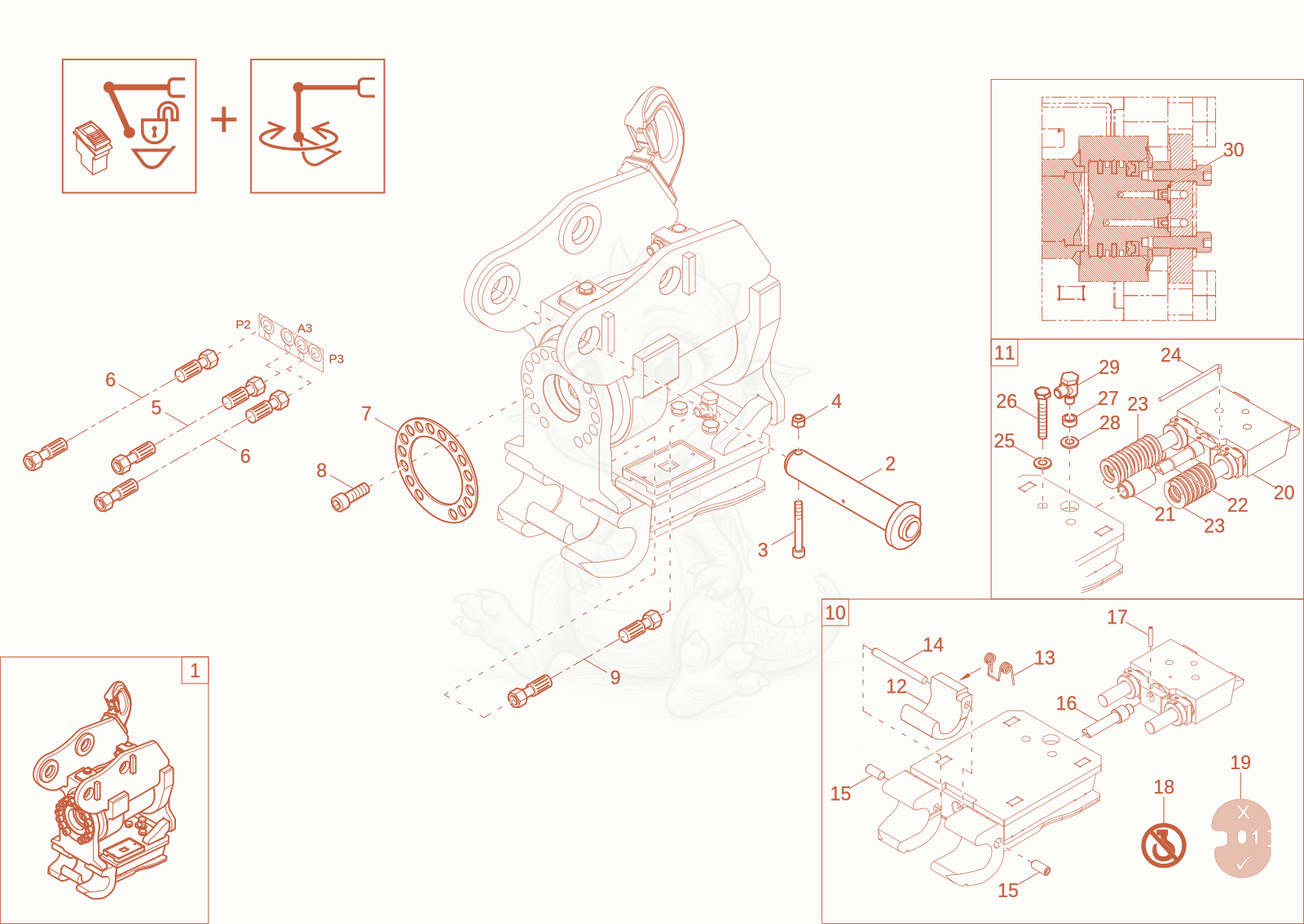

ET20-2 HSWS Powertilt loading hook (option) Diagram
- 11000564894Not stockedPOWERTILT×1
- pin DM=32x190 - 1000267686×2
- cheese head screw M8x45-8.8 Dacro DIN912 - 1000082296×2
- 41000357534Not stockedhexagon nut×2
- 51000569900Not stockedHose×1
- 61000569901Not stockedHose×2
- 71000572685Not stockedwasher×1
- 81000572684Not stockedsocket cap screw×16
- 91000572686Not stockedhp hose×1
- 101000468736Not stockedService kit×1
- 111000572687Not stockedquick hitch×1
- Claw - 1000468872×1
- spring - 1000468795×1
- pin - 1000468798×1
- pin - 1000468800×2
- 161000468873Not stockedlimit stop×1
- 171000572688Not stockedcotter pin×1
- STICKER - 1000461738×1
- 191000468874Not stockedmeasure gauge×1
- locking - 1000468867×1
- 211000461732Not stockedbushing×1
- 221000019904Not stockedo-ring×1
- spring - 1000468793×2
- pin - 1000468796×1
- WASHER - 1000346444×2
- screw - 1000461724×2
- shim - 1000396771×1
- seal - 1000396750×1
- 291000396772Not stockedscrew joint×1
- ring - 1000461731×1
