DW90-3

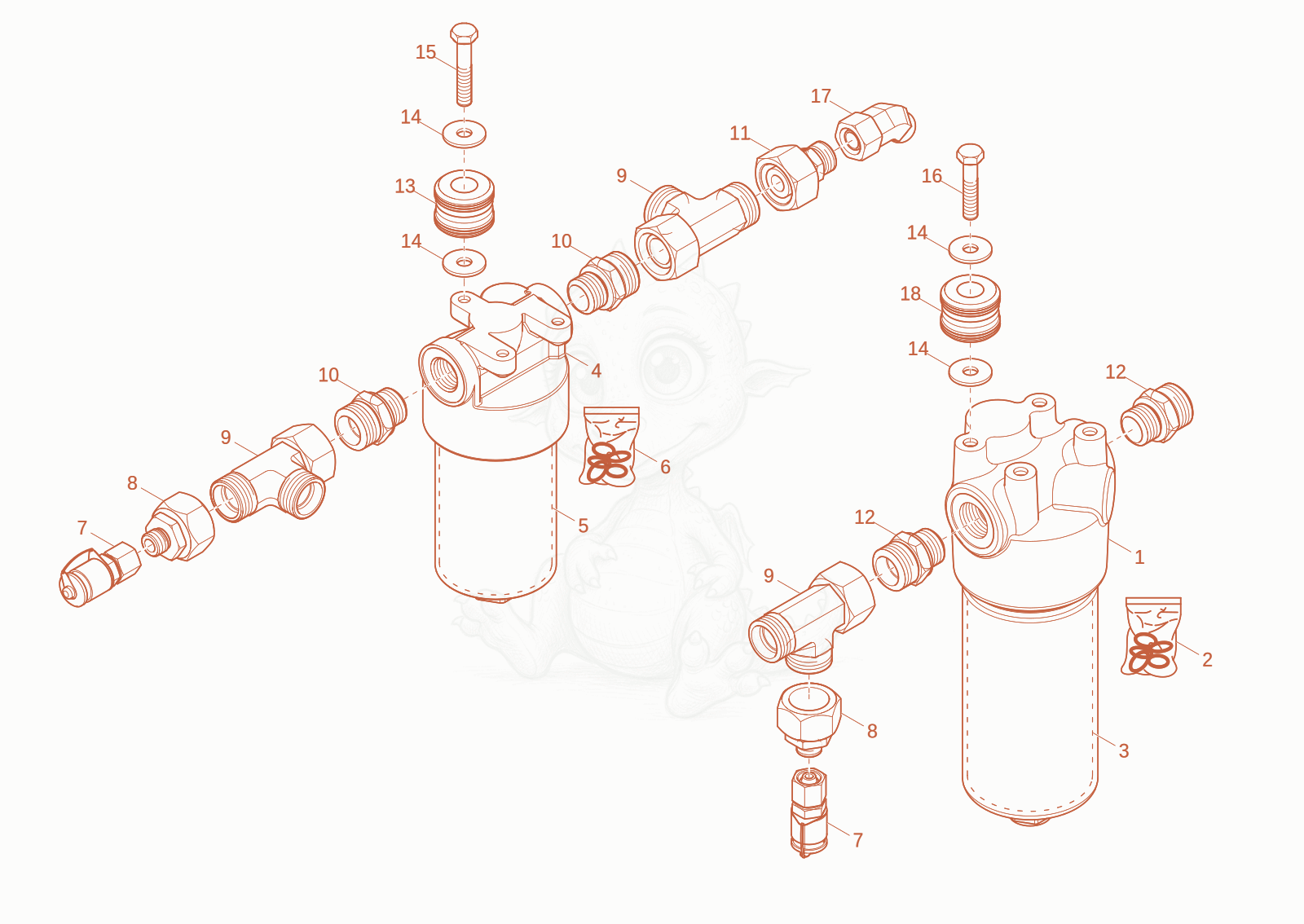

DW90-3 HYDRAULIC OIL FILTER Diagram

Exploded parts diagram of the HYDRAULIC OIL FILTER of a Wacker Neuson DW90-3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000295316Price
    Hydraulicoilfiltercomplete 1000295316×1
  • 21000383102Not stocked
    seal kit×1
  • 31000298400Price
    FILTER ELEMENT - 1000298400×1
  • 41000310581Not stocked
    pressure filter×1
  • 51000350432Not stocked
    reflux filter insert×1
  • 61000350435Not stocked
    seal kit×1
  • 71000000575Not stocked
    minimess point×2
  • 81000082862Not stocked
    screw joint×2
  • 91000015517Not stocked
    screw joint×3
  • 101000082979Price
    GE18LR1/2EDOMDA3C - 1000082979×2
  • 111000085039Price
    RED18/12LOMDA3C - 1000085039×1
  • 121000085104Price
    GE18LM22X1,5EDOMDA3C - 1000085104×2
  • 131000541968Not stocked
    rubber buffer×3
  • 141000085607Price
    washer - 1000085607×12
  • 151000015380Not stocked
    hex screw×3
  • 161000085391Price
    hex screw - 1000085391×3
  • 171000188085Price
    EV12LOMDA3C - 1000188085×1
  • 181000438904Not stocked
    rubber buffer×3
