DW90-2

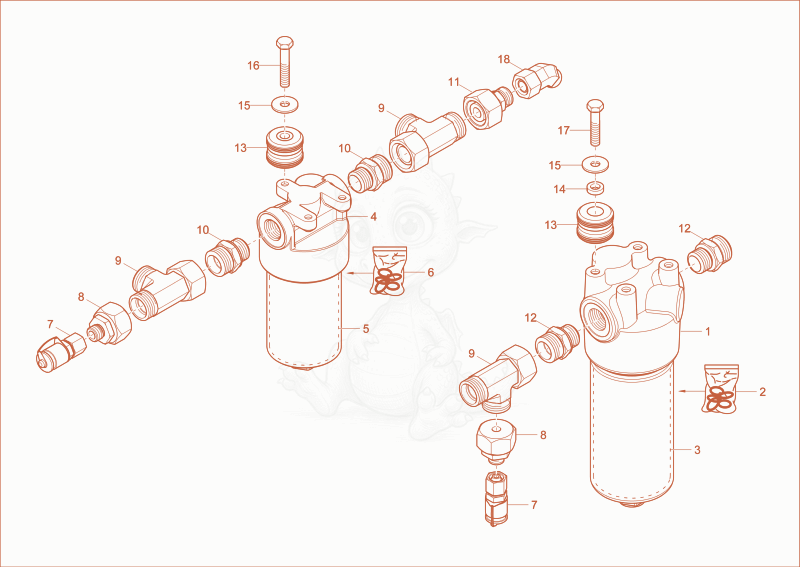

DW90-2 HYDRAULIC OIL FILTER Diagram

Exploded parts diagram of the HYDRAULIC OIL FILTER of a Wacker Neuson DW90-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000295316Price
    Hydraulicoilfiltercomplete 1000295316×1
  • 21000383102Not stocked
    seal kit×1
  • 31000298400Price
    FILTER ELEMENT - 1000298400×1
  • 41000310581Not stocked
    pressure filter×1
  • 51000350432Not stocked
    reflux filter insert×1
  • 61000350435Not stocked
    seal kit×1
  • 71000000575Not stocked
    minimess point×2
  • 81000082862Not stocked
    screw joint×2
  • 91000015517Not stocked
    screw joint×3
  • 101000082979Price
    GE18LR1/2EDOMDA3C - 1000082979×2
  • 111000085039Price
    RED18/12LOMDA3C - 1000085039×1
  • 121000085104Price
    GE18LM22X1,5EDOMDA3C - 1000085104×2
  • 131000446503Price
    RUBBER--BUFFER - 1000446503×6
  • 141000446955Price
    distance disc - 1000446955×3
  • 151000013027Not stocked
    washer×6
  • 161000015380Not stocked
    hex screw×3
  • 171000085392Price
    hex screw M8x40-8.8 A2C DIN933 - 1000085392×3
  • 181000188085Price
    EV12LOMDA3C - 1000188085×1
