DW60 Dumper

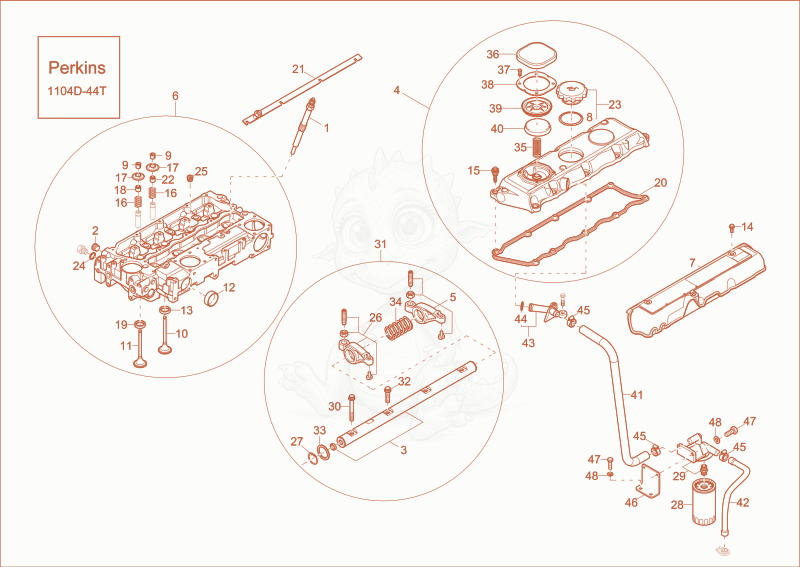

DW60 CYLINDER HEAD, VALVE COVER Diagram
- Glow plug - 1000207550×4
- LOCK SCREW - 1000199699×2
- Shaft - 1000207599×1
- Valvecover 1000130603×1
- ROCKER ARM - 1000257227×4
- 61000313719Not stockedcylinder head×1
- CYLINDERHEAD COVER - 1000207632×1
- 81000115536Not stockedo-ring×1
- CLAMP - 1000257210×8
- EXHAUST VALVE - 1000257221×4
- INTAKE VALVE - 1000257207×4
- 121000140873Not stockedlock plug×1
- 131000130580Not stockedvalve×4
- SCREW - 1000130616×3
- 151000130614Not stockedscrew×10
- valve - 1000257208×8
- VALVE - 1000257209×8
- VALVE SHAFT SEAL - 1000207596×4
- valve - 1000313720×4
- VALVE COVER SEAL - 1000130606×1
- 211000313865Not stockedcollect block×1
- VALVE SHAFT SEAL - 1000257222×4
- cap - 1000089108×1
- O-RING - 1000130588×1
- LOCK PLUG - 1000199889×4
- ROCKER ARM - 1000257225×4
- lock ring - 1000207441×2
- Breather - 1000313798×1
- 291000313793Not stockedFilter head×1
- Screw - 1000257228×1
- Valvecontrolling 1000257224×1
- Screw - 1000257229×3
- Screw - 1000257228×1
- Spring - 1000207439×1
- 351000130609Not stockedspring×1
- 361000130615Not stockedcover×1
- Screw - 1000257248×1
- Cover - 1000207625×1
- 391000130611Not stockeddiaphragm×1
- Cap - 1000207624×1
- HOSE - 1000298686×1
- HOSE - 1000313796×1
- BREATHER PIPE - 1000257249×1
- O-ring - 1000257253×1
- 451000019590Not stockedhose clamp×3
- angle - 1000313431×1
- 471000013008Not stockedhex screw×4
- 481000015431Not stockedwasher×4
