DW40-2

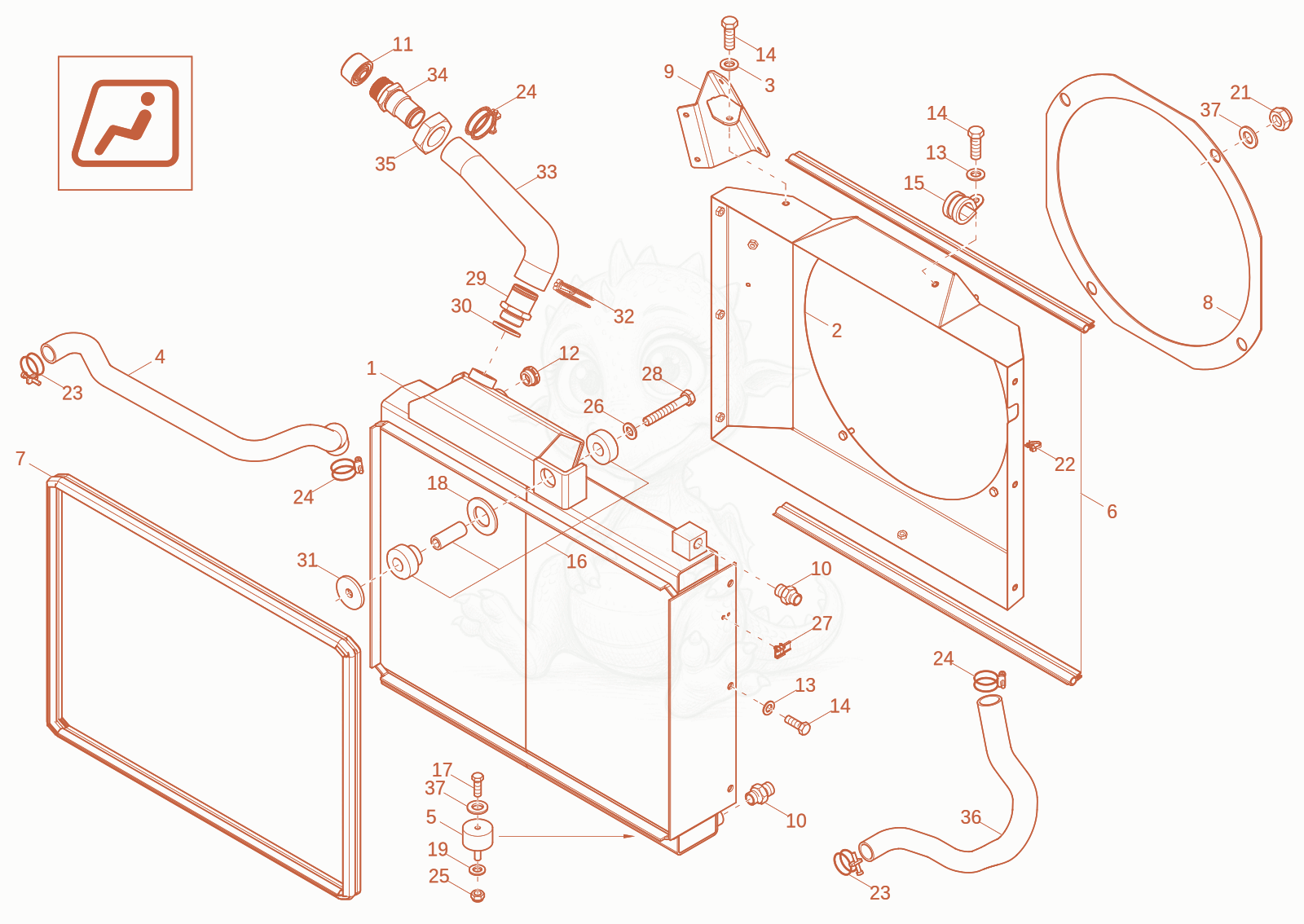

DW40-2 combicooler (option) Diagram
- radiator - 1000429558×1
- Radiator scoop - 1000496234×1
- 31000013027Not stockedwasher×2
- cooler water hose - 1000491721×1
- 51000004819Not stockedswing metal buffer×2
- rubber profile 1,5-3mm - 1000098164×2
- 71000017845Not stockedrubber profile×3
- plate - 1000399267×1
- bracket - 1000400362×1
- GE18LR1/2EDOMDA3C - 1000082979×2
- 111000375983Not stockedcooler cap×1
- view glass G3/4" - 1000273882×1
- 131000015431Not stockedwasher×8
- 141000013008Not stockedhex screw×10
- 151000062589Not stockedpipe clamp×2
- METAL- RUBBER BUFFER - 1000105025×1
- hex screw M10x20-8.8 A2C DIN933 - 1000085411×2
- WASHER - 1000400782×1
- washer 10,5 A2C DIN125 - 1000015432×2
- Washer 10,5 St A2C - 1000092303×4
- 211000357534Not stockedhexagon nut×4
- 221000090083Not stockedcable strap×4
- hose clamp - 1000285399×2
- hose clamp - 1000285400×2
- 251000357535Not stockedhexagon nut×2
- 261000049219Not stockedwasher×1
- 271000293439Not stockedclip×1
- HEX SCREW - 1000085332×1
- 291000434076Not stockedend piece×1
- 301000390986Not stockedseal ring×1
- washer - 1000438292×1
- hose clamp - 1000170981×1
- 331000434085Not stockedpreshaped tube×1
- 341000434077Not stockedend piece×1
- nut - 1000408736×1
- 361000429792Not stockedwater hose×1
- 371000426230Not stockedlock washer×2
