DW30-2

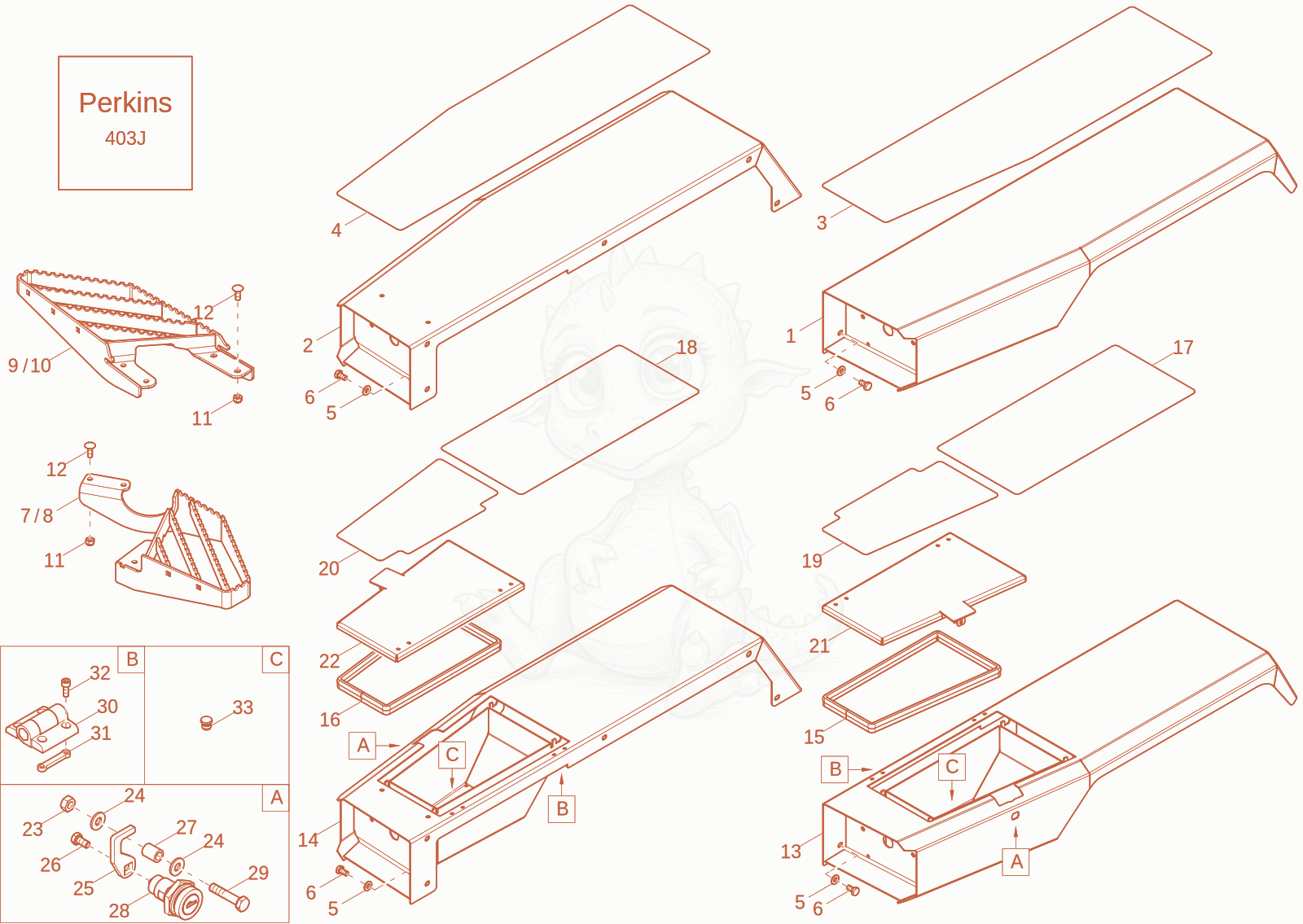

DW30-2 wheel cover (option) Diagram

Exploded parts diagram of the wheel cover (option) of a Wacker Neuson DW30-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000487725Price
    wheel cover - 1000487725×1
  • 21000487723Price
    wheel cover - 1000487723×1
  • 31000489367Price
    mat - 1000489367×1
  • 41000489366Price
    mat - 1000489366×1
  • 51000094974Price
    washer M10-DIN134 - 1000094974×10
  • 61000085411Price
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×10
  • 71000446292Not stocked
    foot step×1
  • 81000489349Price
    foot step - 1000489349×1
  • 91000400262Not stocked
    foot step×1
  • 101000488232Price
    foot step - 1000488232×1
  • 111000357535Not stocked
    hexagon nut×7
  • 121000299982Price
    door strap screw - 1000299982×7
  • 131000487731Price
    wheel cover - 1000487731×1
  • 141000487730Price
    wheel cover - 1000487730×1
  • 151000097922Price
    rubber profile - 1000097922×2.2
  • 161000097922Price
    rubber profile - 1000097922×2.2
  • 171000489369Price
    mat - 1000489369×1
  • 181000489368Price
    mat - 1000489368×1
  • 191000489371Price
    mat - 1000489371×1
  • 201000489370Price
    mat - 1000489370×1
  • 211000546191Not stocked
    cover×1
  • 221000546190Not stocked
    cover×1
  • 231000015405Not stocked
    hexagon nut×2
  • 241000094966Price
    washer M6,4-DIN134 - 1000094966×4
  • 251000476326Price
    plate - 1000476326×2
  • 261000085377Price
    hex screw - 1000085377×2
  • 271000490868Price
    Sleeve - 1000490868×2
  • 281000069463Not stocked
    cylinder lock×2
  • 291000085384Price
    6-Point screw M6x25-8.8 A2C-DIN933 - 1000085384×2
  • 301000463424Price
    hinge - 1000463424×4
  • 311000492607Not stocked
    thread plate×8
  • 321000082310Price
    cheese head screw - 1000082310×16
  • 331000327361Not stocked
    plug×4
