DW20-2

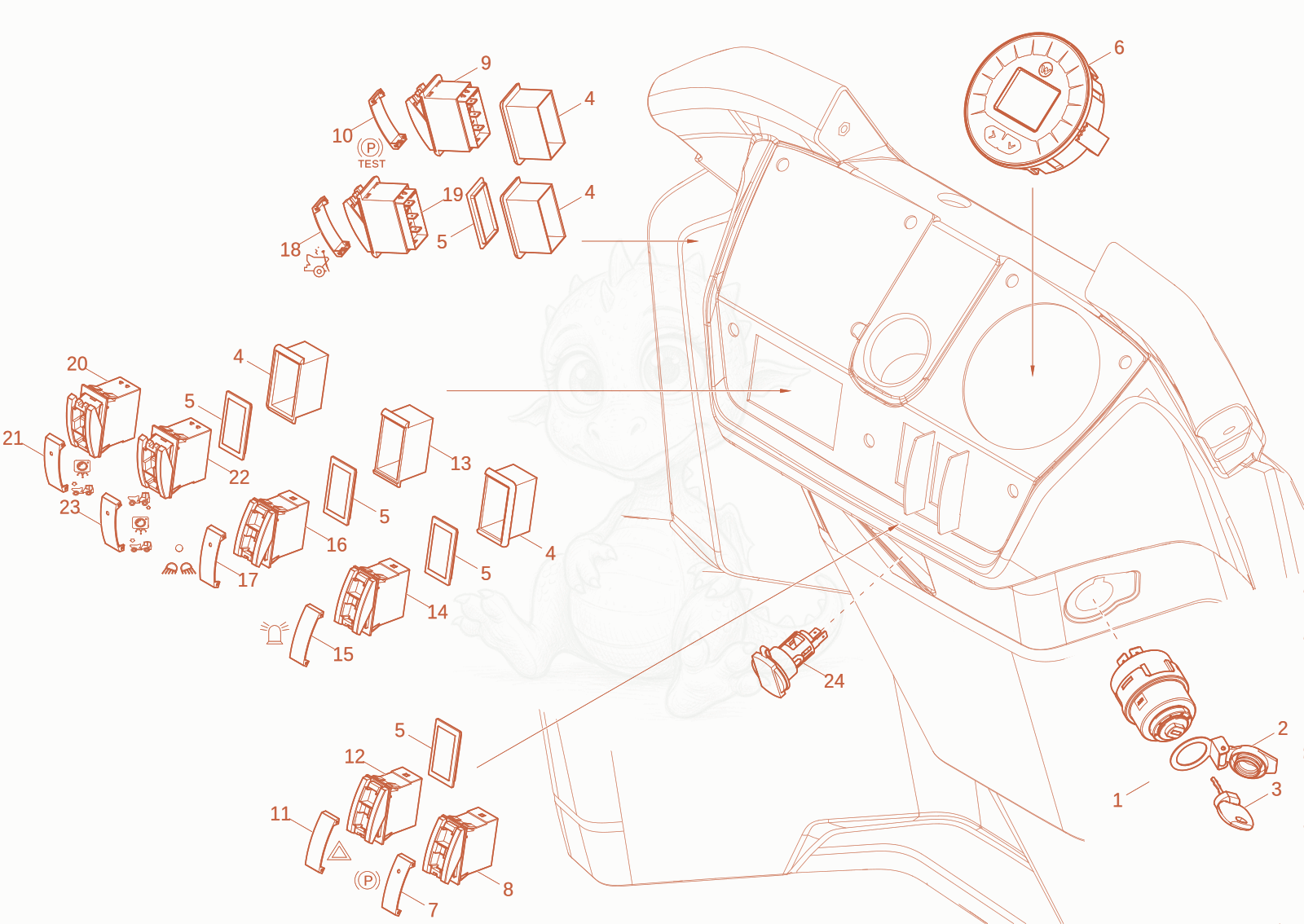

DW20-2 instrument panel Diagram

Exploded parts diagram of the instrument panel of a Wacker Neuson DW20-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000184001Price
    Ignition lock-R-1000125516 - 1000184001×1
  • 21000081684Price
    cover ignition lock - 1000081684×1
  • 31000184819Price
    EZ17 Key without cap - 1000184819×1
  • 41000027168Not stocked
    switch frame×4
  • 51000027006Not stocked
    blind cover×5
  • 61000397022Price
    indicator instrument - 1000397022×1
  • 71000187682Price
    Symbol - 1000187682×1
  • 81000353496Not stocked
    tilt switch×1
  • 91000353593Not stocked
    Rocker switch×1
  • 101000395685Price
    SYMBOL - 1000395685×1
  • 111000142880Price
    symbol - 1000142880×1
  • 121000353603Not stocked
    tilt switch×1
  • 131000027178Not stocked
    switch frame×1
  • 141000353495Not stocked
    tilt switch×1
  • 151000052356Not stocked
    symbol×1
  • 161000353588Not stocked
    tilt switch×1
  • 171000285851Price
    Symbol - 1000285851×1
  • 181000395681Not stocked
    SYMBOL SLE×1
  • 191000353495Not stocked
    tilt switch×1
  • 201000353593Not stocked
    Rocker switch×1
  • 211000481632Price
    Symbol - 1000481632×1
  • 221000353597Not stocked
    tilt switch×1
  • 231000483506Price
    Symbol - 1000483506×1
  • 241000485001Price
    Power socket 12V Cabin - 1000485001×1
