DW15

DW15 fuel tank Diagram

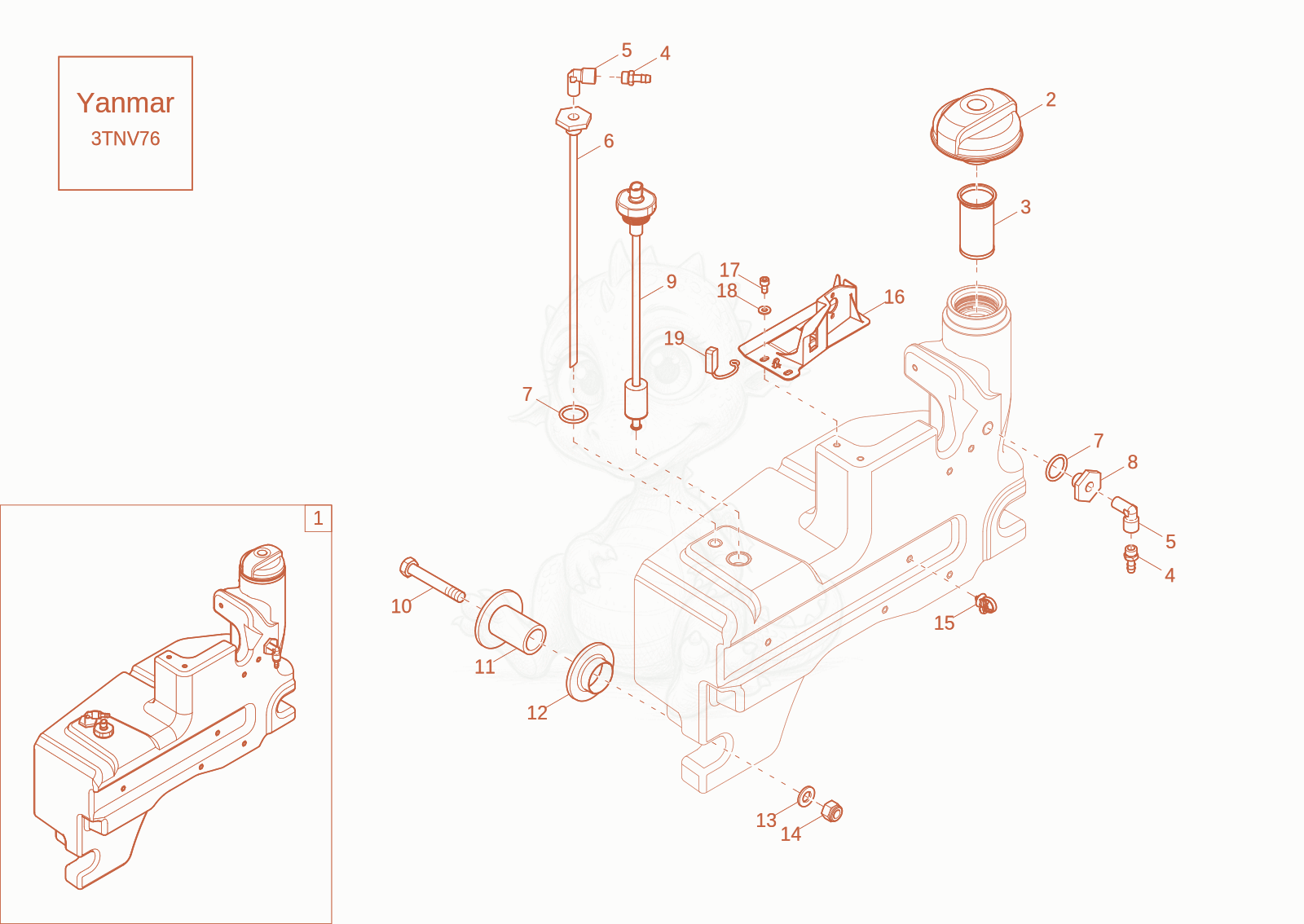

Exploded parts diagram of the fuel tank of a Wacker Neuson DW15, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000510894Not stocked
    fuel tank×1
  • 21000428730Not stocked
    filler cap×1
  • 31000267866Price
    FILING STRAINER - 1000267866×1
  • 41000490088Not stocked
    hose sleeve×2
  • 51000490090Not stocked
    angle cut piece×2
  • 61000512238Not stocked
    suction pipe×1
  • 71000530723Not stocked
    o-ring×2
  • 81000490093Not stocked
    screw joint×1
  • 91000512237Not stocked
    fuel transmitter×1
  • 101000082375Price
    HEX SCREW - 1000082375×2
  • 111000403917Price
    Fastening - 1000403917×2
  • 121000494909Price
    rubber disc - 1000494909×2
  • 131000049219Not stocked
    washer×2
  • 141000357536Not stocked
    hexagon nut×2
  • 151000375997Not stocked
    fixing bracket×6
  • 161000519939Not stocked
    bracket×1
  • 171000085495Price
    cheese head screw M 8x16-8.8 A2C - 1000085495×3
  • 181000015448Not stocked
    washer×3
  • 191000437994Not stocked
    protecting cap×1
