DV60-2

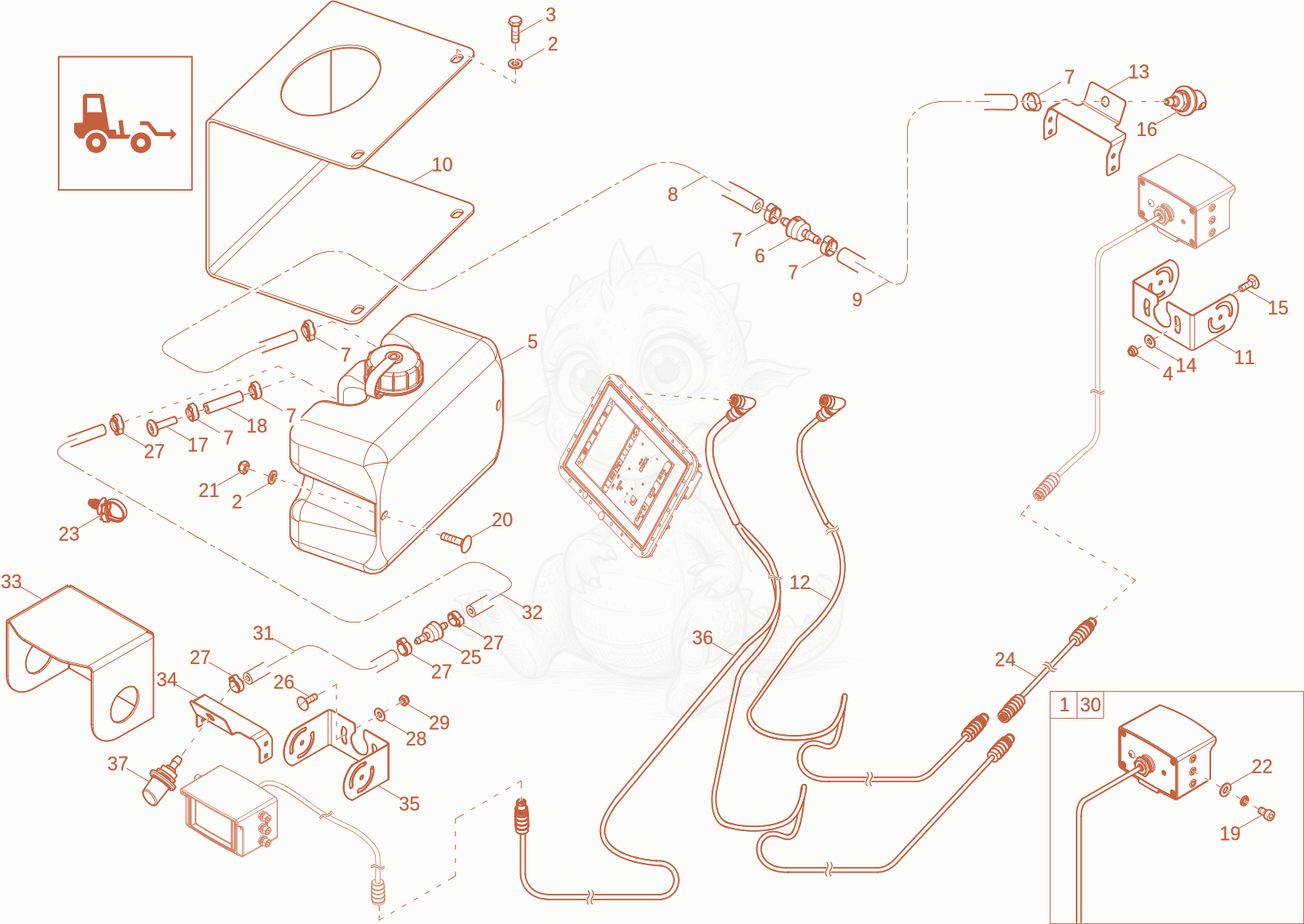

DV60-2 Reversing Camera (OPTION) Diagram
- Camera - 1000457582×1
- washer M6,4-DIN134 - 1000094966×6
- 31000018400Not stockedhex screw×4
- HEXAGON NUT - 1000085587×2
- 51000493365Not stockedwasher tank×1
- 61000466341Not stockednon return valve×1
- HOSE CLAMP - 1000223252×6
- 81000470054Not stockedhose×1.5
- 91000470054Not stockedhose×0.4
- 101000552655Not stockedcover×1
- bracket - 1000500643×1
- cable - 1000457332×1
- bracket - 1000501797×1
- Washer M5,3-DIN134 - 1000094967×2
- door strap screw - 1000301335×2
- nozzle - 1000470053×1
- 171000529763Not stockedlock plug×1
- 181000470054Not stockedhose×0.1
- 191000048160Not stockedcheese head screw×6
- door strap screw - 1000299983×2
- 211000357533Not stockedhexagon nut×2
- washer 4,3 DIN125 - 1000094961×6
- 231000375997Not stockedfixing bracket×1
- cable - 1000457490×1
- 251000466341Not stockednon return valve×1
- door strap screw - 1000301335×2
- HOSE CLAMP - 1000223252×4
- Washer M5,3-DIN134 - 1000094967×2
- HEXAGON NUT - 1000085587×2
- Camera - 1000457582×2
- 311000470054Not stockedhose×0.7
- 321000470054Not stockedhose×4.3
- COVER - 1000501796×1
- bracket - 1000501797×1
- bracket - 1000500643×1
- cable - 1000457101×1
- nozzle - 1000470053×1
