DV45

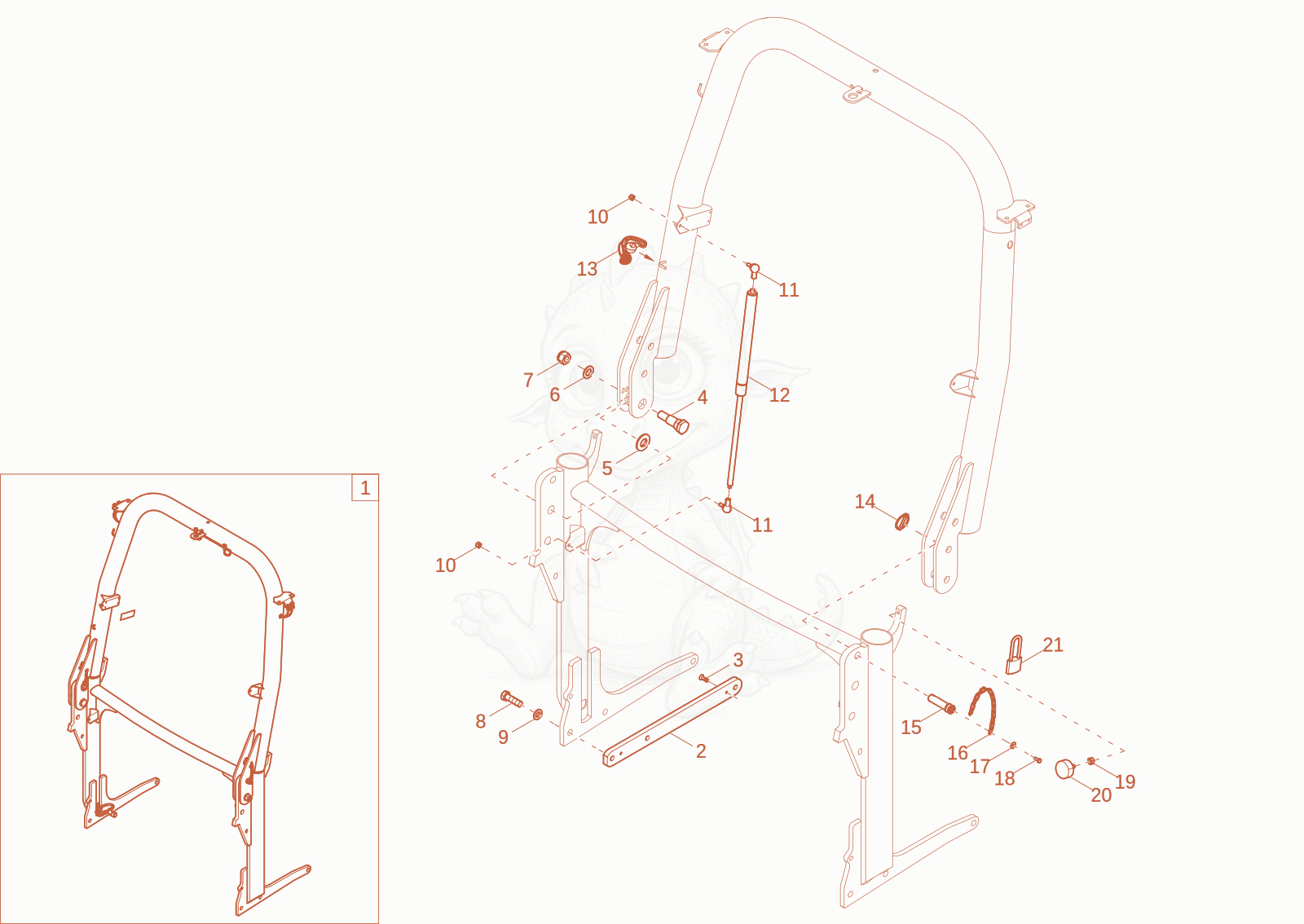

DV45 NLA OVERROLL BAR Diagram

Exploded parts diagram of the NLA OVERROLL BAR of a Wacker Neuson DV45, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000515359Not stocked
    transformation kit ROPS Bow×1
  • 21000481558Not stocked
    plate×2
  • 31000021779Not stocked
    countersunk screw×4
  • 41000297236Price
    pin - 1000297236×2
  • 51000297213Price
    disc spring - 1000297213×4
  • 61000015440Not stocked
    u-washer×2
  • 71000386460Price
    nut - 1000386460×2
  • 81000047713Not stocked
    hex screw×6
  • 91000426233Not stocked
    lock washer×6
  • 101000357534Not stocked
    hexagon nut×4
  • 111000222383Price
    ball and socket AS13 - 1000222383×4
  • 121000303751Not stocked
    gas strut×2
  • 131000470148Not stocked
    clmap strap×1
  • 141000015457Not stocked
    cotter pin×2
  • 151000297201Price
    pin - 1000297201×2
  • 161000097224Price
    CHAIN - 1000097224×2
  • 171000095343Price
    washer A 6,4 St A2C DIN9021 - 1000095343×2
  • 181000085382Price
    HEX SCREW - 1000085382×2
  • 191000015407Not stocked
    hexagon nut×2
  • 201000015621Not stocked
    rubber buffer×2
  • 211000363722Price
    padlock - 1000363722×1
