DT25

DT25 PILOT OPPERATED CHECK VALVES (OPTION) Diagram

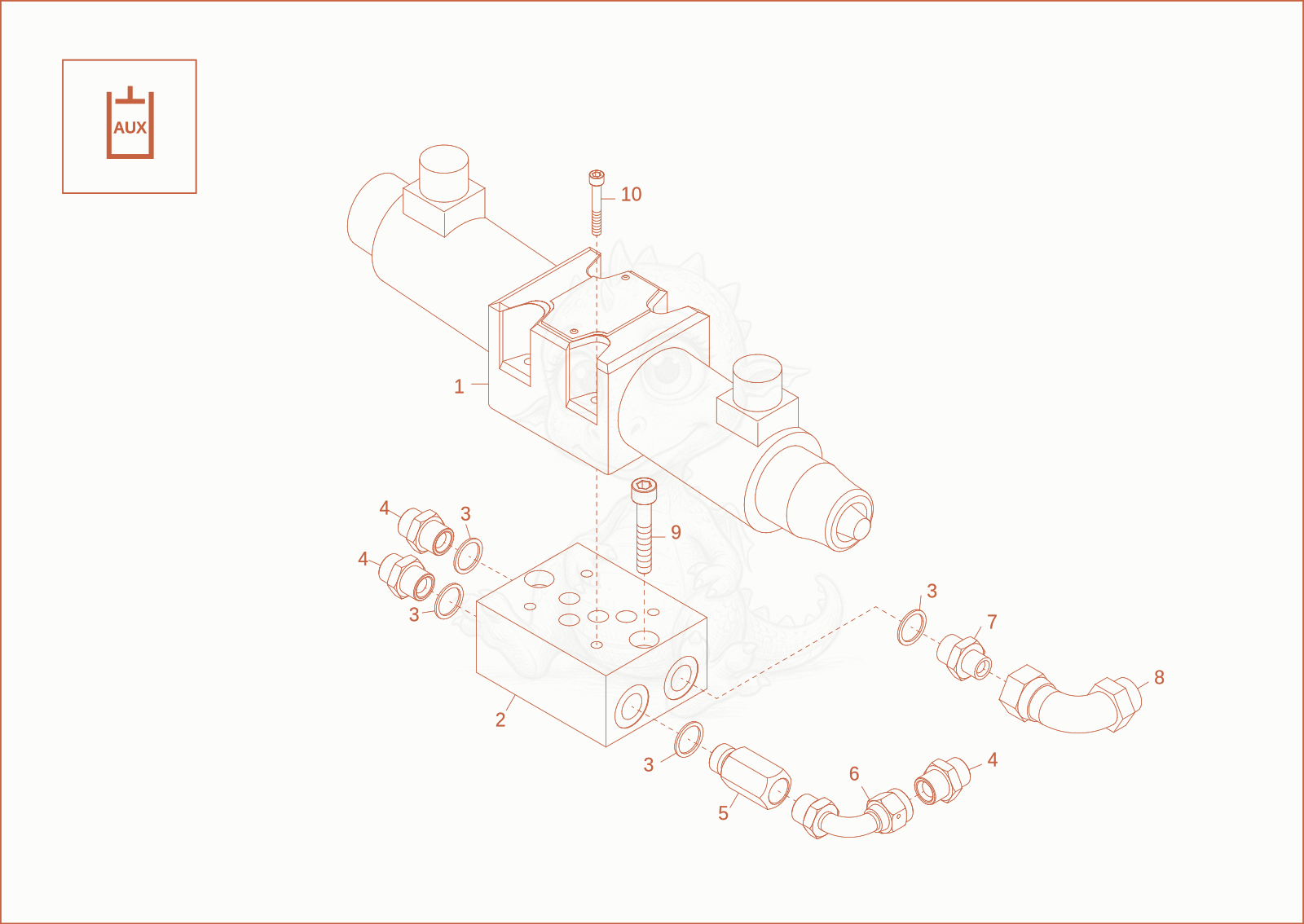

Exploded parts diagram of the PILOT OPPERATED CHECK VALVES (OPTION) of a Wacker Neuson DT25, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000285139Not stocked
    solenoid valve×1
  • 21000285140Not stocked
    bracket×1
  • 31000022187Not stocked
    seal ring×4
  • 41000270646Price
    DOUBLE NIPPLE - 1000270646×3
  • 51000285151Not stocked
    extension×1
  • 61000274701Price
    PIPE BOW - 1000274701×1
  • 71000270695Price
    ADAPTER - 1000270695×1
  • 81000281630Not stocked
    screw joint×1
  • 91000285184Price
    Screw M10x50-10.9 DACRO-DIN912 - 1000285184×2
  • 101000085460Price
    cheese head screw - 1000085460×4
