DT10

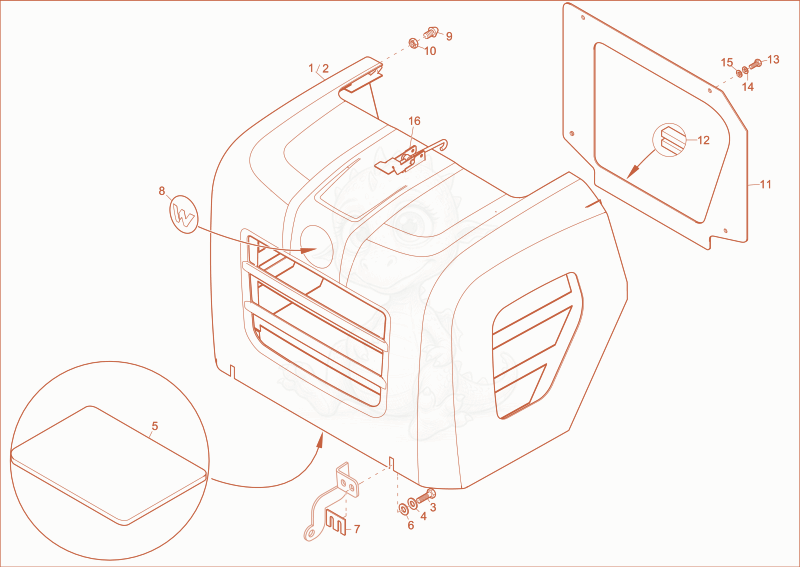

DT10 engine hood Diagram

Exploded parts diagram of the engine hood of a Wacker Neuson DT10, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000327529Price
    BONNET - 1000327529×1
  • 21000327530Price
    BONNET - 1000327530×1
  • 31000013008Not stocked
    hex screw×4
  • 41000271022Price
    tension disc - 1000271022×4
  • 51000283853Price
    insulating mat - 1000283853×1
  • 61000015431Not stocked
    washer×4
  • 71000321843Not stocked
    distance piece×6
  • 81000189891Price
    badge - 1000189891×1
  • 91000270125Price
    RUBBER BUFFER - 1000270125×2
  • 101000015405Not stocked
    hexagon nut×2
  • 111000279037Price
    Cover 1000279037×1
  • 121000279038Price
    RUBBER COVER - 1000279038×1
  • 131000085382Price
    HEX SCREW - 1000085382×4
  • 141000015444Not stocked
    spring washer×4
  • 151000015430Not stocked
    u-washer×4
  • 161000270728Price
    LOCK HOOK - 1000270728×1
