DT08

DT08 gear pump Diagram

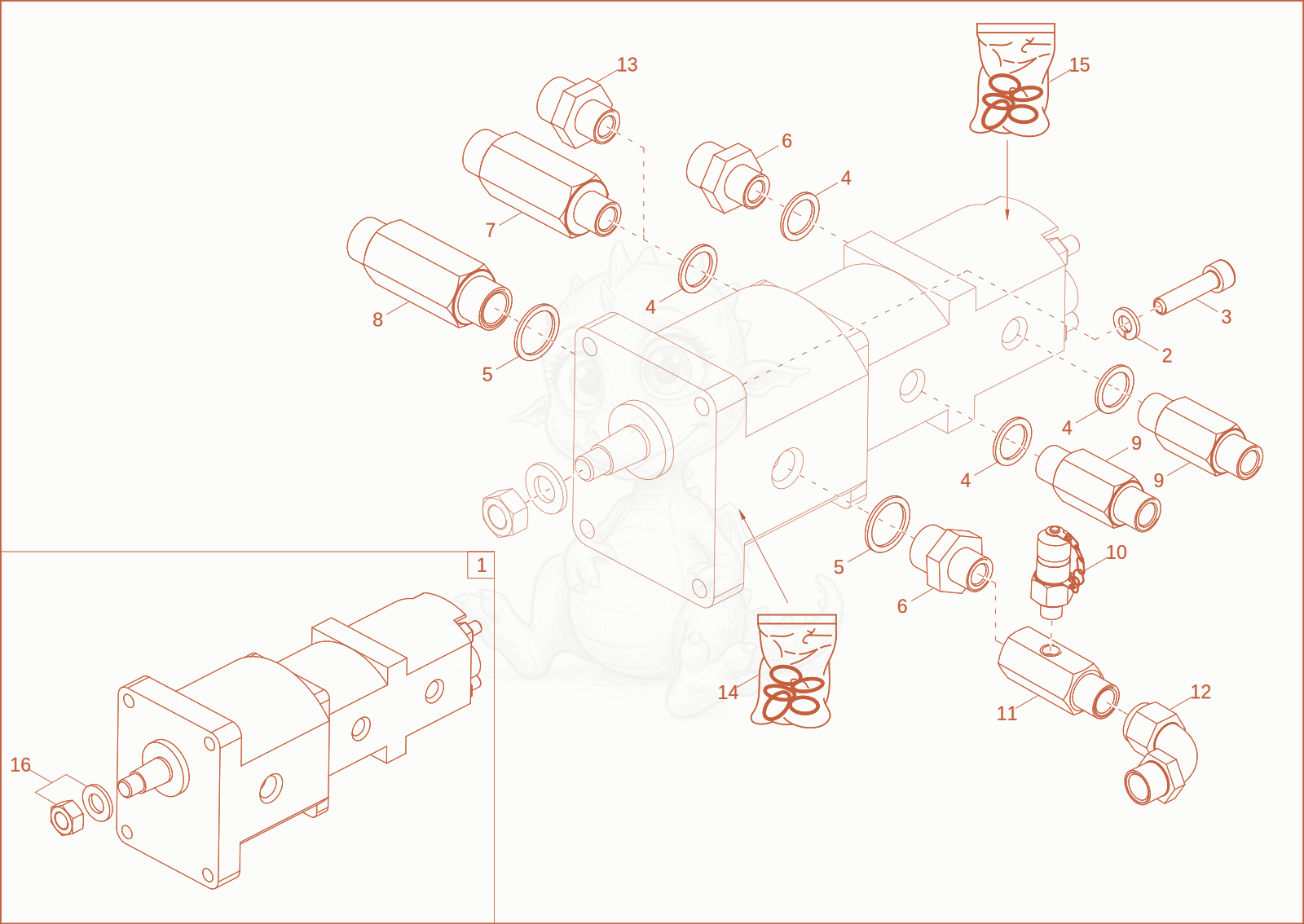

Exploded parts diagram of the gear pump of a Wacker Neuson DT08, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000272500Price
    Gearpump 1000272500×1
  • 21000030951Not stocked
    spring washer×4
  • 31000048250Not stocked
    cheese head screw×4
  • 41000129428Price
    copper ring - 1000129428×4
  • 51000022187Not stocked
    seal ring×2
  • 61000270637Price
    ADAPTER - 1000270637×2
  • 71000272616Price
    SCREW JOINT - 1000272616×1
  • 81000272615Price
    SCREW JOINT - 1000272615×1
  • 91000272617Price
    SCREW JOINT - 1000272617×2
  • 101000270647Price
    MINIMESS POINT - 1000270647×1
  • 111000270664Price
    screw joint - 1000270664×1
  • 121000270661Price
    Screw Joint - 1000270661×1
  • 131000270637Price
    ADAPTER - 1000270637×1
  • 141000287390Price
    SEAL KIT - 1000287390×1
  • 151000287441Price
    SEAL KIT - 1000287441×1
  • 161000548490Not stocked
    nut×1
