DS70Y 13"

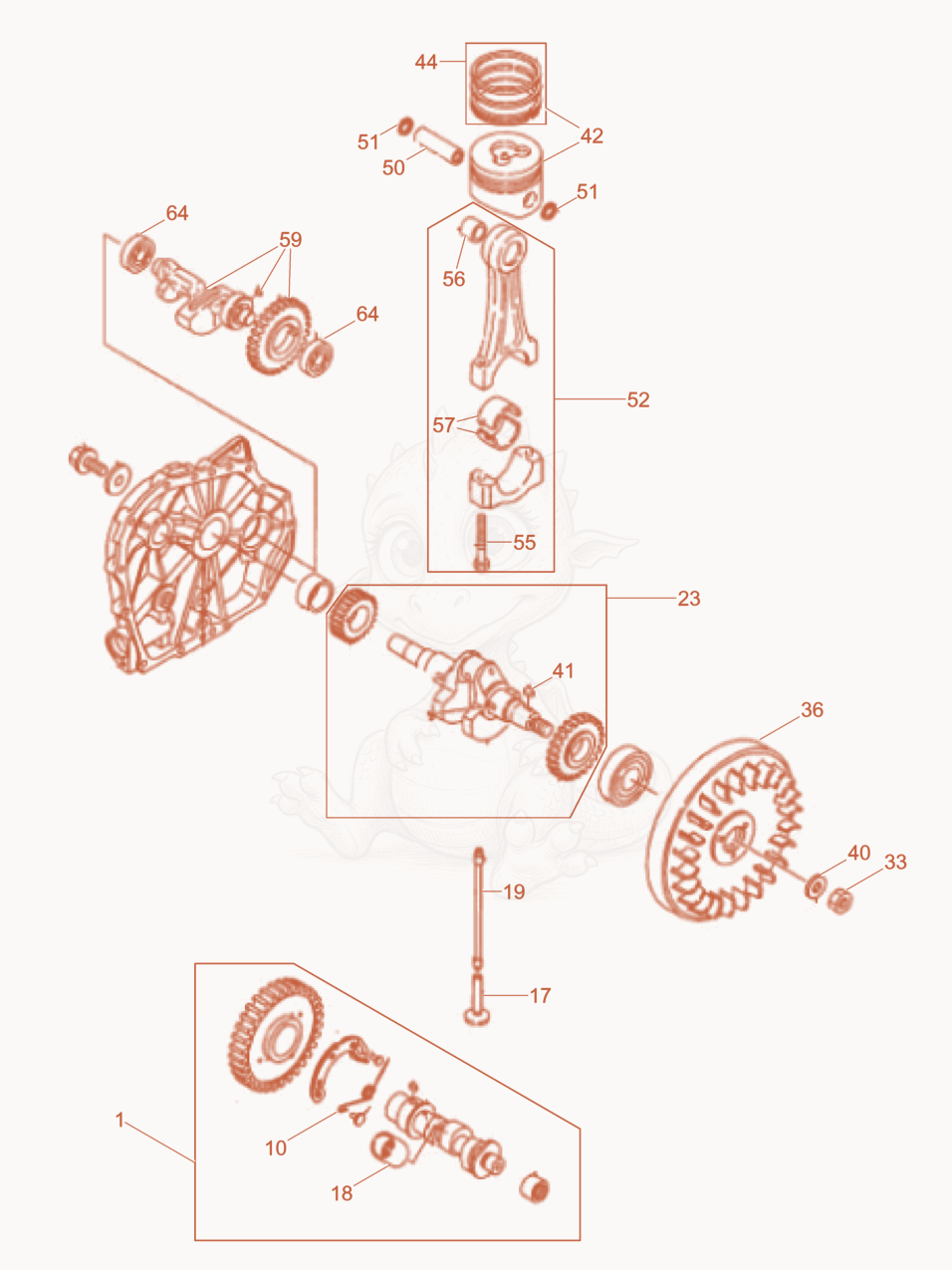

DS70Y13IN Crankshaft-Camshaft-Piston Diagram
- CAMSHAFT ASSEMBLY - 5000119699×1
- 105100039149Not stockedLeg spring×1
- 175100039281Not stockedTappet×2
- tappet - 5000119744×1
- 195100039282Not stockedValve Push Rod×1
- CRANKSHAFT ASSEMBLY - 5000119698×1
- NUT M16 X 1.5,HEX. - 5000073675×1
- 365000118363Not stockedFan×1
- Washer - 5000073678×1
- KEY 4 X 4 X 12 - 5000073670×1
- PISTON ASSEMBLY - 5000153577×1
- Set of piston rings - 5100039284×1
- PIN - 5000096727×1
- RET.RING - 5000085602×2
- CONNECTING ROD COMPLETE,STEEL - 5000153431×1
- bolt - 5000119749×2
- BEARING-PIN U.S.=0.25 - 5000119724Unknown×1
- BEARING-PIN U.S.=0.50 - 5000119740Unknown×1
- 565100039285Not stockedSlide bearing×1
- BEARING-CRANKPIN - 5000119747×4
- 595000119697Not stockedShaft×1
- bearing - 5000085603×1
