DS70-RAMMER,13 PL SHO

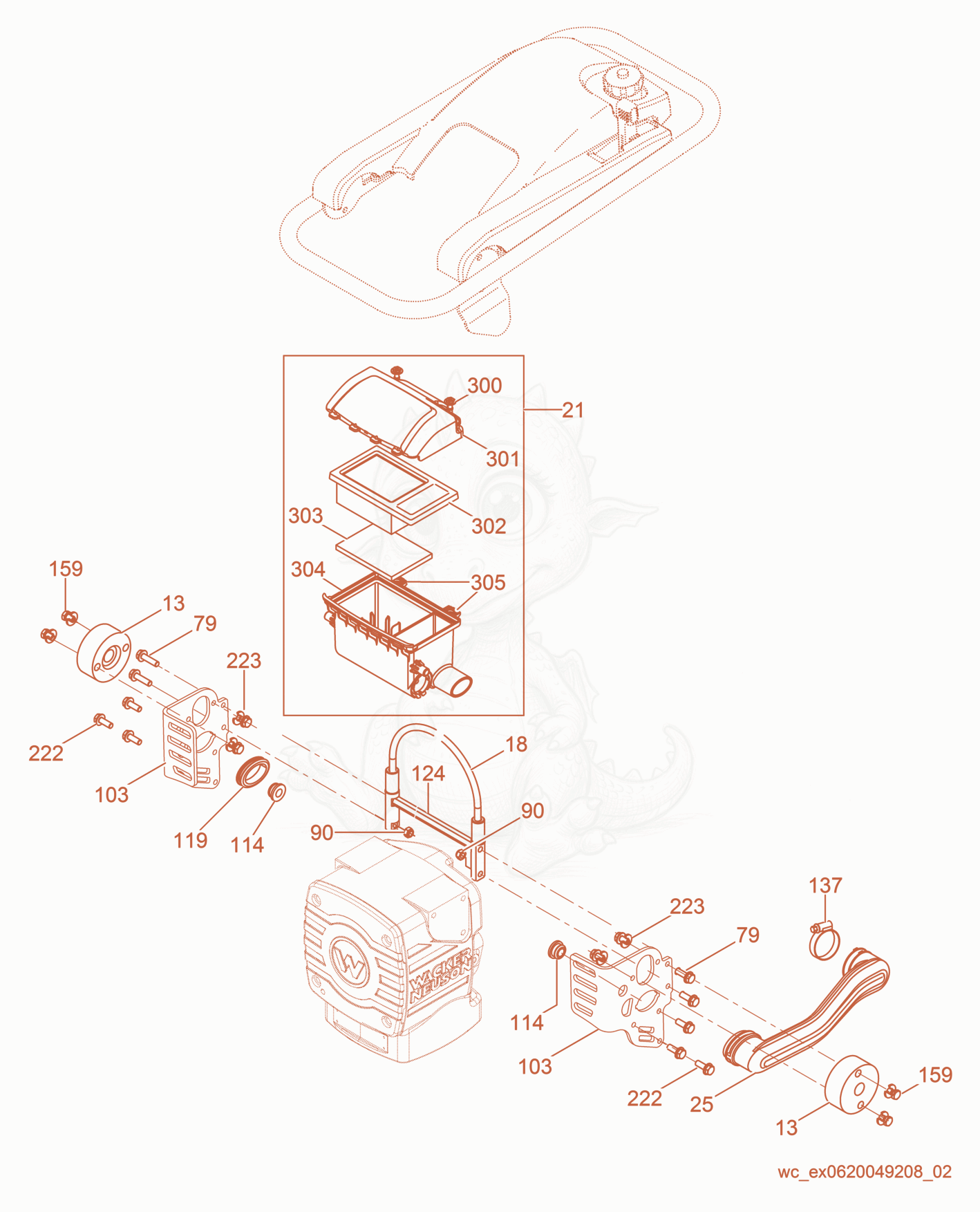

DS70 Air Cleaner cpl. Diagram

Exploded parts diagram of the Air Cleaner cpl. of a Wacker Neuson DS70, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 135000156979Not stocked
    Shockmount×2
  • 185000156936Not stocked
    Cable×1
  • 215200004001Price
    Filter-Air Box,Diesel - 5200004001×1
  • 255000156978Not stocked
    Tube×1
  • 795000011541Not stocked
    Cheese head screw×4
  • 905000010367Price
    NUT-LOCK M8 HEX - 5000010367×2
  • 1035000162274Not stocked
    Shockmount Bracket Set (pair)×1
  • 1145000156981Not stocked
    Grommet×2
  • 1195000156982Price
    GROMMET-OVAL - 5000156982×1
  • 1245000156394Not stocked
    Brace×1
  • 1375000078844Price
    CLAMP,32/50 - 5000078844×1
  • 1595000161246Price
    SCREW M8 X 14 HX.HD. - 5000161246×4
  • 1595000033198Price
    WASHER-LOCK B8 - 5000033198×4
  • 2225000011457Price
    SCREW M8 X 25 HX.HD. - 5000011457×6
  • 2225000033198Price
    WASHER-LOCK B8 - 5000033198×6
  • 2235000012361Price
    SCREW M8 X 16 HX.HD. - 5000012361×4
  • 2235000033198Price
    WASHER-LOCK B8 - 5000033198×4
  • 3005000164398Price
    SCREW-FILTER,AIR BOX - 5000164398×2
  • 3015000164399Price
    COVER-FILTER,AIR BOX ASSEMBLY - 5000164399×1
  • 3025000157193Price
    FILTER-AIR,ELEMENT - 5000157193×1
  • 3035000160459Price
    ELEMENT-PREFILTER - 5000160459×1
  • 3045000164403Not stocked
    Air box base×1
  • 3055000164397Price
    CLIP-FILTER,AIR BOX - 5000164397×2
  • 4005000158690Price
    CAP 1/8 NPT,PLASTIC - 5000158690×1
