Vibration Plate DPU 80-110(r) KMAT

DPU80/110KMAT Bonnet rear cpl. DPU110 Diagram

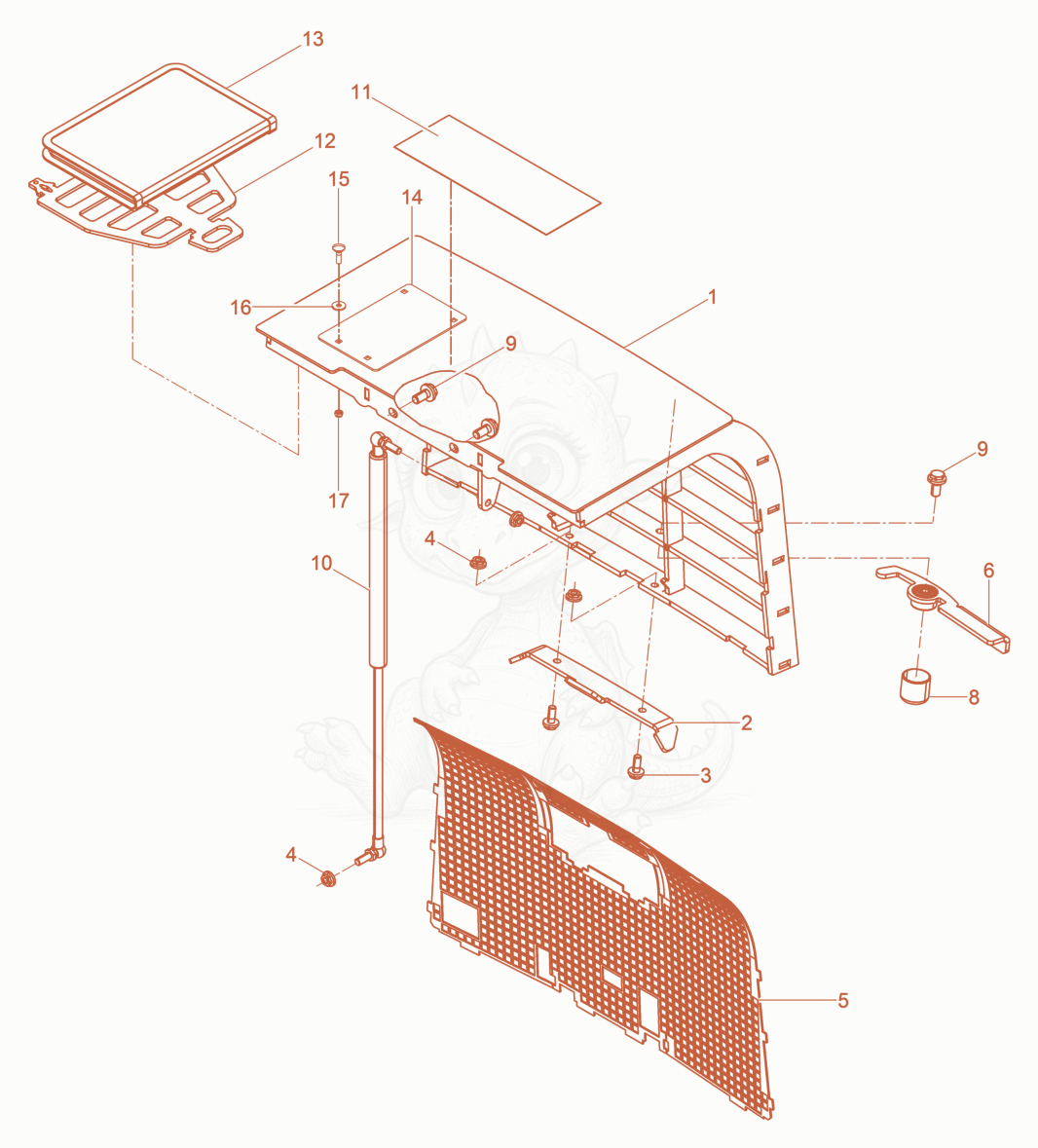

Exploded parts diagram of the Bonnet rear cpl. DPU110 of a Wacker Neuson DPU80/110KMAT, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100010436Price
    Bonnet - 5100010436×1
  • 25100010578Price
    Locking tab rear - 5100010578×1
  • 35100018058Price
    corrugated-head screw M 8x 20 - 5100018058×2
  • 45100017158Price
    Locknut M 8 - 5100017158×4
  • 55100010932Price
    Screen grid - 5100010932×1
  • 55100018921Price
    screen grid rear (DPU100) - 5100018921×1
  • 55100018922Price
    Screen grid rear (DPU100r,c) - 5100018922×1
  • 55100018923Price
    Screen grid rear (DPU100r) - 5100018923×1
  • 65100011262Price
    Lever cpl. - 5100011262×1
  • 85000068355Price
    Protective cap - 5000068355×1
  • 95000210112Price
    SCREW-CORRUGATED HEAD - 5000210112×3
  • 105100005810Price
    Compr. spring - 5100005810×1
  • 115100017956Price
    protection foil 250mm x 90mm - 5100017956×1
  • 125100024201Price
    cloth - 5100024201×1
  • 135100025231Not stocked
    portfolio×1
  • 145100057038Price
    Plate - 5100057038×1
  • 155100048321Price
    Mushroom head bolt - 5100048321×4
  • 165000010372Price
    WASHER B5.3 FLAT - 5000010372×4
  • 175000010369Price
    NUT-LOCK M5 HEX. - 5000010369×4
