DPU7060SC VIBROPLATE,DIESEL,SC

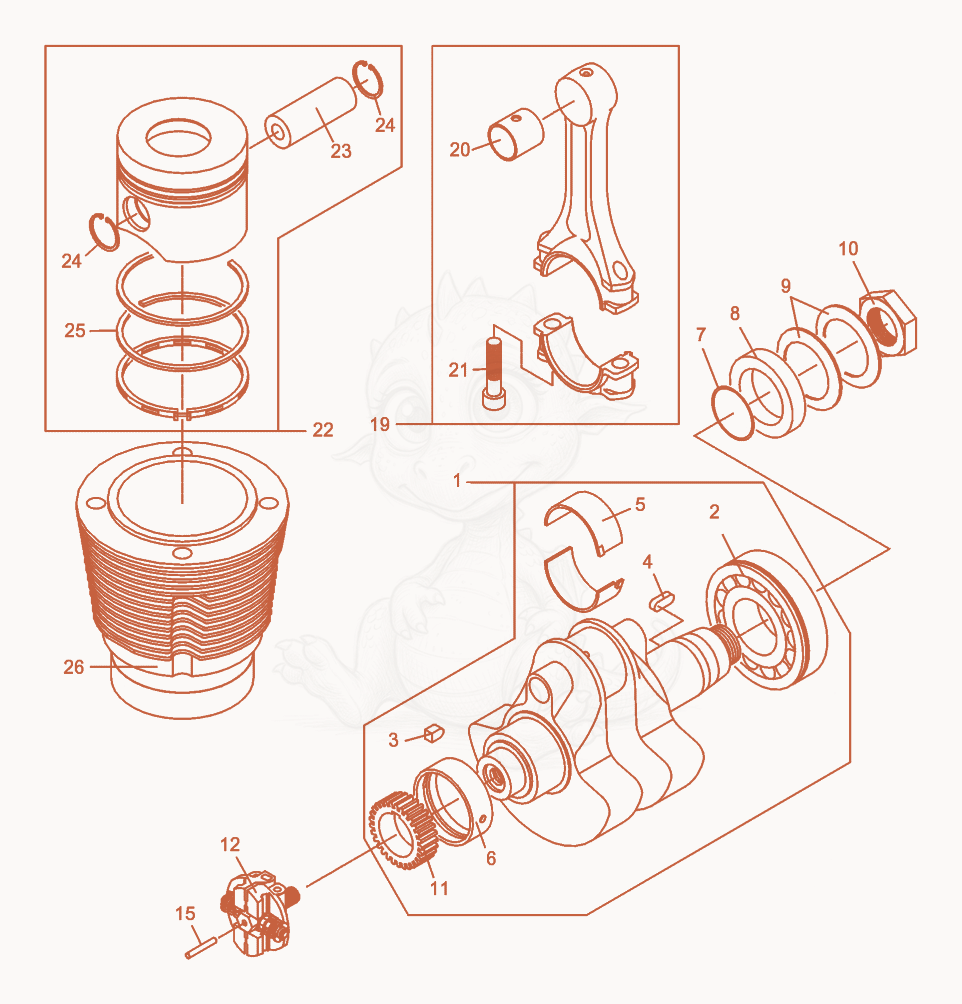

DPU7060SC Crankshaft cpl. Diagram
- 15000099424Not stockedCrankshaft cpl.×1
- 25000037192Not stockedCylindrical roller bearing×1
- KEY B8 X 7 X 12 - 5000037198×1
- KEY A8X5X20,WOODRUFF - 5000204740×1
- 55000099425Not stockedConnecting rod bearing×1
- 55000105390Not stockedConnecting rod bearingBearing×1
- BEARING-PILLOW,COMPL - 5000204775×1
- 65000099428Not stockedBearing bush×1
- 65000105391Not stockedBearing bush×1
- 65000204665Not stockedBearing bush×1
- 75000037203Not stockedRubber ring×1
- 85000099426Not stockedRing×1
- 95000037205Not stockedCup spring×2
- 105000037206Not stockedFly wheel nut×1
- 115000099429Not stockedGear wheel×1
- 125000204644Not stockedCentrifugal governor×1
- 155000037202Not stockedRoller×1
- 195000099430Not stockedConnecting rod cpl.×1
- BUSHING - 5000099432×1
- 215000099431Not stockedConnecting rod screw×2
- 225000204485Not stockedPiston cpl.×1
- 235000099435Not stockedPiston pin×1
- 245000099436Not stockedRetaining ring×2
- SET-PISTON RINGS - 5000099434×1
- 265000204655Not stockedRib cylinder×1
