DPU 7060Fe

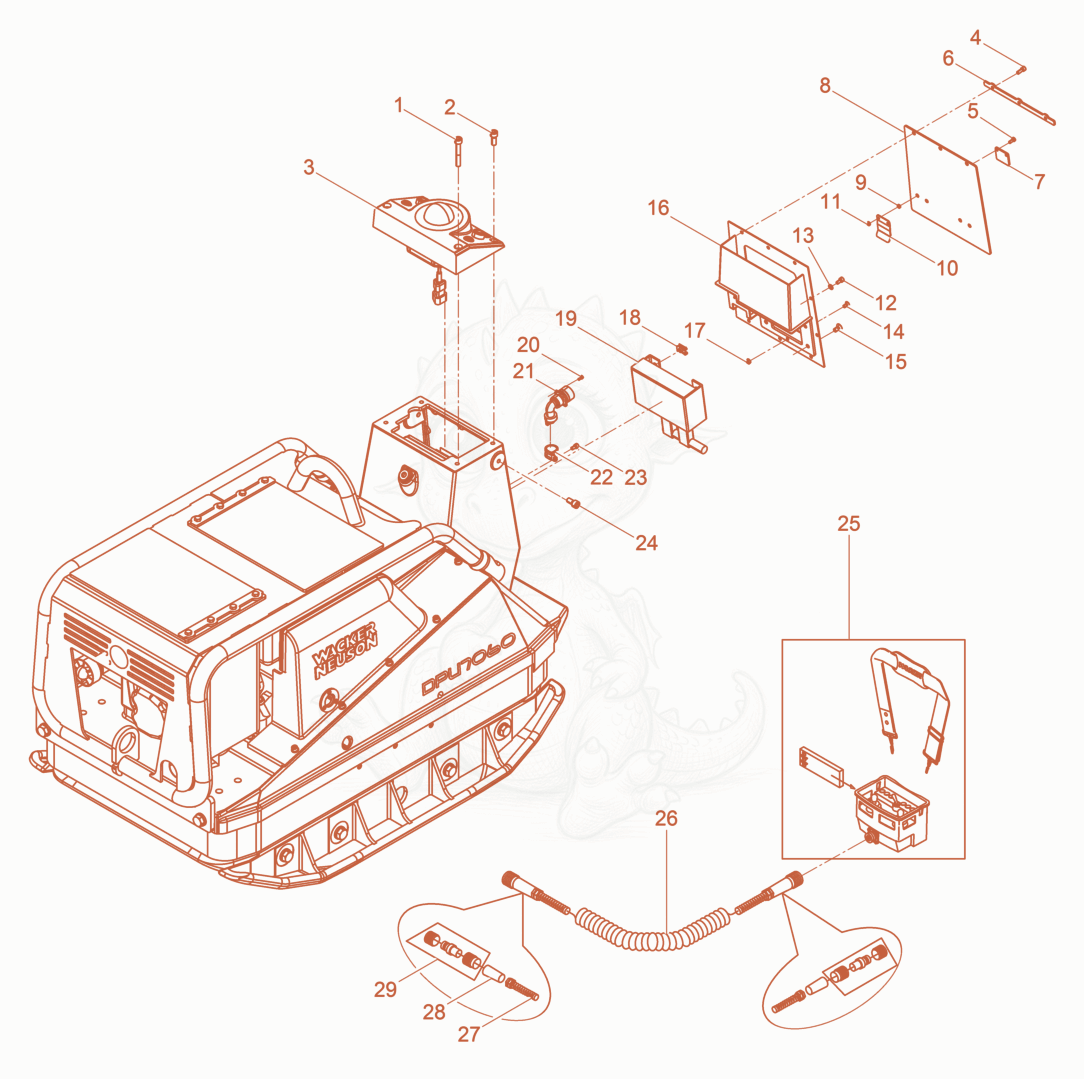

DPU7060FE Vibration Plate Diagram
- SCREW M10 X 65 SOC.HD - 5000013565×2
- SCREW M10 X 25 SOC.HD. - 5000011535×2
- HOUSING CPL. - 5000220020×1
- SCREW M6 X 16 SOC.HD. - 5000011553×3
- SCREW M5 X 12 HX.HD. - 5000011477×4
- SEAL-STRIP - 5000204828×1
- SEAL-STRIP - 5000204805×2
- PLATE-COVER - 5000204829×1
- BUSHING - 5000202006×4
- CLAMP-PANEL - 5000204833×2
- NUT-HEX,M5 8,ISO4032 - 5000010879×4
- SCREW M6 X 12 SOC.HD. - 5000011554×7
- WASHER B6.4 FLAT - 5000010624×7
- SCREW-COUNTERSUNK - 5000125201×4
- SCREW M6 X 12 FLAT HD. - 5000013479×1
- COVER-PANEL - 5000204830×1
- NUT M6 8,HEX - 5000010880×1
- NUT-SPEED - 5000202586×4
- 195000211290Not stockedDecoder×1
- SCREW-SOCKET HEAD - 5000204550×3
- WIRE HARNESS - 5000205207×1
- CLAMP - 5000205206×1
- SCREW M6 X 12 SOC.HD. - 5000011554×1
- SCREW M10 X 20 SOC.HD. - 5000011536×2
- 255000220047Not stockedTransmitter×1
- CABLE-SPIRAL - 5000202588×1
- CLAMP-CORD,STRAIN RELIEF,BLACK - 5000089676×2
- ADAPTER-BUSHING,CORD - 5000088821×2
- CONNECTOR-COUPLING - 5000116889×2
