Vibratory Plate DPU6555Hehapn

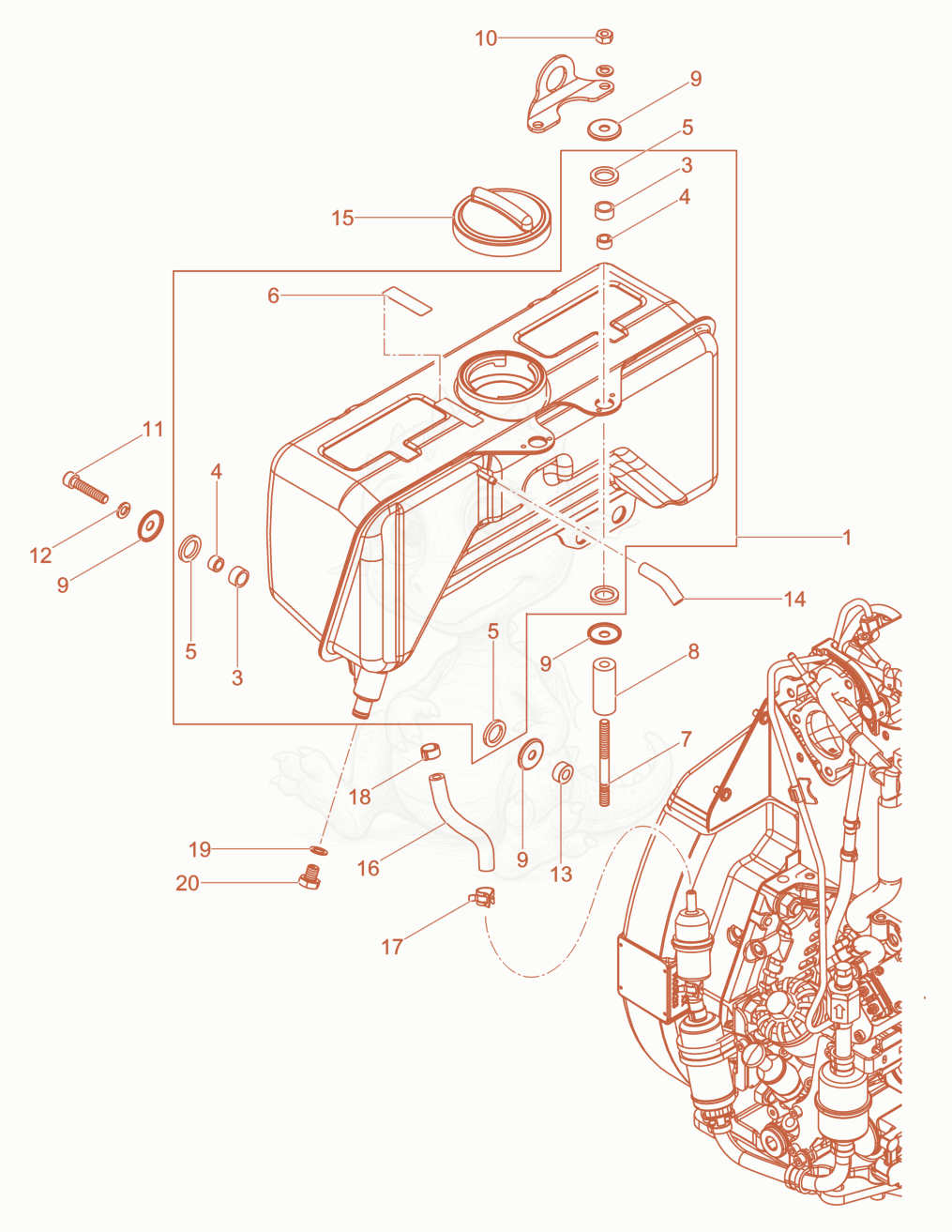

DPU6555HEHAPN Fuel tank Diagram
- Fuel Tank - 5100062320×1
- SLEEVE-RUBBER - 5000095357×6
- BUSHING - 5000095356×6
- WASHER-RUBBER - 5000095355×12
- 65100078013Not stockedLabel×1
- STUD M8 X 75 - 5000031063×2
- BUSHING - 5000095082×2
- 95100062321Not stockedWasher×12
- NUT M8 8 A3C - 5000151379×2
- SCREW M8X40,SOC.HD. - 5000207613×4
- WASHER-SPRING - 5000151218×4
- BUSHING - 5000099786×4
- HOSE-FUEL LINE 5 X 50 - 5000207574×1
- CAP-TANK 60MM DIA - 5000099523×1
- 165100062323Not stockedFuel Pipes×1
- 175100062267Not stockedClamp×1
- CLAMP-HOSE 16.0 - 5000203655×1
- 195000104763Not stockedWasher×1
- PLUG-DRAIN - 5000202413×1
