Vibratory Plate DPU 5545Heap

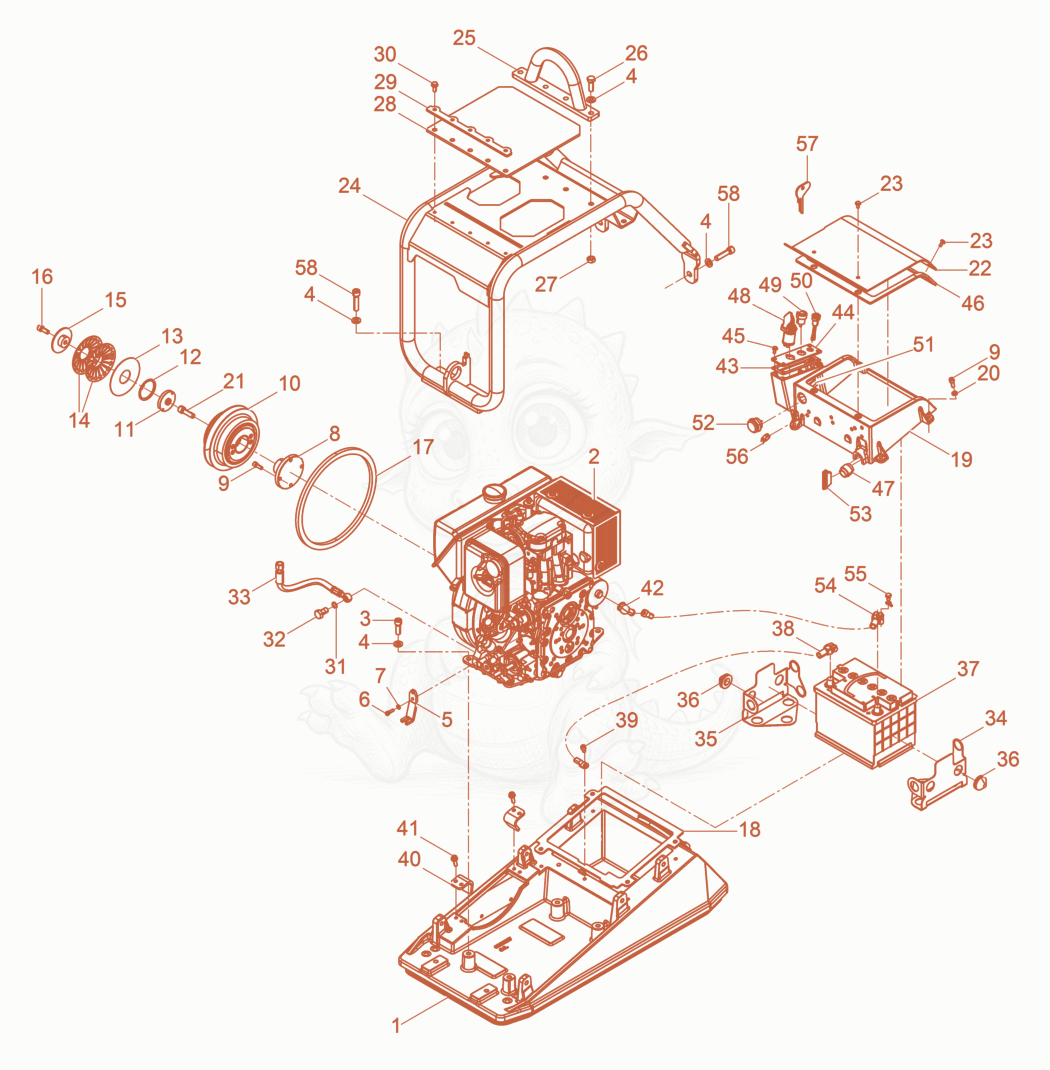

DPU5545HEAP Upper Mass cpl. Diagram

Exploded parts diagram of the Upper Mass cpl. of a Wacker Neuson DPU5545HEAP, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000220228Price
    Upper mass - 5000220228×1
  • 25000220375Not stocked
    Diesel engine×1
  • 35000011528Price
    SCREW M12 X 35 SOC.HD. - 5000011528×4
  • 45000021465Price
    WASHER-LOCK HS12,HIGH TENSION - 5000021465×12
  • 55000103893Not stocked
    Angle×1
  • 65000011551Price
    SCREW M6 X 20 SOC.HD. - 5000011551×2
  • 75000010624Price
    WASHER B6.4 FLAT - 5000010624×2
  • 85000103129Price
    Flange - 5000103129×1
  • 95000012629Price
    SCREW M8 X 22 SOC.HD. - 5000012629×8
  • 105000102208Not stocked
    Coupling cpl.×1
  • 115000058546Price
    DISC-CENTRIFUGAL CLUTCH - 5000058546×1
  • 125000021147Price
    RET.RING-INT 60MMX2MM, - 5000021147×1
  • 135000048273Price
    GASKET-RUBBER - 5000048273×1
  • 145000048374Price
    SPRING-BELLEVILLE TYPE - 5000048374×2
  • 155000058547Price
    PLATE-CLUTCH FACE - 5000058547×1
  • 165000011534Price
    SCREW M10 X 30 SOC.HD. - 5000011534×1
  • 175000103104Not stocked
    Four edge cord×1
  • 185000220232Price
    Gasket - 5000220232×1
  • 195000220187Not stocked
    Battery protection×1
  • 205000010742Not stocked
    Washer×4
  • 215000011527Price
    SCREW M12 X 40 SOC.HD. - 5000011527×1
  • 225000220362Price
    BATTERY COVER CPL. - 5000220362×1
  • 235000210194Price
    SCREW-CORRUGATED HD. - 5000210194×4
  • 245000220235Price
    FRAME-PROTECTIVE - 5000220235×1
  • 255000103930Price
    HOOK-LIFTING - 5000103930×1
  • 265000011422Price
    SCREW M12 X 35 HX.HD. - 5000011422×4
  • 275000010884Price
    NUT M12 8,HEX - 5000010884×4
  • 285000102442Price
    COVER PLATE - 5000102442×1
  • 295000102443Price
    MOUNT-STRIP - 5000102443×1
  • 305000105944Price
    SCREW M8 X 20-ST, D7500 DE - 5000105944×5
  • 315000012624Price
    SEAL-RING 14 X 18 - 5000012624×2
  • 325000043201Price
    SCREW-HOLLOW 10-3 - 5000043201×1
  • 335000104074Price
    TUBE-OIL DRAIN - 5000104074×1
  • 345000124970Not stocked
    Battery protector left×1
  • 355000124969Not stocked
    Battery protector right×1
  • 365000124255Price
    SHOCK ABSORBER - 5000124255×16
  • 375000043134Not stocked
    Battery×1
  • 385000220316Price
    Mass line - 5000220316×1
  • 395000013574Price
    SCREW M8X12 SOC.HD - 5000013574×2
  • 405000220334Price
    Angle - 5000220334×2
  • 415000129420Price
    SCREW-CAP,SOCKET HEAD - 5000129420×4
  • 435000216678Price
    Gasket - 5000216678×1
  • 445000216679Price
    Plate - 5000216679×1
  • 455000210194Price
    SCREW-CORRUGATED HD. - 5000210194×4
  • 465000220233Price
    Gasket - 5000220233×1
  • 475000104080Not stocked
    Gland×1
  • 485000220116Price
    ignition starter switch - 5000220116×1
  • 495000044682Price
    SWITCH-PUSH BUTTON - 5000044682×1
  • 505000129797Price
    LIGHT-IGNITION PILOT LED - 5000129797×1
  • 515000220395Price
    Edge protection - 5000220395×1
  • 525000220234Price
    SIGNAL-ACCOUSTIC - 5000220234×1
  • 535000220314Price
    CABLE-HARNESS - 5000220314×1
  • 545000220317Price
    STRAP-POSITIVE POLE - 5000220317×1
  • 555000012360Price
    SCREW M8 X 12 HX.HD. - 5000012360×1
  • 565000047388Price
    CABLE-TIE 7.6X356MM,NO MNT,BLK - 5000047388×4
  • 575000220118Price
    key - 5000220118×1
  • 585000013569Not stocked
    Cheese head screw×4
