DPU 5045He-VIBROPLATE

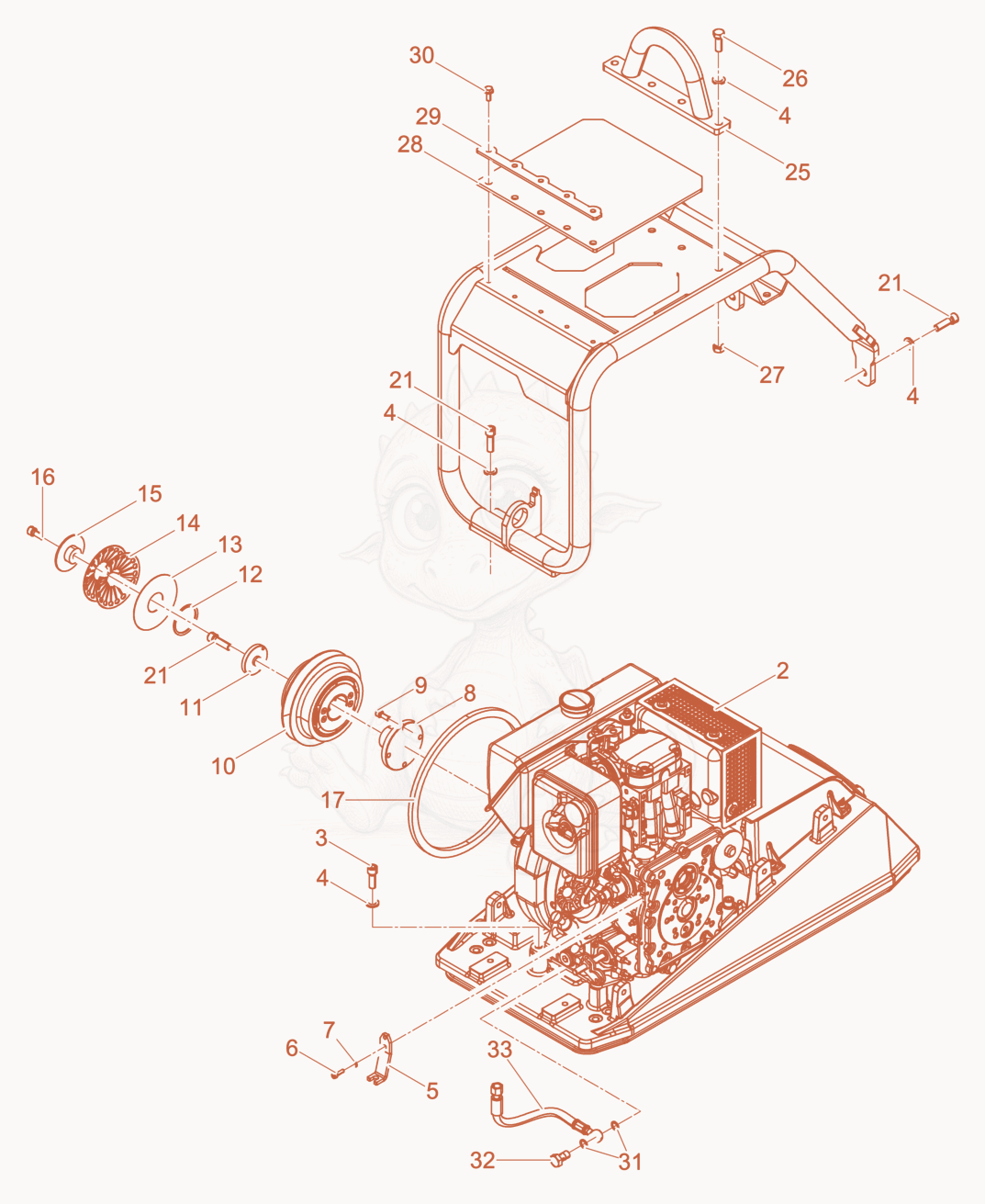

DPU5045HEUS Upper Mass cpl. Diagram

Exploded parts diagram of the Upper Mass cpl. of a Wacker Neuson DPU5045HEUS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25000220375Not stocked
    Diesel engine×1
  • 35000011528Price
    SCREW M12 X 35 SOC.HD. - 5000011528×4
  • 45000021465Price
    WASHER-LOCK HS12,HIGH TENSION - 5000021465×12
  • 55000103893Not stocked
    Angle×1
  • 65000011551Price
    SCREW M6 X 20 SOC.HD. - 5000011551×2
  • 75000010624Price
    WASHER B6.4 FLAT - 5000010624×2
  • 85000103129Price
    Flange - 5000103129×1
  • 95000012629Price
    SCREW M8 X 22 SOC.HD. - 5000012629×4
  • 105000102208Not stocked
    Coupling cpl.×1
  • 115000058546Price
    DISC-CENTRIFUGAL CLUTCH - 5000058546×1
  • 125000021147Price
    RET.RING-INT 60MMX2MM, - 5000021147×1
  • 135000048273Price
    GASKET-RUBBER - 5000048273×1
  • 145000048374Price
    SPRING-BELLEVILLE TYPE - 5000048374×2
  • 155000058547Price
    PLATE-CLUTCH FACE - 5000058547×1
  • 165000011535Price
    SCREW M10 X 25 SOC.HD. - 5000011535×1
  • 175000103104Not stocked
    Four edge cord×1
  • 215000011527Price
    SCREW M12 X 40 SOC.HD. - 5000011527×5
  • 245000220235Price
    FRAME-PROTECTIVE - 5000220235×1
  • 255000103930Price
    HOOK-LIFTING - 5000103930×1
  • 265000011422Price
    SCREW M12 X 35 HX.HD. - 5000011422×4
  • 275000010884Price
    NUT M12 8,HEX - 5000010884×4
  • 285000102442Price
    COVER PLATE - 5000102442×1
  • 295000102443Price
    MOUNT-STRIP - 5000102443×1
  • 305000105944Price
    SCREW M8 X 20-ST, D7500 DE - 5000105944×5
  • 315000012624Price
    SEAL-RING 14 X 18 - 5000012624×2
  • 325000043201Price
    SCREW-HOLLOW 10-3 - 5000043201×1
  • 335000104074Price
    TUBE-OIL DRAIN - 5000104074×1
