Vibroplate DPU5045

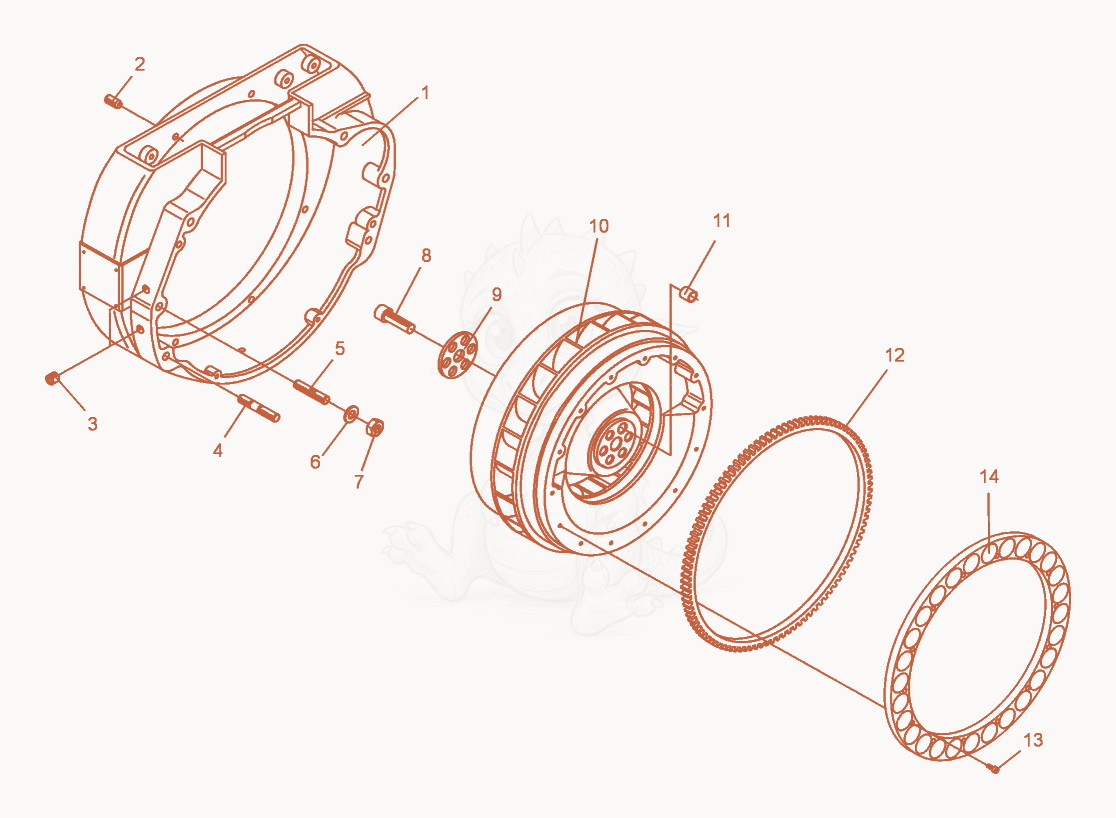

DPU5045H Fly Wheel Diagram

Exploded parts diagram of the Fly Wheel of a Wacker Neuson DPU5045H, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000104425Price
    HOUSING-FLYWHEEL - 5000104425×1
  • 25000017544Price
    ROD-THRD M10X10-45H - 5000017544×8
  • 35000011056Price
    PLUG M12 X 1.5 - 5000011056×2
  • 45000104426Not stocked
    Stud bolt×1
  • 55000010933Not stocked
    Stud bolt×3
  • 65000010621Price
    WASHER B10.5 FLAT - 5000010621×3
  • 75000010883Price
    NUT M10 8,HEX - 5000010883×4
  • 85000043811Price
    SCREW M10 X 40 10.9.BK - 5000043811×6
  • 95000104429Price
    DISK - 5000104429×1
  • 105000129027Price
    FLYWHEEL - 5000129027×1
  • 115000104427Price
    SLEEVE - 5000104427×1
  • 125000104430Price
    GEAR-CROWN - 5000104430×1
  • 135000129026Price
    SCREW M4X16 A3C-8.8,CH.HD. - 5000129026×1
  • 145000129025Price
    RING-MAGNETIC - 5000129025×1
